1990 Mazda MPV PCM/ECM Replacement Guide
The PCM/ECM in the 1990 Mazda MPV controls engine timing, fuel delivery, and sensor data. A malfunction can lead to rough idle, stalling, or complete loss of power, making the vehicle unsafe to drive.
Quick Summary
- The PCM/ECM is a critical control unit for engine operation.

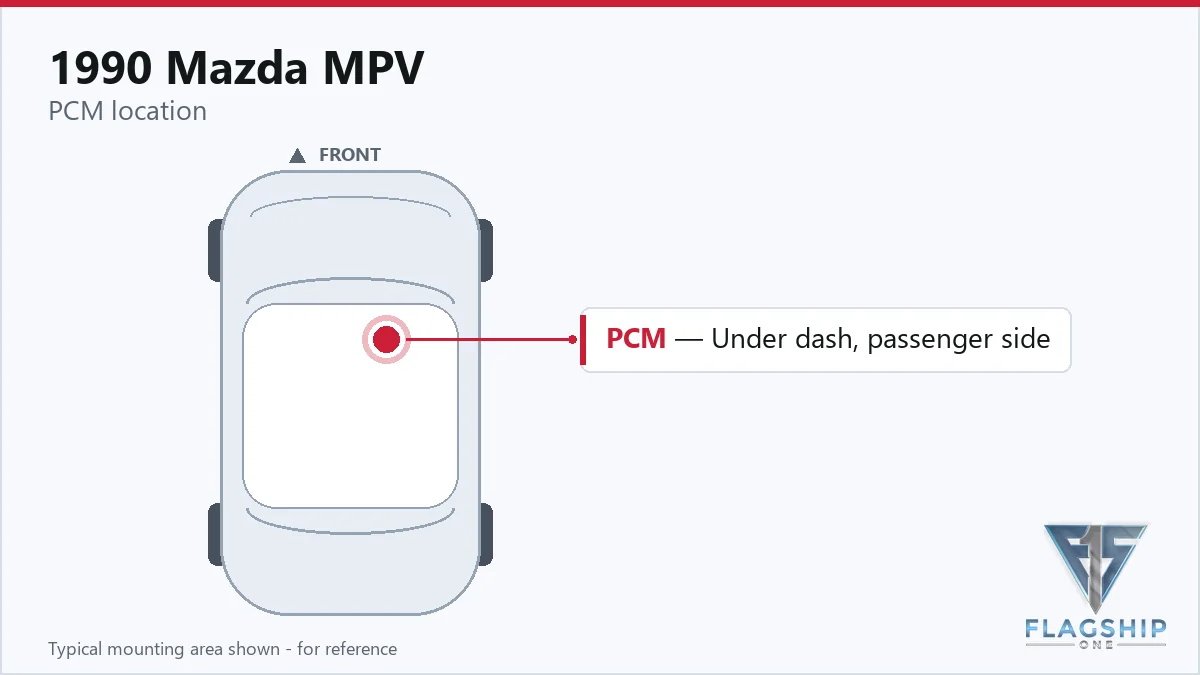

- It sits beneath the passenger-side dashboard.
- Replacing it restores proper engine management.
- Flagship One units come pre‑programmed for your VIN.
- Routine maintenance of connectors keeps it reliable.
When a 1990 Mazda MPV behaves oddly—stalling, misfiring, or refusing to start—one often overlooked culprit is the PCM/ECM. This module is the brain of the engine, interpreting sensor inputs and commanding actuators to keep the vehicle running smoothly. Understanding where it sits, how it operates, and how to replace it can save you time and prevent costly diagnostic errors. By following this guide you’ll learn the exact location of the PCM/ECM, the steps to remove and install a new unit, and the factory programming steps that are already handled by Flagship One. You’ll also see how to spot early warning signs of failure and keep the new unit running for years to come.
What the ECM Does in a 1990 Mazda MPV
The PCM/ECM in the 1990 Mazda MPV is responsible for translating sensor data into engine control actions, such as fuel injection timing and ignition spark. It processes inputs from the crankshaft position sensor, camshaft sensor, oxygen sensors, and throttle position sensor, then calculates the appropriate fuel and spark timing to maintain efficient combustion. Failure of this module may result in uneven idle, stalling under load, or a complete loss of engine power. Since the PCM/ECM also manages communication with the vehicle’s diagnostic system, a fault can cause the scan tool to report no communication. 1990 Mazda MPV PCM replacement is essential for restoring normal engine operation.
What Replacing the ECM Involves
How to Reach the ECM on the 1990 Mazda MPV
- Disconnect the negative battery cable.
- Remove the two nuts and the PCM cover.
- Remove the PCM from the bracket by pulling the unit outward.
- Remove the right side scuff plate and right front side trim.
- Lift up the front mat.
- Remove the protector cover.
- Unplug the wiring harness connector from the control module.
- Loosen the mounting fasteners and remove the PCM/ECM from the vehicle.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
Programming Requirements After Replacement
After the new PCM/ECM is installed, the vehicle’s factory procedure would normally require a manual re‑programming step to align the module with the vehicle’s VIN and specific calibration data. Flagship One units arrive VIN‑programmed, so this step is already completed. The new unit will communicate immediately with the engine control system and can be verified using a compatible scan tool. VIN‑programmed replacement unit ensures that the module is ready to operate without additional factory steps.
Symptoms of a Failing ECM
A failing PCM/ECM in a 1990 Mazda MPV can manifest in several ways. You may notice that the engine stalls when idling or during acceleration, or that it refuses to start altogether. The vehicle may also exhibit rough idle, misfires, or unusual engine behavior such as delayed throttle response. When the PCM/ECM is not communicating properly, a scan tool will display no data from the module. If a fault code appears, it might read as a generic powertrain issue. A common code that may surface in this situation is PCM/ECM Failure.
Protecting the ECM in Your 1990 Mazda MPV
- Keep the charging system clean and ensure the battery is charged.
- Inspect and clean the PCM/ECM connector pins regularly.
- Avoid jump‑starting the vehicle with excessive voltage spikes.
- Address any diagnostic codes promptly to prevent further damage.
- Check that the connector seals remain intact to prevent moisture ingress.
- Maintain a clean engine bay to reduce heat buildup around the PCM/ECM.
Frequently Asked Questions
How long does the PCM/ECM replacement take on a 1990 Mazda MPV?
The replacement is a moderate labor task that typically requires a few hours. The main work involves removing interior panels, disconnecting battery cables, and installing the new unit. Because the new PCM/ECM is pre‑programmed, no additional tuning is needed.
Will a new PCM/ECM resolve stalling issues on my 1990 Mazda MPV?
If the stalling is caused by a faulty PCM/ECM, a new unit will restore proper engine management. However, stalling can also result from sensor failures or fuel delivery problems, so a complete diagnostic check is recommended.
Is it necessary to re‑program the PCM/ECM after installation?
No. Flagship One units come pre‑programmed for the vehicle’s VIN, eliminating the need for a factory re‑programming step. The module will communicate immediately after installation.
What maintenance is required for the PCM/ECM after replacement?
Routine maintenance involves checking the connector pins for corrosion and ensuring the battery is charged. No special software updates are needed unless the vehicle’s factory firmware changes.
Can a refurbished PCM/ECM work in my 1990 Mazda MPV?
A refurbished unit that is certified to the same specifications can function properly. It must be a VIN‑programmed replacement to match the vehicle’s unique calibration data.
Replacing the PCM/ECM in your 1990 Mazda MPV can restore reliable operation whether you choose a professional repair shop or a refurbished replacement unit. The new module will bring back smooth idling, proper fuel management, and full communication with diagnostic tools, keeping your vehicle safe and efficient.
Flagship One stocks a refurbished, VIN-programmed ECM for the 1990 Mazda MPV with a lifetime warranty, free shipping and no core charge. The full Mazda MPV module lineup covers other engine configurations as well.
Final Thoughts
If your 1990 Mazda MPV is showing signs of engine trouble, consider a PCM/ECM replacement. A new, pre‑programmed unit can eliminate many performance issues and get you back on the road with confidence.
