2019 Nissan Kicks PCM/ECM Failure Symptoms and Replacement Guide
The powertrain control module (PCM) in the 2019 Nissan Kicks is the main computer that manages engine functions like fuel injection, ignition timing, and emissions. Failure can cause drivability issues, no-start, and trigger diagnostic trouble codes such as P0605.
Quick Summary
- The PCM and ECM are essentially the same module in this vehicle; replacement takes 1.1 hours according to factory labor times.
- After replacement, a PCM relearn (0.5 hours), ECM reset (0.3 hours), and ECM relearn (0.5 hours) are required.
- Code P0605 indicates an internal control module fault that often requires module replacement.
- A VIN-programmed unit from Flagship One eliminates the need for factory programming steps after installation.
- Proper diagnosis is essential before replacing the module to avoid unnecessary costs.
If your 2019 Nissan Kicks has a check engine light, refuses to start, or runs poorly, the powertrain control module (PCM) or engine control module (ECM) may be at fault. These terms are often used interchangeably for this vehicle; the module is the central computer that controls engine operation, transmission shifting, and emissions systems. When it fails, you may experience a range of drivability problems that can leave you stranded. This guide explains what the PCM/ECM does in your Kicks, common failure symptoms, the replacement process with factory labor times, and the programming steps required after installation. You will also learn about a convenient option that can save time and effort. Understanding these details helps you make an informed decision about repairing or replacing the module, whether you are a DIY owner or working with a shop. The goal is to provide clear, factual information so you can get your vehicle back on the road with confidence.
What the PCM Does in a 2019 Nissan Kicks
The powertrain control module (PCM) in the 2019 Nissan Kicks is the vehicle’s primary engine management computer. It receives data from sensors throughout the engine and drivetrain, then adjusts fuel delivery, ignition timing, variable valve timing, and transmission shift points to optimize performance, fuel economy, and emissions. The module also monitors system health and stores diagnostic trouble codes when it detects a fault. In the Kicks, the PCM is integrated with the engine control module (ECM) functions, so the terms are often used synonymously. This module is critical for the engine to run correctly; without it, the vehicle will not start or will run in a degraded limp-home mode. When the module fails internally, it can cause erratic behavior, no-start conditions, or trigger codes like P0605. If you need to replace it, you should consider replacement engine computers for the Kicks that are pre-programmed to match your vehicle’s VIN, which simplifies the installation process. The module’s location in the engine bay makes it accessible for replacement, but the factory programming steps after installation require specialized equipment or a trip to the dealer.

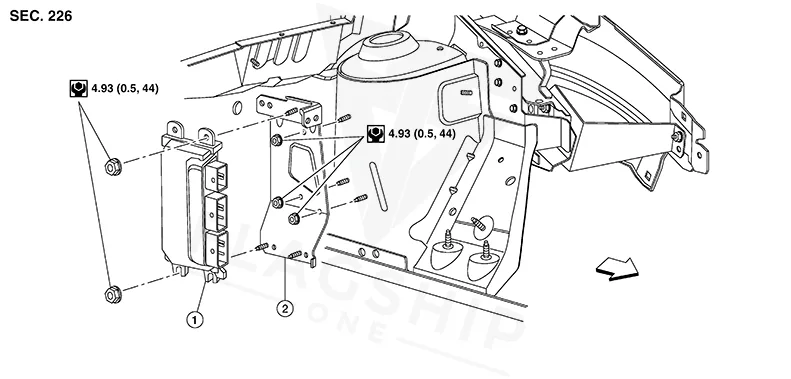

Where the PCM Is Located and What Replacement Involves
The PCM/ECM in the 2019 Nissan Kicks is typically mounted in the engine compartment, often near the battery or on the firewall. Access may require removing the air intake duct or other components to reach the module. The factory book time for removing and replacing the module is 1.1 hours. The procedure involves disconnecting the negative battery cable, unplugging the wiring harness connectors, and unbolting the module from its bracket. Care must be taken to avoid damaging the connectors or the module itself. After installation, the system requires a series of programming steps to synchronize the module with the vehicle’s security and engine management systems. No torque specifications are provided in the available data, but standard practice is to tighten mounting bolts securely without over-torquing.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.1 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.1 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the PCM/ECM in the 2019 Nissan Kicks, the factory procedure requires a PCM relearn (0.5 hours), an ECM reset (0.3 hours), and an ECM relearn (0.5 hours). These steps are necessary to calibrate the module to the vehicle’s specific engine and transmission parameters, and to synchronize the immobilizer system. Without these steps, the engine may not start or may run poorly. Instead of performing these steps yourself, you can order a VIN-programmed replacement unit from Flagship One that arrives ready to install. Their units are pre-loaded with the correct software for your VIN, so the factory relearn and reset procedures are already completed. This saves you the labor time and the need for specialized diagnostic equipment. Simply install the module, reconnect the battery, and the vehicle should start and run normally.
Symptoms of a Failing PCM
When the PCM/ECM begins to fail in the 2019 Nissan Kicks, you may notice a variety of symptoms. The engine may crank but not start, or it may stall unexpectedly while driving. You might experience rough idling, misfires, or a noticeable loss of power. The check engine light will likely illuminate, and a scan tool may retrieve diagnostic trouble codes. One common trouble code is internal control module fault which indicates an internal processor error within the module itself. Other symptoms include erratic transmission shifting, poor fuel economy, or the vehicle entering a limp-home mode that limits speed and performance. In some cases, the scan tool may fail to communicate with the module entirely, suggesting a complete failure. These symptoms can also be caused by other issues like wiring problems or sensor failures, so proper diagnosis is essential before replacing the module.
Module Trouble Codes on the 2019 Nissan Kicks
The following diagnostic trouble code is specific to the PCM/ECM internal functions for the 2019 Nissan Kicks. This code indicates a fault within the module itself and often requires module replacement.
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Protecting the PCM in Your 2019 Nissan Kicks
- Keep the battery and charging system in good condition; low or unstable voltage can stress the PCM/ECM.
- Clean and tighten all ground connections and wiring harness connectors to ensure reliable electrical contact.
- Avoid jump-starting the vehicle with a running donor car; voltage spikes can damage the module.
- Address any diagnostic trouble codes promptly to prevent further damage to the module or other components.
- Inspect the module’s connector seals for cracks or moisture intrusion, and replace if necessary.
- Use dielectric grease on connectors to prevent corrosion and maintain a good electrical connection.
Frequently Asked Questions
What does code P0605 mean on a 2019 Nissan Kicks?
Code P0605 is a manufacturer-specific diagnostic trouble code that indicates an internal control module read-only memory (ROM) error. This typically means the PCM/ECM has a hardware fault and needs to be replaced. It is not a sensor or wiring issue.
Can I drive my 2019 Nissan Kicks with a bad PCM/ECM?
Driving with a failing PCM/ECM is not recommended. The vehicle may stall unexpectedly, lose power, or fail to start. In some cases, it may enter a limp-home mode that limits speed. Continuing to drive could leave you stranded or cause further damage.
How long does it take to replace the PCM/ECM on a 2019 Nissan Kicks?
According to factory labor times, removing and replacing the module takes 1.1 hours. Additional time is needed for the PCM relearn (0.5 hours), ECM reset (0.3 hours), and ECM relearn (0.5 hours) if performed separately. A VIN-programmed unit can eliminate the programming steps.
Do I need to reprogram the PCM/ECM after replacing it on a 2019 Nissan Kicks?
Yes, the factory procedure requires a PCM relearn, ECM reset, and ECM relearn to synchronize the module with the vehicle’s systems. However, if you purchase a VIN-programmed replacement unit from Flagship One, these steps are already completed, so no additional programming is needed.
What are common symptoms of a failing PCM/ECM in a 2019 Nissan Kicks?
Common symptoms include no-start, stalling, rough idle, misfires, loss of power, erratic transmission shifting, and the check engine light illuminating. A scan tool may show code P0605 or other communication errors. Proper diagnosis is important to rule out other causes.
When your 2019 Nissan Kicks needs a new PCM/ECM, you have two main options: have a shop perform the replacement and factory programming, or install a refurbished unit yourself. A refurbished module from Flagship One is a cost-effective alternative that comes pre-programmed to your VIN, saving you the labor and equipment costs of the factory relearn and reset procedures. This option is especially practical for DIY owners or those looking to minimize downtime.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2019 Nissan Kicks with a lifetime warranty, free shipping and no core charge. The full Nissan Kicks module lineup covers other engine configurations as well.
Final Thoughts
The PCM/ECM in your 2019 Nissan Kicks is a vital component that controls engine and transmission operation. Recognizing symptoms like no-start, stalling, or code P0605 can help you diagnose a failing module. With factory labor times of 1.1 hours for replacement and additional programming steps, a VIN-programmed unit from Flagship One simplifies the process and gets you back on the road faster.
