2018 Nissan Titan Powertrain Control Module Replacement Guide
The Powertrain Control Module in the 2018 Nissan Titan manages engine timing, fuel delivery, and transmission shift logic. When it fails, the vehicle can exhibit rough idling, loss of power, or even a no‑start condition.
Quick Summary
- PCM replacement takes 3.0 hours of labor.
- Relearning the module requires 0.5 hours.
- The module controls engine and transmission functions.
- Failure can trigger misfire or stalling codes.
- Replacement modules are VIN‑programmed by Flagship One.
If you own a 2018 Nissan Titan and have noticed erratic engine performance, a stalling or a sudden loss of power, the Powertrain Control Module may be the culprit. This article explains what the PCM does in your truck, why it matters for everyday driving, and how a professional replacement can restore reliable operation. By understanding the role of the PCM, the steps required for a proper swap, and the post‑install programming, you’ll be better prepared to make an informed decision about whether to repair or replace your module.
What the PCM Does in a 2018 Nissan Titan
The Powertrain Control Module in a 2018 Nissan Titan is the brain that coordinates the engine and transmission. It processes sensor data to adjust fuel injection, ignition timing, and shift points. When the PCM malfunctions, the engine may misfire, stall, or the transmission may shift erratically. replacement powertrain control module for the 2018 Nissan Titan The module’s health is vital for smooth acceleration, fuel efficiency, and compliance with emissions standards. A failing PCM can also trigger diagnostic trouble codes that prevent the vehicle from starting or cause a check‑engine light to illuminate.
Where the PCM Is Located and What Replacement Involves
The PCM is located under the dashboard, on the passenger side, near the steering column. Removing the old unit requires disconnecting the battery, detaching the harness, and removing the module from its mounting bracket. Replacing it involves installing the new module, reconnecting the harness, and re‑torquing the mounting bolts to the specified specification. The entire process is estimated to take 3.0 hours of labor, after which a 0.5‑hour relearn procedure ensures the new unit is calibrated to your vehicle’s parameters.
How to Reach the PCM on the 2018 Nissan Titan
- Disconnect the battery or batteries negative terminal(s).
- Remove the cowl top extension.
- Remove the front wheel and tire (RH) using power tool.
- Remove the front fender protector (RH).
- Position the relay box and IDPM/ER aside.

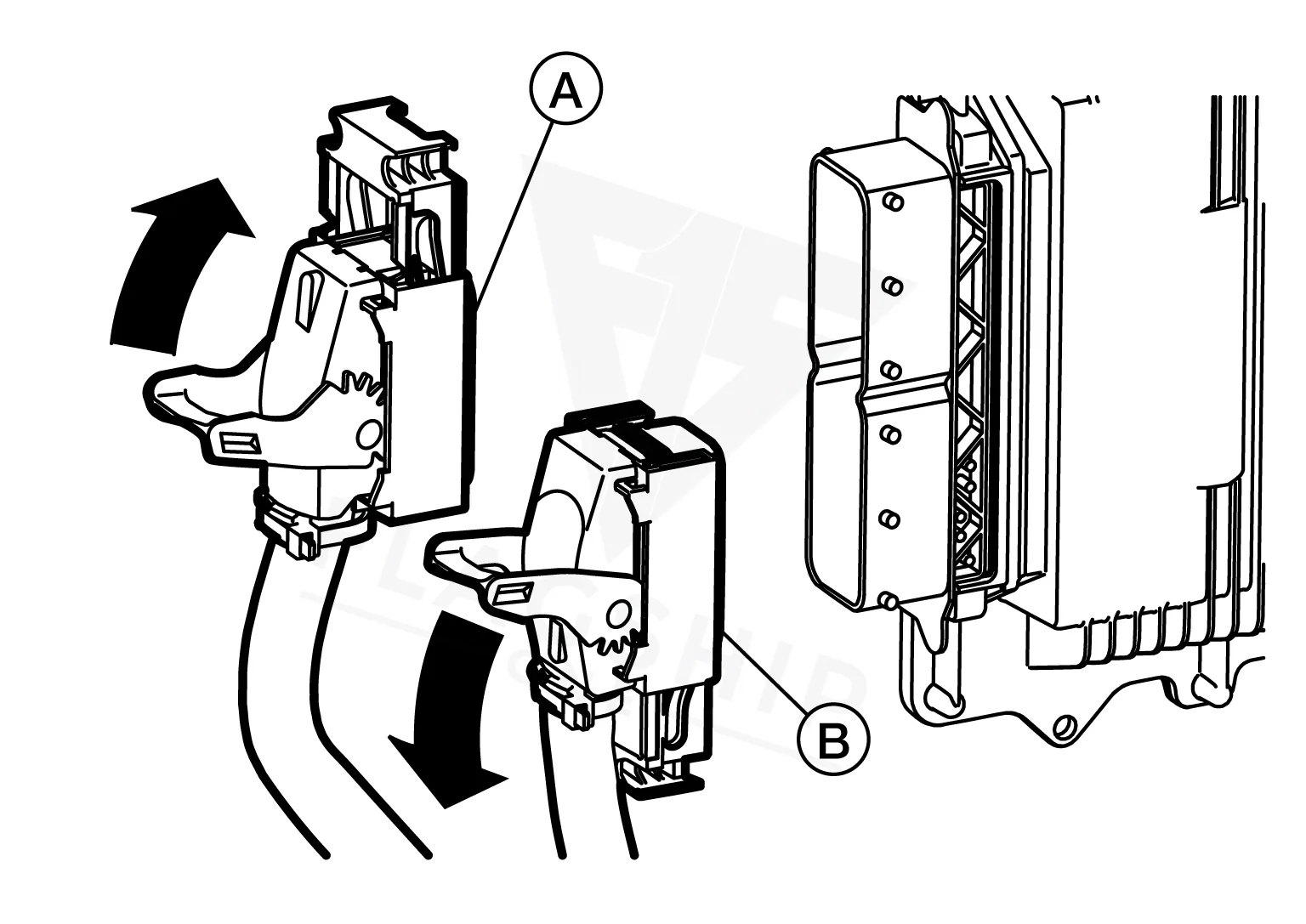

- Disconnect harness connector from the ECM.
- Remove nuts and ECM from ECM bracket.
- Remove bolts and ECM bracket from vehicle (if necessary).
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 3.0 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 3.0 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the new Powertrain Control Module is installed, a relearn procedure of 0.5 hours is normally required to re‑calibrate the engine and transmission settings. Because Flagship One units arrive VIN‑programmed, the relearn step is already complete, saving you time and reducing the chance of a mis‑calibrated module. VIN‑programmed replacement unit The factory procedure would otherwise involve a diagnostic tool to update the module with vehicle‑specific data.
Symptoms of a Failing PCM
Common indicators that the Powertrain Control Module may be failing include a sudden loss of power, rough idling, stalling during acceleration, or a check‑engine light that stays on after a reset. In some cases, the vehicle may not start at all, or the transmission may shift improperly. The presence of trouble code P0605 in your 2018 Nissan Titan signals a communication issue within the PCM’s internal network, which is often related to a faulty module. communication error within the PCM Addressing these symptoms promptly can prevent further damage to the engine or transmission.
Module Trouble Codes on the 2018 Nissan Titan
The codes below point to the PCM itself rather than to a sensor or circuit it monitors. Each one links through to its full diagnostic guide.
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Protecting the PCM in Your 2018 Nissan Titan
- Keep the battery’s charging system in good health to avoid voltage spikes.
- Inspect and clean all ground connections on the PCM.
- Avoid using a jump‑starter that can send too much voltage to the module.
- Address any diagnostic trouble codes as soon as they appear.
- Check the connector seals for moisture or corrosion.
- Ensure the module’s environment stays within the specified temperature range.
Frequently Asked Questions
What should I do if my 2018 Nissan Titan shows a check‑engine light after a PCM replacement?
If the check‑engine light remains, use a diagnostic scanner to read any new codes. The most common new code is P0605, indicating a communication error. A professional can re‑program the module or check the wiring if the code persists.
How long does it take to replace the PCM in a 2018 Nissan Titan?
The labor time for removing and installing the PCM is about 3.0 hours. An additional 0.5 hours is needed for the relearn procedure, though this step is handled automatically with a VIN‑programmed unit.
Will a new PCM improve my fuel economy?
A properly calibrated PCM can optimize fuel delivery, potentially improving fuel economy. However, the improvement is usually modest and depends on driving habits and maintenance.
Do I need to replace both the PCM and the ECM in my 2018 Nissan Titan?
The PCM and ECM are distinct modules. If the PCM is failing, the ECM may still function correctly. Replacement of the PCM alone is typically sufficient unless the ECM also shows faults.
Can I buy a refurbished PCM for my 2018 Nissan Titan?
Yes, refurbished units are available. They must be VIN‑programmed and tested to match your vehicle’s specifications. A professional installation ensures correct wiring and calibration.
Whether you opt for a fresh replacement or a refurbished unit, a professional installation guarantees that your 2018 Nissan Titan’s Powertrain Control Module is correctly mounted and calibrated. By choosing a solution that fits your needs, you can reduce downtime and restore reliable performance.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2018 Nissan Titan with a lifetime warranty, free shipping and no core charge. The full Nissan Titan module lineup covers other engine configurations as well.
Final Thoughts
A malfunctioning Powertrain Control Module can cause significant drivability issues in a 2018 Nissan Titan. With a skilled technician and a VIN‑programmed replacement, you can restore confidence to your truck’s performance. Consider your options and act promptly to keep your Titan running smoothly.
