2018 Mazda 6 PCM and ECM Replacement Guide
In the 2018 Mazda 6 the Powertrain Control Module and Engine Control Module manage engine timing, fuel delivery and transmission shift strategy. A failure can disrupt these functions, leading to loss of power, stalling, or diagnostic trouble codes such as P0601.
Quick Summary
- Incorrect PCM installation can affect engine control.
- Factory re‑learn steps are required after any PCM swap.
- Flagship One units arrive pre‑programmed to bypass re‑learn.
- Common fault codes include P0601 and several TCM codes.
When a 2018 Mazda 6 experiences persistent warning lights or unusual performance, the powertrain computers often become the focus of diagnosis. This guide explains what the PCM and ECM do in this model, outlines the labor involved in removal and installation, and clarifies the programming steps the factory expects. By the end, you will understand the essential procedures and how a Flagship One replacement can simplify the process.
What the PCM Does in a 2018 Mazda 6
The Powertrain Control Module in a 2018 Mazda 6 acts as the central brain for engine and transmission coordination, while the Engine Control Module fine‑tunes fuel injection and ignition timing. Together they ensure smooth acceleration and proper shift timing. If either unit is not correctly configured, the vehicle may exhibit erratic behavior or fail to meet emissions standards. replacement powertrain modules for the 2018 Mazda 6 are therefore critical for reliable operation.
Where the PCM Is Located and What Replacement Involves
The PCM and ECM are mounted within the engine compartment, accessible after disconnecting the battery and removing the cover panel. Removal typically requires 0.5 hours for each module, with an additional 0.5 hours for re‑learn procedures and 0.3 hours for an ECM reset. Installation follows the reverse order, ensuring all connectors are seated firmly before securing the units.
How to Reach the PCM on the 2018 Mazda 6
- Remove the M-MDS.
- Disconnect the negative battery terminal.
- Disconnect the PCM connectors.
- Remove clip A from the PCM bracket.
- Remove clip B from the PCM bracket.
- Remove the nuts from the PCM bracket.
- Remove the PCM bracket.
- Remove the PCM.
- Press the PCM connector lever until a click sound is heard.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new module, the factory procedure calls for reading vehicle specification data from the original PCM before replacement, then performing a relearn of the PCM and ECM. Flagship One provides a VIN‑programmed replacement unit that already contains the correct calibration, so those steps are already satisfied. a VIN‑programmed replacement unit eliminates the need for additional configuration.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2018 Mazda 6 include a no‑start condition, intermittent stalling, loss of power during acceleration, and transmission shift anomalies. Diagnostic scans often reveal internal fault codes; for example, the presence of internal processor error indicates a communication problem within the module.
Module Trouble Codes on the 2018 Mazda 6
The following internal trouble code is documented for the 2018 Mazda 6 and may appear when the powertrain computers are compromised:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
Factory Service Bulletins Worth Knowing
Technical Service Bulletin 05-004/19 addresses check‑engine and automatic transmission warning lights triggered by DTCs such as P0842:00, P0847:00, P0872:00, P0877:00, P0780:00, and P1738:00 stored in the TCM memory.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Technical Service Bulletin > Transmission/Transaxle > On-Board Diagnostics > 05-004/19 – Check | — |
Protecting the PCM in Your 2018 Mazda 6
- Maintain a healthy charging system to avoid voltage spikes.
- Ensure all grounds and connector pins are clean and secure.
- Avoid jump‑starting the vehicle unless necessary.
- Promptly address any diagnostic trouble codes that appear.
- Inspect and keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
What happens if the PCM is installed incorrectly in my 2018 Mazda 6?
An incorrect PCM can interfere with engine control, leading to abnormal operation, warning lights, and potential loss of power until the proper module is installed and configured.
Do I need to perform a relearn after replacing the ECM in a 2018 Mazda 6?
Yes, the factory procedure requires a relearn of the ECM after replacement to ensure the vehicle specification information is correctly stored.
Can a Flagship One replacement unit eliminate the need for factory programming on a 2018 Mazda 6?
Flagship One units arrive VIN‑programmed, which typically satisfies the factory’s configuration and relearn requirements for that model.
When the PCM or ECM in your 2018 Mazda 6 needs attention, you can choose a professional repair or a refurbished replacement. A Flagship One unit offers a pre‑programmed solution that aligns with factory specifications, reducing shop time while preserving vehicle performance.

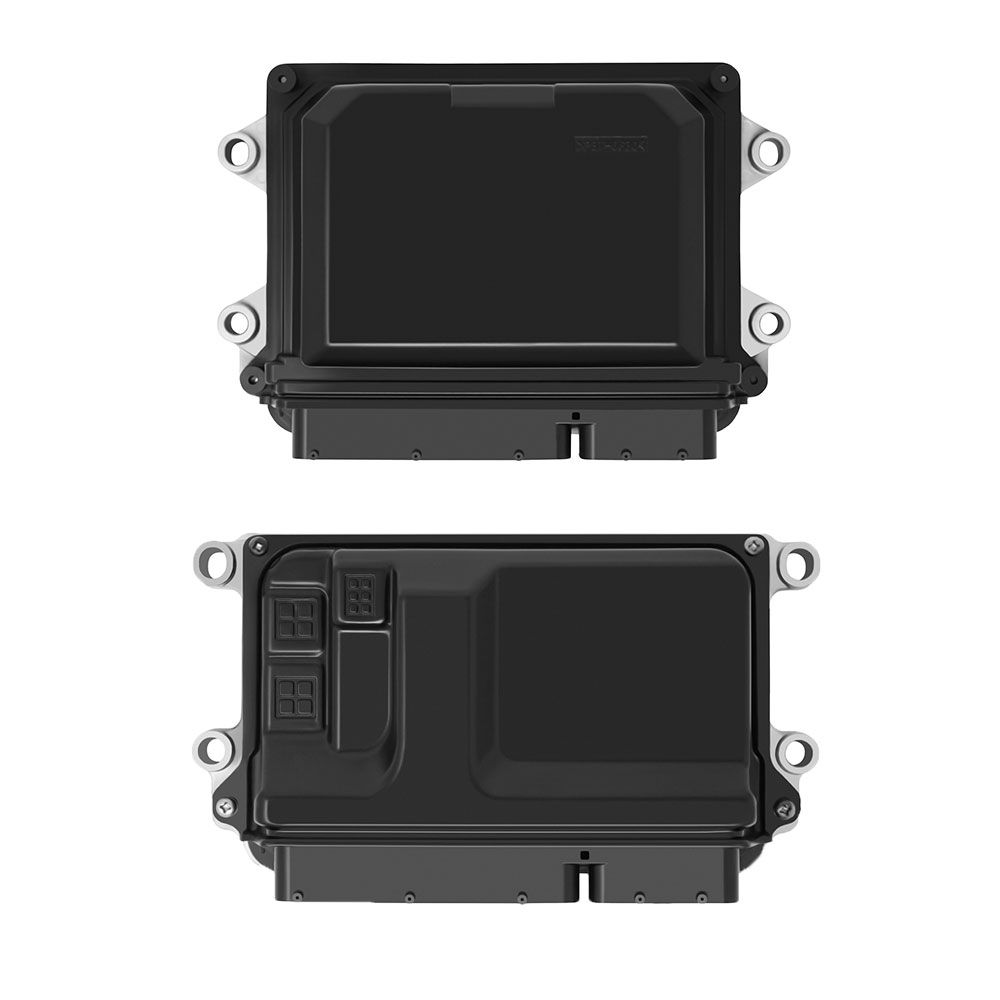

Flagship One stocks a refurbished, VIN-programmed PCM for the 2018 Mazda 6 with a lifetime warranty, free shipping and no core charge. The full Mazda 6 module lineup covers other engine configurations as well.
Final Thoughts
Understanding the role of the PCM and ECM in your 2018 Mazda 6 helps you make informed decisions about repair or replacement. Consider a Flagship One replacement to streamline the process and keep your vehicle running reliably.
