In the 2017 Nissan NV200, the powertrain control module and engine control module manage fuel delivery, ignition timing, and emissions. A failure typically results from internal circuitry loss, leading to loss of engine control and diagnostic communication.
Quick Summary
- PCM removal and reinstall generally requires about 0.9 hours of labor.
- ECM removal and reinstall also averages 0.9 hours of work.
- Both modules need a relearn procedure after installation, adding roughly 0.5 hours each.
When a 2017 Nissan NV200 exhibits symptoms such as stalling, no‑start, or persistent diagnostic trouble codes, the powertrain and engine control modules are likely suspects. Understanding how these computers function, where they sit, and what service steps are required can help you decide between a repair or a replacement. This guide explains the modules’ roles, typical labor times, and what programming is needed so you can approach the repair with confidence.
What the PCM Does in a 2017 Nissan NV200
The powertrain control module in a 2017 Nissan NV200 oversees the coordination of engine and transmission functions, while the engine control module fine‑tunes fuel injection and ignition timing. Together they ensure smooth acceleration, emissions compliance, and fuel efficiency. Proper operation is essential for reliable performance, and any internal fault can disrupt engine management. The vehicle relies on these computers to interpret sensor data and execute control strategies, making them critical to overall drivability. NV200 replacement PCM helps maintain those functions when the original unit fails.
2017 Nissan NV200 Powertrain and
OEM programmed replacements — plug & play, no dealer visit.
Find yours by year, make & model →
Free shipping · Lifetime warranty

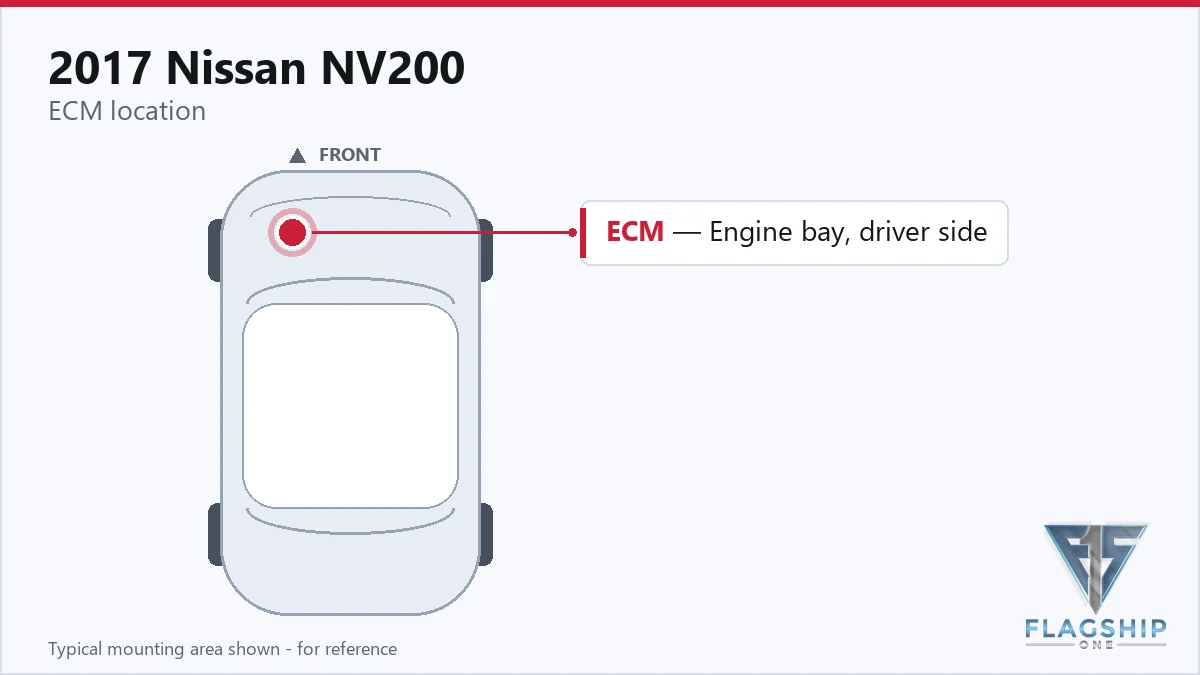

Where the PCM Is Located and What Replacement Involves
The factory removal procedure indicates that the control module is positioned adjacent to the air cleaner assembly. Accessing the unit involves reaching the module from that location, disconnecting the electrical harness, and unbolting the mounting hardware. Replacement follows the same steps in reverse, with the listed labor times of 0.9 hours for both the powertrain and engine control modules. No additional torque specifications are provided, so standard service practices apply.
How to Reach the PCM on the 2017 Nissan NV200
- Remove air cleaner case.
- Disconnect the harness connectors from ECM.
- Remove ECM nuts, and then remove ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new module, the factory service routine requires a relearn process for both the powertrain control module and the engine control module, each taking about 0.5 hours. Flagship One supplies units that arrive already programmed to the vehicle identification number, so the relearn steps are completed before the part reaches your shop. a VIN-programmed replacement unit eliminates the need for on‑site programming.
Symptoms of a Failing PCM
Typical signs of a failing powertrain or engine control module in the 2017 NV200 include a complete no‑start condition, intermittent stalling, rough idle, and loss of communication with diagnostic tools. You may also see transmission shift irregularities or unexpected limp‑mode operation. When the internal fault engine control module internal fault appears, it confirms that the module’s self‑test has detected a hardware issue.
Module Trouble Codes on the 2017 Nissan NV200
The following internal diagnostic trouble codes are documented for the 2017 Nissan NV200’s control modules:
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Protecting the PCM in Your 2017 Nissan NV200
- Maintain a healthy charging system to avoid voltage spikes.
- Inspect and clean ground connections regularly.
- Use proper jump‑start techniques to protect electronic modules.
- Address any stored trouble codes promptly.
- Ensure connector seals remain intact to prevent moisture ingress.
Frequently Asked Questions
What are the typical labor times for replacing the PCM in a 2017 Nissan NV200?
Factory labor guides estimate about 0.9 hours for removal and reinstall of the powertrain control module.
Do I need to perform a relearn after installing a new ECM in my NV200?
Yes, the service procedure includes an engine control module relearn that typically takes around 0.5 hours.
Can a VIN‑programmed replacement eliminate the need for on‑site coding?
Flagship One units are pre‑programmed to the vehicle’s VIN, so the required relearn steps are already completed before installation.
When the PCM or ECM in your 2017 Nissan NV200 requires service, you can choose a repair if the fault is isolated, or install a refurbished replacement that meets factory specifications. Both options restore the vehicle’s control functions, and understanding the labor and programming steps helps you make an informed decision.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2017 Nissan NV200 with a lifetime warranty, free shipping and no core charge. The full Nissan NV200 module lineup covers other engine configurations as well.
Final Thoughts
For owners of a 2017 Nissan NV200, addressing PCM or ECM issues promptly can prevent further drivability problems. Consider a qualified repair or a Flagship One replacement to keep your vehicle performing as designed.
