2017 Mazda 3 PCM/ECM Replacement Guide
In the 2017 Mazda 3 the powertrain control module manages engine timing, fuel delivery and transmission coordination. Failure typically results from incorrect installation or internal faults, leading to loss of control signals and diagnostic trouble codes.
Quick Summary
- Incorrect PCM may interfere with engine control.
- Factory cautions require ignition off and battery disconnect after clearing codes.
- Replacement labor ranges from 0.3 to 0.9 hours per task.
- Programming may be needed if newer calibration exists.
When a 2017 Mazda 3 exhibits persistent engine control warnings, the powertrain control module often becomes the focus of diagnosis. This guide explains what the module does, how to locate and replace it, and what factory procedures follow the installation. By the end, you will understand the steps needed to get your vehicle back to normal operation and what to watch for during the repair.
What the PCM Does in a 2017 Mazda 3
The powertrain control module in a 2017 Mazda 3 acts as the central computer that synchronizes engine and transmission functions, ensuring smooth acceleration and emissions compliance. It processes sensor data, controls fuel injection, ignition timing, and shift logic, making it essential for drivability. 2017 Mazda 3 engine computers are designed to meet strict calibration standards, so any deviation can cause performance issues.
Where the PCM Is Located and What Replacement Involves
The PCM resides within the engine compartment, accessible after disconnecting the negative battery cable. Removal typically involves a 0.9‑hour labor task for R&R, while a simple reset of the engine control module takes about 0.3 hours. Relearn procedures add another 0.5 hours. Ensure the correct module is installed to avoid interference with engine control.
How to Reach the PCM on the 2017 Mazda 3
- Disconnect the negative battery cable.
- Remove the PCM cover.
- Disconnect the PCM connector.
- Remove the PCM assembly from the battery tray.
- Remove the PCM from the PCM bracket.
- Press the PCM connector lever until a click sound is heard.
- Position: fixed.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new module, the factory procedure calls for a reset and, if a later calibration is available, a reprogramming step. Flagship One units arrive pre‑loaded, so a VIN-programmed replacement unit eliminates the need for additional calibration work on the shop floor.
Symptoms of a Failing PCM
Common signs of a failing PCM in this model include a no‑start condition, erratic idle, and transmission shift delays. Diagnostic scans often reveal internal trouble codes such as processor fault which indicate processor communication problems. You may also see loss of scan‑tool communication or intermittent power‑train warning lights.
Module Trouble Codes on the 2017 Mazda 3
The following internal trouble codes have been documented for the 2017 Mazda 3 and may appear during PCM diagnostics.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Technical Service Bulletin 05-004/19 addresses check engine and automatic transmission warning lights linked to multiple TCM codes, including P0842, P0847, P0872, P0877, P0780 and P1738. The bulletin outlines diagnostic steps and recommended repairs for these conditions.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Technical Service Bulletin > Transmission/Transaxle > On-Board Diagnostics > 05-004/19 – Check | — |
Protecting the PCM in Your 2017 Mazda 3
- Maintain a healthy charging system to avoid voltage spikes.
- Inspect and clean ground connections and connector pins regularly.
- Avoid jump‑starting the vehicle whenever possible.
- Address any stored trouble codes promptly.
- Ensure connector seals remain intact to prevent moisture intrusion.
Frequently Asked Questions
What should I do if the PCM shows a P0601 code in my 2017 Mazda 3?
First verify the wiring and connector integrity, then consider resetting the module. If the code persists, replacement with a calibrated unit may be required.
Can I reuse the original PCM after clearing the codes?
Reusing the original unit is possible only if it passes functional testing and no internal fault is present; otherwise a new module is recommended.
How long does a typical PCM replacement take on a 2017 Mazda 3?
Labor times range from about 0.3 hours for a simple reset to 0.9 hours for full removal and installation, depending on the specific task.
When the PCM fails, you can choose a repaired unit or a refurbished replacement that matches the original specifications for your 2017 Mazda 3. Both options restore the vehicle’s control logic, but a refurbished part may offer cost savings while meeting the same performance standards.

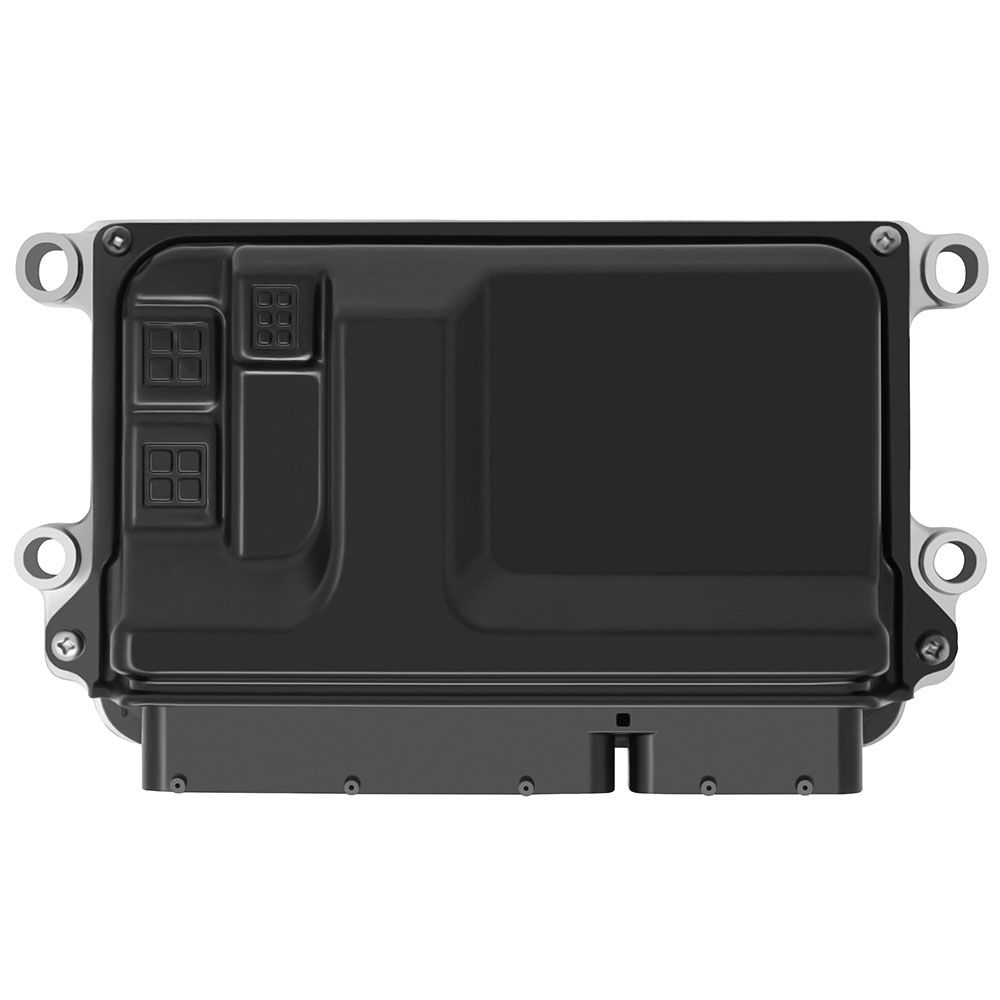

Flagship One stocks a refurbished, VIN-programmed PCM for the 2017 Mazda 3 with a lifetime warranty, free shipping and no core charge. The full Mazda 3 module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM in a 2017 Mazda 3 restores proper engine and transmission coordination. Evaluate your repair options and ensure proper programming to keep your vehicle running smoothly.
