2017 Chevrolet Equinox ECM Replacement: What Owners Should Know
The Engine Control Module (ECM) in your 2017 Chevrolet Equinox manages fuel delivery, ignition timing, and emissions systems. Failures may trigger internal faults, causing erratic engine behavior or a complete no-start condition.
Quick Summary
- ECM replacement typically requires 1.5 hours of labor plus 0.5 hours for relearn procedures.
- Factory procedures mandate reprogramming if the ECM is replaced.
- Static discharge precautions are critical to avoid damaging the new module.
- Flagship One units arrive VIN-programmed, eliminating the need for post-install programming.
- Common failure symptoms include stalling, misfire codes, or scan tool communication loss.
If your 2017 Chevrolet Equinox is experiencing unexplained stalling, a no-start condition, or persistent engine codes, the Engine Control Module (ECM) may be at fault. This critical component governs engine performance by regulating fuel, ignition, and emissions systems. Replacing it involves more than just swapping hardware—factory procedures require careful handling to avoid damage and a mandatory reprogramming step. Understanding the process helps you anticipate labor time, costs, and the benefits of a pre-programmed replacement unit. This guide covers what the ECM does, where it’s located, and how to address common failure symptoms in your Equinox.
What the PCM Does in a 2017 Chevrolet Equinox
The Engine Control Module (ECM) in your 2017 Chevrolet Equinox acts as the brain of the engine, continuously adjusting fuel injection, ignition timing, and emissions controls for optimal performance. Without a functioning ECM, the engine may run poorly or fail to start entirely. When replacement becomes necessary, you’ll need replacement engine computers for the Equinox to restore proper operation. The module’s precision ensures fuel efficiency and compliance with emissions standards, making it a vital component for both drivability and long-term reliability.

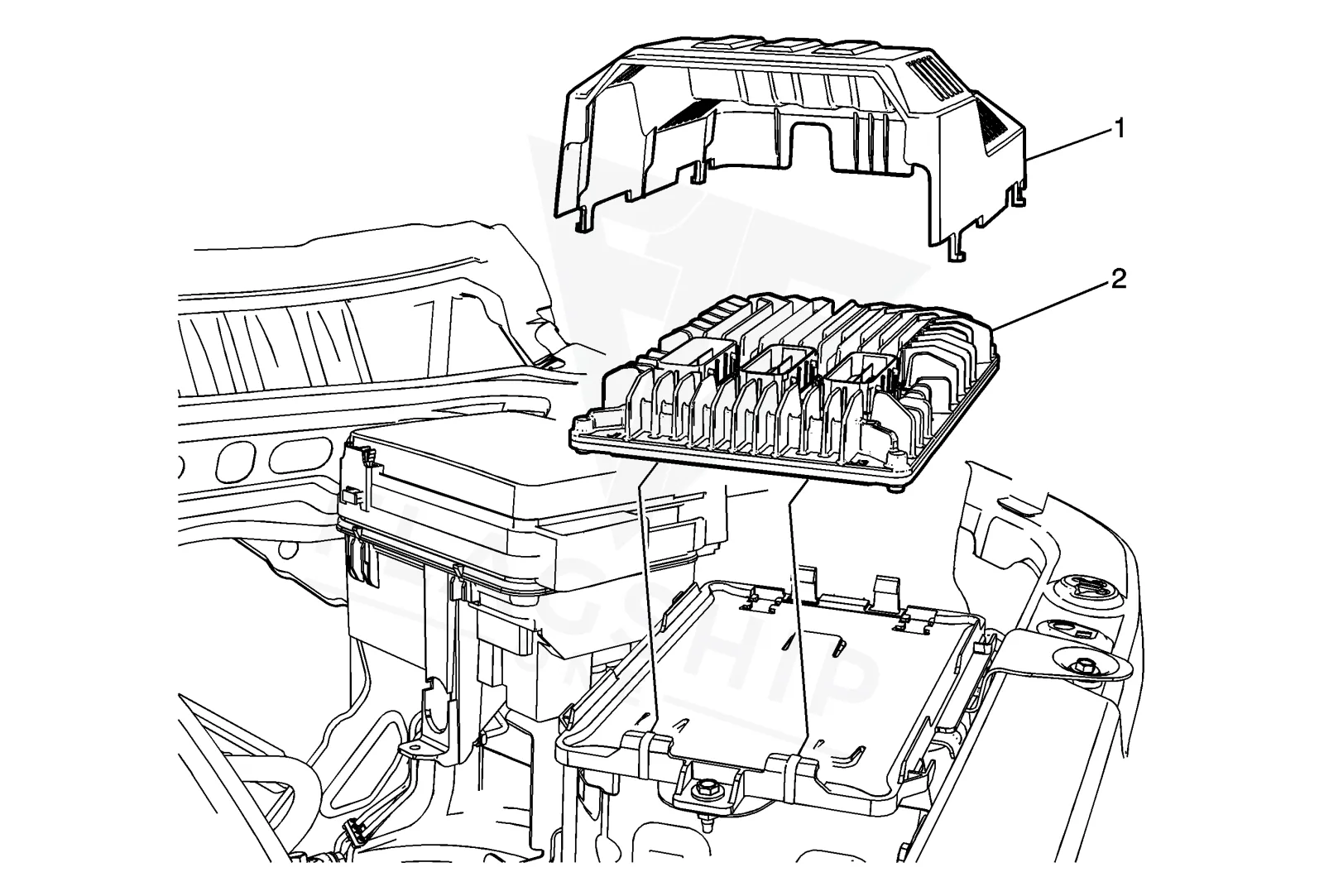

Where the PCM Is Located and What Replacement Involves
The ECM in your 2017 Chevrolet Equinox is typically mounted in the engine bay, though exact placement may vary. Replacing it involves disconnecting the negative battery cable first to prevent electrical damage. The factory labor guide estimates 1.5 hours for removal and reinstallation. After installation, a 0.5-hour relearn procedure is required to synchronize the module with the vehicle’s systems. Avoid touching the connector pins directly, as static discharge may damage the new ECM. Always follow the factory caution to ensure a successful replacement.
How to Reach the PCM on the 2017 Chevrolet Equinox
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Release the plastic retaining tabs.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 1.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 1.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new ECM in your 2017 Chevrolet Equinox, the factory procedure requires reprogramming the module to match your vehicle’s specifications. This step ensures compatibility with the engine and transmission systems. However, a VIN-programmed replacement unit from Flagship One arrives pre-configured, eliminating the need for post-install programming. This saves time and reduces the risk of calibration errors during the process. Always capture ECM data with a scan tool before removal to preserve vehicle-specific settings.
Symptoms of a Failing PCM
A failing ECM in your 2017 Chevrolet Equinox may cause a range of symptoms, including intermittent stalling, a no-start condition, or rough idling. You might also notice poor fuel economy or warning lights on the dashboard. Internal module faults, such as internal control module memory checksum error, often indicate a need for replacement. In some cases, the vehicle may enter a reduced-power mode to prevent further damage. If your scan tool fails to communicate with the ECM, the module itself may be the issue.
Module Trouble Codes on the 2017 Chevrolet Equinox
The 2017 Chevrolet Equinox may log specific trouble codes when the ECM develops internal faults. These codes help diagnose whether the module requires replacement or reprogramming.
Factory Service Bulletins Worth Knowing
Two factory service bulletins address ECM-related concerns for the 2017 Chevrolet Equinox. Bulletin #PIP5373B covers programming errors E4491 and E4423, which may occur during module updates. Bulletin #17-NA-242 details changes to the Service Programming System (SPS) that warn or prohibit reprogramming a module with its current calibration. These bulletins highlight the importance of following updated procedures to avoid calibration issues during ECM service.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Program ECM Error E4491/E4423 – (Jun 11, 2018) | — |
| — | Information on Changes to SPS that Warn/Prohibit Reprogramming a Module With Its Current Calibr | — |
Protecting the PCM in Your 2017 Chevrolet Equinox
- Maintain a healthy charging system to prevent voltage spikes that may damage the ECM.
- Ensure battery connections are clean and secure before performing any electrical work.
- Avoid jump-starting the vehicle with improper voltage, as this can harm sensitive modules.
- Address trouble codes promptly to prevent cascading electrical issues.
- Keep ECM connectors free of corrosion and ensure seals remain intact to prevent moisture damage.
- Use a scan tool to capture ECM data before removal to preserve vehicle-specific settings.
Frequently Asked Questions
How do I know if my 2017 Chevrolet Equinox ECM is failing?
Common signs include a no-start condition, stalling, or warning lights on the dashboard. Internal module codes like P0601 or P0603 may also appear. If your scan tool cannot communicate with the ECM, the module itself may be faulty.
Can I replace the ECM in my Equinox myself?
While physically replacing the ECM is straightforward, the factory requires reprogramming afterward. Without the proper tools and software, this step may not be feasible for DIYers. A pre-programmed unit simplifies the process.
Why does the ECM in my 2017 Equinox need reprogramming after replacement?
The ECM must be calibrated to match your vehicle’s engine, transmission, and emissions systems. Reprogramming ensures all systems communicate correctly, preventing drivability issues or fault codes.
If your 2017 Chevrolet Equinox requires an ECM replacement, you have options. A dealer replacement involves programming time and potential calibration risks, while a refurbished unit from Flagship One arrives VIN-programmed for plug-and-play installation. This eliminates the need for post-install procedures and reduces downtime, making it a practical choice for restoring your vehicle’s performance.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2017 Chevrolet Equinox with a lifetime warranty, free shipping and no core charge. The full Chevrolet Equinox module lineup covers other engine configurations as well.
Final Thoughts
A failing ECM in your 2017 Chevrolet Equinox can lead to frustrating drivability issues, but replacement doesn’t have to be complicated. Understanding the labor involved, programming requirements, and benefits of a pre-configured unit helps you make an informed decision. Whether you opt for a dealer visit or a ready-to-install module, addressing the issue promptly ensures your Equinox runs reliably.
