2016 Nissan Murano Powertrain and Engine Control Module Overview
In the 2016 Nissan Murano, the Powertrain Control Module and Engine Control Module manage engine timing, fuel delivery, and transmission coordination. A malfunction can disrupt sensor data, cause loss of driveability, and trigger internal fault codes such as P0605.
Quick Summary
- PCM replacement typically requires 1.2 labor hours.
- ECM replacement also averages 1.2 labor hours.
- Both modules need a relearn or reset step after installation.
- A P0605 code often points to internal PCM failure.
- Flagship One units arrive VIN‑programmed, eliminating post‑install coding.
When a 2016 Nissan Murano begins to exhibit irregular power delivery, sudden stalls, or a diagnostic trouble code, the vehicle’s electronic brain may be at fault. The Powertrain Control Module (PCM) and Engine Control Module (ECM) are central to how the engine runs and how the transmission shifts. Understanding what these modules do, where they live, and what the factory expects after they are swapped can help you decide whether to repair the original unit or install a refurbished replacement. This guide walks you through the function of each module in this Murano, the typical labor involved, the programming steps required, and practical tips to keep the electronics healthy.
What the PCM Does in a 2016 Nissan Murano
The Powertrain Control Module in the 2016 Nissan Murano acts as the primary command center for engine and transmission operations. It receives input from dozens of sensors, calculates optimal fuel injection timing, and directs shift points for smooth acceleration. The Engine Control Module, while closely related, focuses on engine‑specific parameters such as ignition timing and emission controls. Both modules share data to ensure the vehicle runs efficiently and meets emissions standards. A failure in either unit can result in loss of power, rough idle, or an inability to shift properly. Proper operation is essential for fuel economy and overall drivability. For owners needing a replacement, replacement powertrain control modules for the 2016 Nissan Murano provide a direct fit and calibrated software.
Where the PCM Is Located and What Replacement Involves
In the 2016 Nissan Murano, the Powertrain Control Module is mounted in the engine compartment near the firewall, while the Engine Control Module resides on the passenger side of the intake manifold. Access typically involves removing a few fasteners and disconnecting electrical connectors. The factory book time for removing and reinstalling the PCM is 1.2 hours, and an additional 0.5 hours are allocated for the relearn procedure. The ECM follows the same removal time of 1.2 hours, with a 0.3‑hour reset and a 0.5‑hour relearn step. Technicians should verify connector integrity and torque bolts to specification if that information is supplied in the service manual.

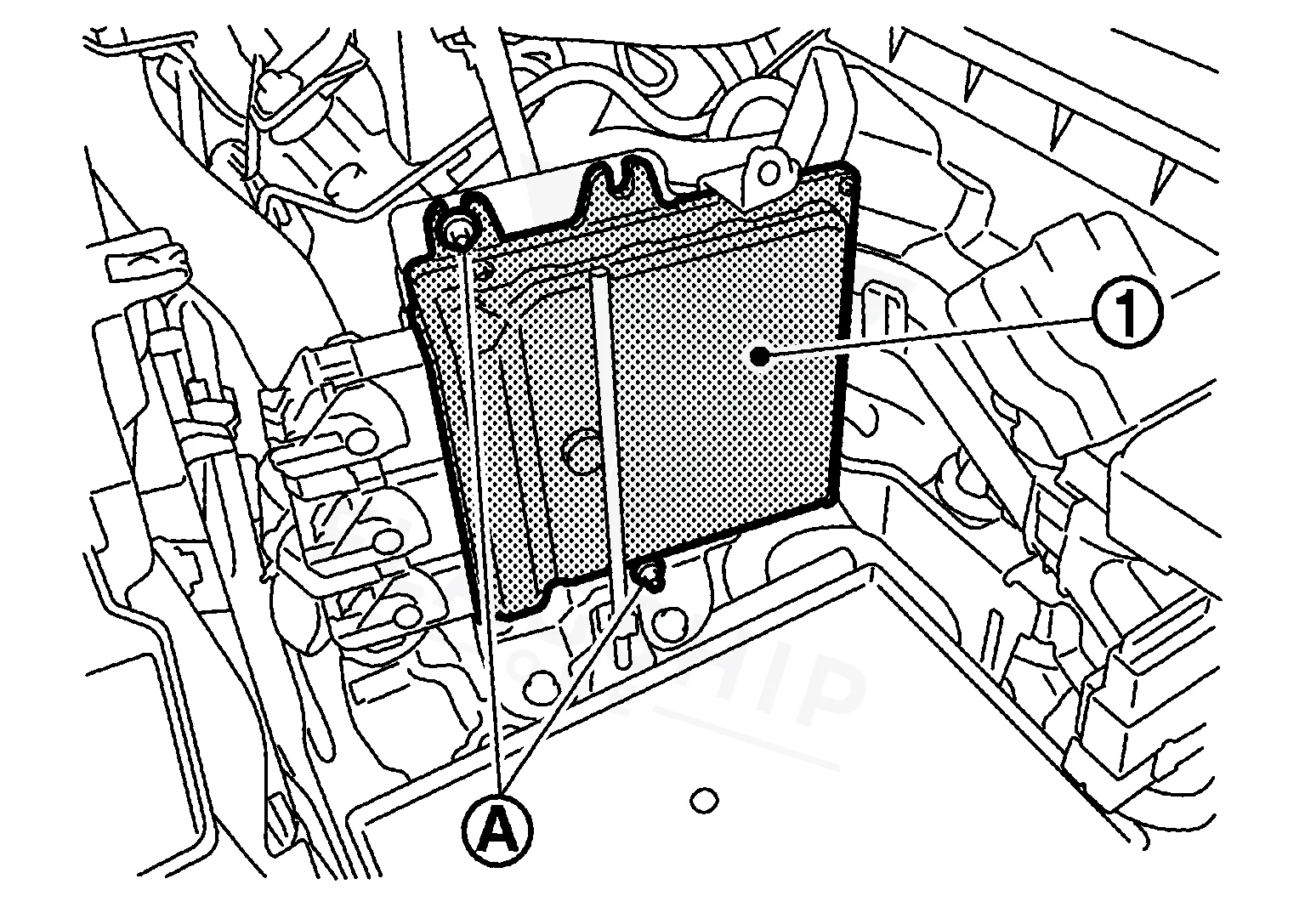

How to Reach the PCM on the 2016 Nissan Murano
- Remove front air duct.
- Remove battery.
- Disconnect ECM harness connectors.
- Remove ECM mounting nuts , and then remove ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.2 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.2 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Symptoms of a Failing PCM
Owners of a 2016 Nissan Murano may notice a range of issues when the PCM or ECM begins to fail. Common signs include intermittent loss of power, engine stalling during idle, rough acceleration, and transmission shifting that feels delayed or harsh. In some cases, the scan tool may lose communication with the vehicle’s computer network, preventing further diagnostics. A specific internal fault code that often appears is P0605, which indicates a PCM internal error. When this code surfaces, it usually points to a malfunction inside the module rather than an external sensor, and the vehicle may limp or refuse to start until the module is addressed.
Module Trouble Codes on the 2016 Nissan Murano
The following internal trouble codes have been documented for the 2016 Nissan Murano’s control modules:
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Protecting the PCM in Your 2016 Nissan Murano
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean ground connections regularly.
- Use proper jump‑start techniques to prevent voltage spikes.
- Address diagnostic codes promptly before they worsen.
- Keep connector seals dry and free of corrosion.
- Avoid prolonged exposure to extreme temperatures.
When faced with a faulty PCM or ECM in your 2016 Nissan Murano, you can choose to repair the original unit or install a refurbished replacement. Both options restore the vehicle’s electronic control, but a Flagship One replacement arrives VIN‑programmed, simplifying the post‑install steps and helping you return to the road more quickly.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 Nissan Murano with a lifetime warranty, free shipping and no core charge. The full Nissan Murano module lineup covers other engine configurations as well.
Final Thoughts
The 2016 Nissan Murano relies on its PCM and ECM for smooth operation. Whether you repair or replace, addressing the issue promptly ensures reliable performance. Consider a Flagship One unit for a VIN‑programmed solution that streamlines the process.
