2016 Lexus LS460L Engine Control Module Replacement and Programming
The engine control module in the 2016 Lexus LS460L manages fuel delivery, ignition timing, and emissions systems. Internal circuit failures can lead to a no-start condition, erratic engine behavior, or illumination of the check engine light.
Quick Summary
- The module is positioned next to the air cleaner assembly and requires removal of several engine bay covers for access.
- Factory book time for removal and installation of the engine control module is 0.5 hours.
- A separate 0.5-hour relearn procedure is specified after replacement to synchronize the module with the vehicle.
- A stored P0606 code indicates an internal control module processor fault, often necessitating replacement.
When your 2016 Lexus LS460L develops persistent driveability issues or fails to start, the engine control module may be the root cause. This component acts as the brain of the powertrain, interpreting sensor data and commanding actuators. A malfunction can mimic other problems, making diagnosis challenging. Understanding what the module does, how to recognize its failure, and what replacement involves can save you time and prevent unnecessary parts swapping. This guide explains the module’s role in your LS460L, its location, the steps required to swap it, and how a pre-programmed unit can streamline the repair. You will also learn about common symptoms, relevant diagnostic codes, and practical tips to protect the new module from future damage.
What the PCM Does in a 2016 Lexus LS460L
The engine control module in the 2016 Lexus LS460L is the central computer that governs engine performance. It continuously processes signals from sensors such as the mass airflow meter, oxygen sensors, and crankshaft position sensor to adjust fuel injection, ignition timing, and variable valve timing. The module also monitors emissions systems and communicates with the transmission control unit to coordinate shifts. When it fails, the engine may crank but not start, stall unexpectedly, or run with reduced power. Because the module is integral to so many functions, a fault can trigger multiple warning lights and diagnostic trouble codes. For reliable operation, many owners turn to replacement engine computers for the LS460L that arrive pre-calibrated to the vehicle’s VIN, eliminating the need for complex dealer programming.

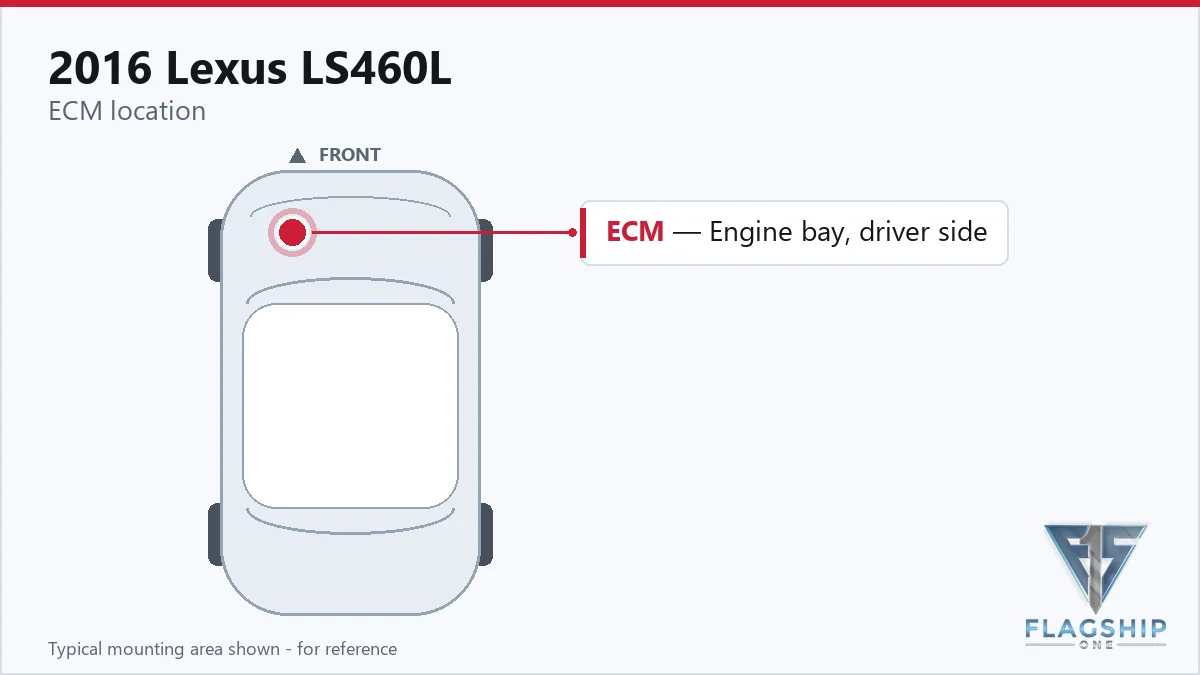

Where the PCM Is Located and What Replacement Involves
The engine control module is located next to the air cleaner assembly in the engine bay. To reach it, the factory procedure first requires disconnecting the negative battery cable. A waiting period may be necessary after turning the ignition off before disconnecting the battery; always consult the service notice for the exact delay. Once the battery is isolated, the cowl top ventilator louver on the right side, the air cleaner inlet cover sub-assembly, and the engine room side cover on the left must be removed. With these components out of the way, the module can be unbolted and the electrical connectors released. The book time for removing and reinstalling the engine control module is 0.5 hours. After installation, the factory specifies a 0.5-hour relearn procedure to calibrate the module to the vehicle’s systems.
How to Reach the PCM on the 2016 Lexus LS460L
- Remove cowl top ventilator louver rh.
- Disconnect cable from negative battery terminal.
- Remove air cleaner inlet cover sub-assembly.
- Remove engine room side cover lh.
- Remove engine room ecu cover.
- Remove the 3 bolts and engine room ECU cover.
- Disconnect the 4 TCM connectors.
- Remove the 2 nuts and TCM.
- Disconnect the 2 engine wire connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After physically installing a new engine control module, the factory service manual requires a relearn procedure to match the module with the vehicle’s immobilizer, throttle body, and other networked components. This process typically demands a professional scan tool and can take 0.5 hours. However, when you source a pre-programmed replacement unit, that step is already completed. The module arrives configured with your LS460L’s VIN and current software calibration, so it is ready to start the engine once installed. This eliminates the need for a separate programming session and reduces the risk of communication errors that can occur during manual relearn procedures.
Symptoms of a Failing PCM
A failing engine control module in the 2016 Lexus LS460L often produces symptoms that can be mistaken for sensor or wiring faults. You may experience a no-crank or no-start condition, intermittent stalling, rough idle, or a sudden loss of power while driving. The check engine light may illuminate, and a scan tool might reveal a loss of communication with the module. In some cases, the transmission may shift erratically because the module shares data with the transmission controller. A stored internal control module processor fault is a strong indicator that the module itself has suffered an internal failure and likely requires replacement rather than a simple repair.
Module Trouble Codes on the 2016 Lexus LS460L
The following diagnostic trouble code is documented for the engine control module in this vehicle. It points to an internal module malfunction rather than an external circuit issue, helping to confirm that the module itself is the source of the problem.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2016 Lexus LS460L
- Keep the battery and charging system in good condition; a weak alternator or corroded terminals can cause voltage spikes that damage module electronics.
- Ensure all ground connections are clean and tight, as poor grounds can create electrical noise and erratic module behavior.
- Avoid jump-starting with excessive voltage or reversed cables, which can instantly destroy sensitive circuits.
- Address check engine lights promptly to prevent a minor sensor fault from overloading the module’s drivers.
- Inspect and maintain the module’s connector seals to keep moisture and debris out of the pins.
Frequently Asked Questions
Can I replace the engine control module in my 2016 Lexus LS460L myself?
Yes, the physical swap is straightforward if you are comfortable removing a few engine covers and disconnecting the battery. The module is accessible next to the air cleaner, and the book time is only 0.5 hours. However, a factory relearn is normally required afterward, which is why a pre-programmed unit is often the simplest path.
Will a used engine control module work in my LS460L?
A used module may not function correctly because it is still paired to the original vehicle’s VIN and immobilizer. It would need to be reprogrammed by a dealer or specialist, and even then, internal wear could cause future issues. A VIN-programmed replacement avoids these complications.
What does the P0606 code mean on my 2016 Lexus LS460L?
P0606 indicates an internal processor fault within the engine control module. This is not a wiring or sensor problem; it means the module’s own logic has failed. The typical repair is module replacement, as the internal fault cannot be serviced separately.
When your LS460L’s engine control module fails, you have two main paths: attempt a repair of the original unit or install a replacement. Repair can be uncertain and may not address latent internal damage. A VIN-programmed replacement offers a fresh start with updated software and no hidden wear. For a 2016 Lexus LS460L, choosing a module that arrives ready to install eliminates the need for a separate programming appointment and gets you back on the road quickly.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 Lexus LS460L with a lifetime warranty, free shipping and no core charge. The full Lexus LS460L module lineup covers other engine configurations as well.
Final Thoughts
A faulty engine control module can bring your 2016 Lexus LS460L to a standstill, but the replacement process is manageable with the right information. By understanding the module’s location, the access steps, and the programming requirements, you can approach the job confidently. A pre-programmed unit simplifies the task and helps ensure a reliable outcome.
