2016 Infiniti Q70h ECM/PCM Failure: Symptoms, Replacement & Costs
The Engine Control Module (ECM) or Powertrain Control Module (PCM) in your 2016 Infiniti Q70h acts as the vehicle’s brain, managing fuel delivery, ignition timing, and emissions. Failure may cause erratic engine behavior, stored trouble codes, or complete no-start conditions.
Quick Summary
- ECM/PCM failure in the 2016 Q70h may trigger drivability issues or a no-start condition.
- Replacement labor typically requires 1.6 to 1.9 hours, depending on module type.
- Post-install relearn procedures add 0.5 hours to ensure proper engine calibration.
- Internal trouble codes like P0605 often indicate module memory or processor faults.
- Pre-programmed replacement units eliminate the need for dealer reprogramming.
If your 2016 Infiniti Q70h suddenly stalls at stops, refuses to start, or throws a check-engine light with no clear cause, the Engine Control Module (ECM) or Powertrain Control Module (PCM) may be failing. These modules control critical engine functions, and when they malfunction, symptoms can range from subtle drivability quirks to complete immobilization. Replacing the module itself is only part of the process—factory procedures require additional steps to sync the new unit with your vehicle’s systems. Understanding the role of the ECM/PCM, the symptoms of failure, and the replacement process helps you make informed decisions about repairs. This guide explains what the module does, where it’s located, and how to restore reliable operation to your Q70h without unnecessary delays or costs.
What the PCM Does in a 2016 Infiniti Q70h
The Engine Control Module (ECM) in your 2016 Infiniti Q70h is responsible for managing fuel injection, ignition timing, and emissions controls to ensure optimal engine performance. It constantly adjusts these parameters based on sensor inputs, such as throttle position, oxygen levels, and engine temperature. The Powertrain Control Module (PCM) often integrates transmission control, coordinating shifts and torque delivery for smooth acceleration. When the module fails, your Q70h may experience hesitation, stalling, or even a complete no-start condition, as the engine loses its ability to regulate critical functions. A faulty ECM/PCM can also trigger warning lights and store trouble codes, some of which may point directly to internal module faults. Replacing the module with replacement engine computers for the Q70h ensures your vehicle regains proper engine management, but the process doesn’t end with installation—factory procedures require additional steps to calibrate the new unit to your specific vehicle.
Where the PCM Is Located and What Replacement Involves
The ECM/PCM in your 2016 Infiniti Q70h is typically located in the engine bay, mounted near the firewall or on the passenger-side strut tower. Accessing the module requires removing the plastic engine cover and possibly disconnecting nearby components like the air intake or battery terminals. Replacement involves unbolting the module, disconnecting the wiring harness, and installing the new unit. Labor times for removal and reinstallation (R&R) range from 1.6 to 1.9 hours, depending on whether the module is classified under gas-specific or general powertrain categories. After installation, the module must be secured with the original fasteners to ensure proper grounding and protection from vibration. No additional torque specifications are provided, but care should be taken to avoid overtightening, which could damage the mounting points or module housing.

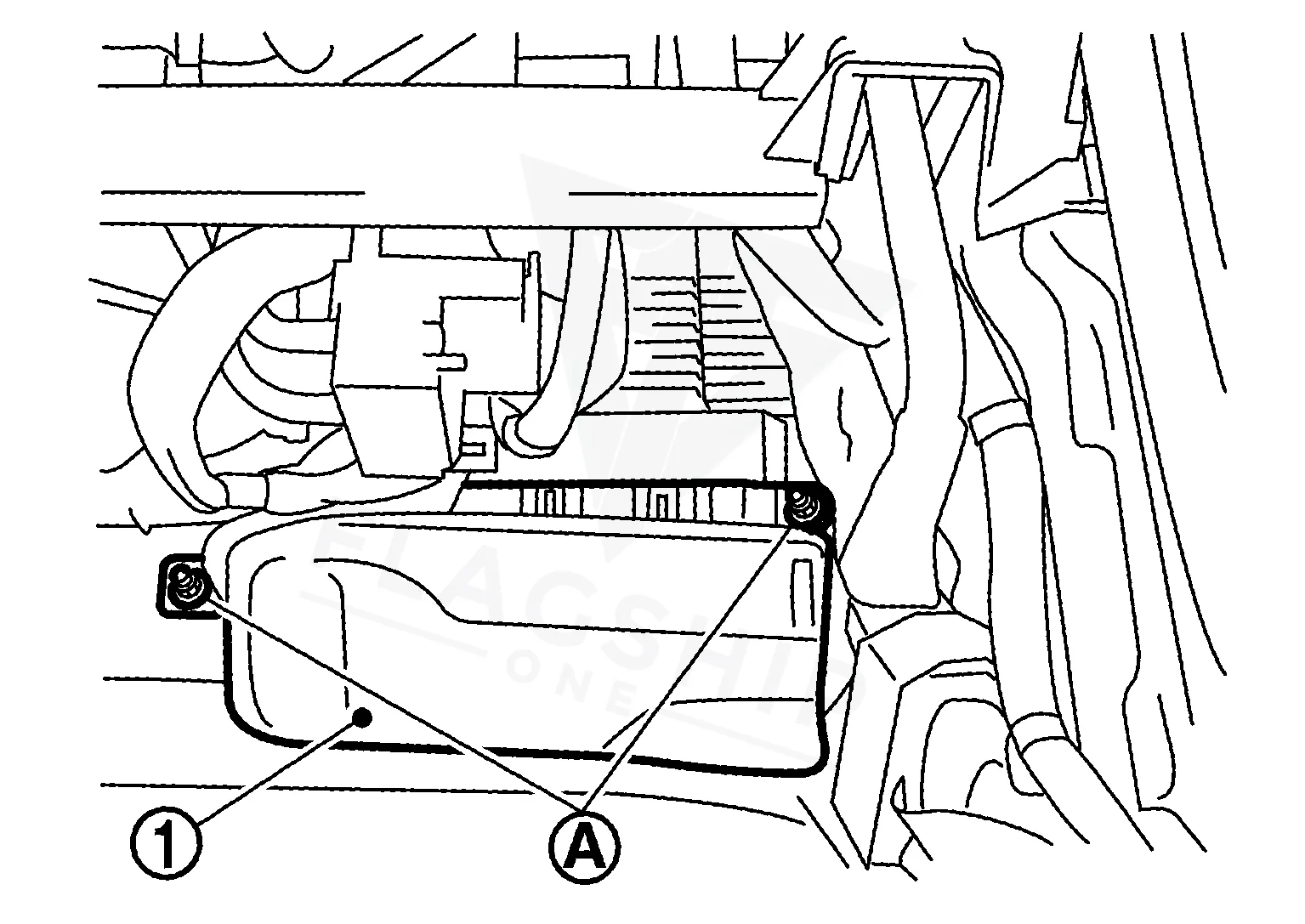

How to Reach the PCM on the 2016 Infiniti Q70h
- Remove the instrument lower cover.
- Remove the dash side finisher (LH).
- Remove the ECM cover bolts and remove ECM cover.
- Disconnect ECM harness connectors.
- Remove ECM bracket bolt.
- Slide the ECM bracket upward and then remove ECM bracket with ECM.
- Remove ECM bracket bolts and separate ECM and ECM bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | GAS | 1.9 hr |
| Engine Control Module R&R | All configurations | 1.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | GAS | 1.9 hr |
| Powertrain Control Module R&R | All configurations | 1.6 hr |
Programming Requirements After Replacement
After replacing the ECM/PCM in your 2016 Infiniti Q70h, the factory procedure requires a relearn process to synchronize the new module with the vehicle’s sensors and systems. This typically involves a 0.5-hour procedure, where a scan tool is used to reset adaptive values, calibrate throttle position, and ensure proper communication with the transmission and emissions controls. Without this step, your Q70h may experience rough idling, poor fuel economy, or even fail to start. However, opting for a VIN-programmed replacement unit eliminates the need for this additional labor, as the module arrives pre-configured to your vehicle’s specifications. This not only saves time but also reduces the risk of calibration errors that can occur during manual programming. Always confirm that the replacement unit matches your Q70h’s exact model year and engine configuration to avoid compatibility issues.
Symptoms of a Failing PCM
When the ECM/PCM in your 2016 Infiniti Q70h begins to fail, symptoms can vary widely but often include erratic engine behavior that worsens over time. You may notice the engine stalling at idle, especially when coming to a stop, or experiencing hesitation during acceleration as if the vehicle is struggling to deliver power. In some cases, the Q70h may refuse to start altogether, leaving you with a cranking engine that never fires. Warning lights, such as the check-engine or traction control indicators, may illuminate on the dashboard, often accompanied by stored trouble codes. One common code associated with internal module faults is internal control module memory error, which typically indicates a problem with the module’s memory or processor. Other symptoms may include poor fuel economy, rough shifting (if the PCM controls transmission functions), or even intermittent loss of communication with a scan tool. If your Q70h exhibits any of these issues, it’s worth investigating the ECM/PCM as a potential cause, especially if no other mechanical or sensor-related faults are found.
Module Trouble Codes on the 2016 Infiniti Q70h
The 2016 Infiniti Q70h may store specific trouble codes when the ECM/PCM experiences internal faults. These codes often point directly to module-related issues rather than sensor or wiring problems. The table below lists documented module-internal trouble codes for this vehicle, which can help diagnose whether the module itself needs replacement.
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Protecting the PCM in Your 2016 Infiniti Q70h
- Keep your Q70h’s battery fully charged and ensure the charging system is functioning properly to avoid voltage spikes that can damage the ECM/PCM.
- Inspect and clean electrical connectors and grounds regularly to prevent corrosion or poor connections that may stress the module.
- Avoid jump-starting the vehicle with improper voltage, such as from a 24-volt system, which can fry sensitive electronics.
- Address check-engine lights or stored trouble codes promptly to prevent minor issues from escalating into module failure.
- Ensure the ECM/PCM connector seals are intact to protect the module from moisture and debris that can cause internal shorts.
- Use a quality scan tool to clear codes after repairs, as lingering faults may indicate unresolved issues that could affect the module.
Frequently Asked Questions
Why does my 2016 Infiniti Q70h stall at stops but restart immediately?
Stalling at stops, followed by an immediate restart, is a common symptom of ECM/PCM failure in the Q70h. The module may momentarily lose communication with sensors or fail to regulate idle speed, causing the engine to shut off. If no other mechanical issues are present, the module itself may need replacement.
Can I drive my Q70h with a P0605 code stored?
While your Q70h may still run with a P0605 code, driving with this fault is not recommended. The code indicates an internal module memory error, which can lead to unpredictable engine behavior, stalling, or even a no-start condition. Addressing the issue promptly can prevent further complications.
How do I know if my Q70h’s ECM or PCM is failing and not a sensor?
If your Q70h stores module-internal trouble codes like P0605, or if multiple unrelated sensors fail simultaneously, the ECM/PCM is likely the culprit. A professional scan tool can help distinguish between sensor faults and module-related issues by checking for communication errors or inconsistent data.
What happens if I replace the ECM/PCM in my Q70h without reprogramming?
Without reprogramming, your Q70h may experience rough idling, poor fuel economy, or even fail to start. The factory procedure requires a relearn process to sync the new module with the vehicle’s systems. Using a pre-programmed unit avoids this step and ensures proper calibration from the start.
Is it safe to replace the ECM/PCM in my Q70h myself?
Replacing the ECM/PCM is physically straightforward, but improper handling can damage the module or cause electrical issues. If you’re not experienced with vehicle electronics, it’s best to have a professional perform the replacement and ensure the new unit is properly calibrated.
If your 2016 Infiniti Q70h is exhibiting symptoms of ECM/PCM failure, you have options for restoring reliable operation. While a dealer may recommend a new module with on-site programming, a refurbished replacement unit can offer a cost-effective alternative. Opting for a pre-programmed module eliminates the need for additional labor and ensures your Q70h is back on the road quickly. Consider the labor savings and convenience of a unit that’s ready to install, especially if your vehicle is already experiencing drivability issues.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 Infiniti Q70h with a lifetime warranty, free shipping and no core charge. The full Infiniti Q70h module lineup covers other engine configurations as well.
Final Thoughts
The 2016 Infiniti Q70h relies on its ECM/PCM to manage critical engine and transmission functions, and when this module fails, it can leave you stranded or dealing with frustrating drivability issues. Understanding the symptoms, replacement process, and programming requirements helps you make informed decisions about repairs. Whether you choose a dealer-installed unit or a pre-programmed replacement, addressing ECM/PCM failure promptly ensures your Q70h remains reliable and responsive on the road.
