2016 GMC Sierra PCM and ECM Replacement Guide
In the 2016 GMC Sierra the Powertrain Control Module (PCM) and Engine Control Module (ECM) manage transmission shifting, fuel delivery and emissions. A failure typically disrupts communication between the engine and transmission, leading to erratic shifts, loss of power or a non‑starting condition. Faulty internal circuitry or corrupted software may trigger diagnostic codes such as P0601 through P0630.
Quick Summary
- PCM and ECM share a common removal time of 1.4 hours for any Sierra model.
- Relearn procedures for both modules require an additional half hour.
- Factory bulletins address shifting firmness and MIL illumination for this year.
- Flagship One units arrive VIN‑programmed, eliminating post‑install coding.
When a 2016 GMC Sierra begins to exhibit hard shifts, unexpected clunks or engine‑control warning lights, the powertrain and engine control computers are often the first suspects. Understanding what these modules do, how they are accessed and what programming is required can help you decide whether a repair or a replacement is the better path. This guide walks you through the basics of the PCM and ECM in your Sierra, the labor involved, the factory reprogramming steps and practical ways to keep the modules healthy.
What the PCM Does in a 2016 GMC Sierra
The Powertrain Control Module in the 2016 GMC Sierra interprets sensor data to command the transmission, while the Engine Control Module regulates fuel injection, ignition timing and emissions. Together they ensure smooth acceleration, proper gear changes and compliance with emissions standards. A malfunction can cause the transmission to stay in a single gear or shift harshly, and may also prevent the engine from starting. Proper operation is essential for fuel efficiency and drivability. replacement powertrain computers for the 2016 GMC Sierra are designed to meet these exact requirements.
Where the PCM Is Located and What Replacement Involves
Both the PCM and ECM are mounted within the engine compartment of the 2016 GMC Sierra, typically attached to the firewall or near the intake manifold. Removal follows the same procedure for the 1500, 2500 HD and 3500 HD variants, with a book time of 1.4 hours each. After the unit is taken out, technicians must reconnect the harnesses, secure the mounting bolts and verify proper torque if specified by the service manual. Once installed, a relearn cycle of 0.5 hours is needed for each module to recalibrate the system.

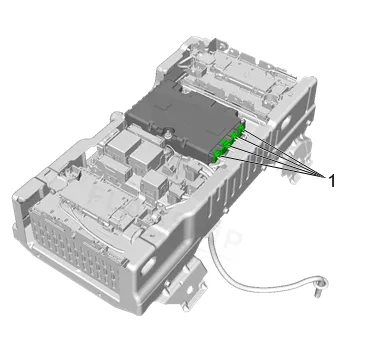

How to Reach the PCM on the 2016 GMC Sierra
- Release the tab on the rear of the cover while rotating the cover upward.
- Remove any debris from around the control module connector.
- Disconnect the engine control module harness connectors.
- Release the three tabs retaining the engine control module to the module bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Sierra 1500 | 1.4 hr |
| Powertrain Control Module R&R | Sierra 2500 HD | 1.4 hr |
| Powertrain Control Module R&R | Sierra 3500 HD | 1.4 hr |
| Powertrain Control Module Relearn | Sierra 1500 | 0.5 hr |
| Powertrain Control Module Relearn | Sierra 2500 HD | 0.5 hr |
| Powertrain Control Module Relearn | Sierra 3500 HD | 0.5 hr |
| Engine Control Module Relearn | Sierra 1500 | 0.5 hr |
| Engine Control Module Relearn | Sierra 2500 HD | 0.5 hr |
Programming Requirements After Replacement
After a PCM or ECM replacement, the factory process calls for a High Voltage Enabling Reprogram of the hybrid powertrain control module and a specific ECM data capture before removal. Flagship One supplies a VIN‑programmed replacement unit, so those reprogramming steps are already completed before the part reaches your shop. a VIN‑programmed replacement unit therefore eliminates the need for on‑site coding, saving time and reducing the chance of error.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2016 GMC Sierra include delayed or harsh gear changes, a noticeable clunk when the engine starts, and an illuminated check engine light. Drivers may also experience a no‑start condition or intermittent stalling, especially after the vehicle has been idle for several hours. When the fault PCM internal memory error appears, it often points to a communication breakdown within the control module, prompting the need for diagnostic testing.
Module Trouble Codes on the 2016 GMC Sierra
The following diagnostic trouble codes are commonly logged by the powertrain and engine control modules in the 2016 GMC Sierra:
Factory Service Bulletins Worth Knowing
Service bulletin #16-NA-182 (June 7, 2016) directs a reprogram of the TCM to resolve DTC P0777 and firm 3‑2 downshifts. Bulletin #15-NA-007 (January 29, 2016) advises a TCM reprogram for firm garage shifts, start‑up clunk and DTC P16F3, noting that these conditions may appear after the vehicle has sat for several hours.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | DTC P0777, Firm 3–2 Downshifts (Reprogram TCM) – (Jun 7, 2016) | — |
| — | Firm Garage Shifts, Start Up Clunk, DTC P16F3 (Reprogram TCM) – (Jan 29, 2016) | Some customers may comment on any of the following conditions: Firm garage shifts, Park to Drive or Park to Reverse after the vehicle has be sitting for… |
Protecting the PCM in Your 2016 GMC Sierra
- Maintain a healthy charging system to avoid voltage drops.
- Inspect and clean all ground connections and connector pins regularly.
- Avoid jump‑starts that can introduce voltage spikes to the modules.
- Address any diagnostic codes promptly to prevent escalation.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What are the labor hours for replacing the PCM in a 2016 GMC Sierra?
The standard book time for removing and installing the Powertrain Control Module on any 2016 Sierra model is 1.4 hours.
Do I need to reprogram the ECM after installing a new unit in my 2016 Sierra?
Yes, the factory procedure requires a specific ECM relearn after replacement, but a VIN‑programmed Flagship One unit includes that programming already.
Which service bulletins address shifting issues for the 2016 GMC Sierra?
Bulletin #16-NA-182 covers firm 3‑2 downshifts and DTC P0777, while bulletin #15-NA-007 addresses garage shift firmness, start‑up clunk and DTC P16F3.
When the PCM or ECM in your 2016 GMC Sierra shows signs of failure, you can choose a professional repair that follows the factory reprogramming steps or opt for a refurbished replacement that arrives pre‑programmed. Both approaches restore the vehicle’s original performance, but a VIN‑programmed unit removes the need for additional coding work on the shop floor.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 GMC Sierra with a lifetime warranty, free shipping and no core charge. The full GMC Sierra module lineup covers other engine configurations as well.
Final Thoughts
Whether you own a 2016 GMC Sierra 1500, 2500 HD or 3500 HD, addressing PCM or ECM issues promptly can keep your truck shifting smoothly and running reliably. Consider a pre‑programmed replacement to simplify the repair process and get back on the road with confidence.
