2016 Ford Fusion 2.5L PCM/ECM Replacement and Programming Guide
The powertrain control module (PCM) in a 2016 Ford Fusion 2.5L is the primary computer that governs fuel delivery, ignition timing, and emissions. When it fails, the engine may crank without starting, run erratically, or trigger a P0606 internal fault code.
Quick Summary
- The PCM and ECM are interchangeable terms for the engine computer in this Fusion; both refer to the same control unit.
- Book time for module removal and replacement on the 2.5L engine is 0.7 hours.
- A P0606 code indicates an internal processor fault within the module itself.
- A replacement unit that arrives pre-programmed with your VIN eliminates the need for a separate relearn procedure at a shop.
- Addressing charging system health and ground connections can help prevent future module damage.
You turn the key in your 2016 Ford Fusion 2.5L and the engine refuses to start, or it stumbles and dies moments later. The dashboard may light up with a check engine warning, and a scan tool reveals a P0606 code pointing to an internal computer fault. These symptoms often trace back to the powertrain control module (PCM), the brain behind your engine’s operation. When this module malfunctions, it can no longer interpret sensor data or command the fuel injectors and ignition coils correctly, leaving you stranded. Understanding what the PCM does, why it fails, and how a properly prepared replacement can get you back on the road without a costly dealership visit is the goal of this guide. You will learn the straightforward replacement process, the factory programming steps that a pre-programmed unit can bypass, and practical measures to extend the life of your new module. By the end, you will have a clear picture of how to restore your Fusion’s performance with confidence.
What the PCM Does in a 2016 Ford Fusion
The powertrain control module in your 2016 Ford Fusion 2.5L acts as the central nervous system for the engine and transmission. It continuously reads data from sensors such as the mass airflow, throttle position, oxygen, and crankshaft position, then adjusts fuel injector pulse width, spark timing, and variable camshaft timing to match driving conditions. This module also monitors emissions systems and communicates with the transmission control unit to coordinate smooth gear changes. When the PCM fails, the engine may not start at all, or it may run so poorly that the vehicle becomes undrivable. A common internal fault is a corrupted processor or memory, which can trigger a P0606 code. Because the module is specific to the 2.5L engine calibration, installing a unit from a different engine or vehicle will not work without proper programming. Many owners find that sourcing replacement engine computers for the Fusion that are already flashed with the correct software and VIN saves time and avoids a trip to the dealer. The module’s role extends beyond basic engine management; it also controls the electronic throttle, cruise control, and interacts with the anti-theft system. A healthy PCM ensures that your Fusion starts reliably, idles smoothly, and delivers the fuel economy and power you expect from the 2.5L Duratec engine.

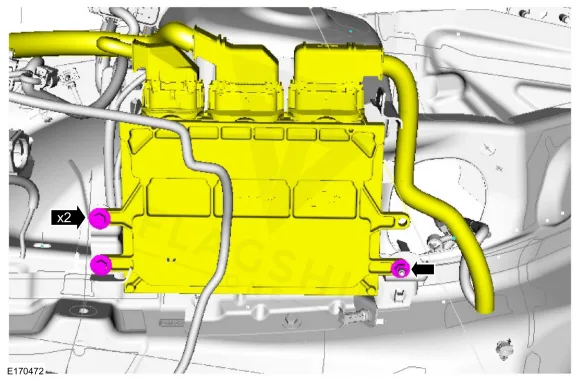

Where the PCM Is Located and What Replacement Involves
The powertrain control module on the 2016 Ford Fusion 2.5L is mounted in the engine compartment, where it connects to the main wiring harness. Replacement involves disconnecting the battery, releasing the harness connectors from the module, and removing the unit from its bracket. The book time for removal and reinstallation of the module is 0.7 hours. After the physical swap, the factory procedure requires a module relearn, which is listed at 0.5 hours. This relearn typically involves a scan tool to reset adaptive memory and ensure the module communicates with the vehicle’s other systems. No additional torque specifications or access steps are provided for this model. The straightforward location means that a careful DIYer can perform the physical swap, but the subsequent programming step is what often sends owners to a dealership. A replacement unit that arrives already programmed to your VIN and engine calibration eliminates that extra labor, allowing you to simply install the module and drive.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 1.5L | 0.6 hr |
| Powertrain Control Module R&R | 2.0L | 0.8 hr |
| Powertrain Control Module R&R | 2.5L | 0.7 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | 1.5L | 0.6 hr |
| Engine Control Module R&R | 2.0L | 0.8 hr |
| Engine Control Module R&R | 2.5L | 0.7 hr |
Programming Requirements After Replacement
After installing a new powertrain control module in a 2016 Ford Fusion 2.5L, the factory service procedure calls for a module relearn that takes 0.5 hours. This process uses a professional scan tool to transfer the vehicle’s immobilizer data, adaptive fuel trims, and transmission shift strategies into the new computer. Without it, the engine may not start or could run in a fail-safe mode. When you order a VIN-programmed replacement unit from Flagship One, that programming is already completed before the module ships. The unit arrives with your Fusion’s specific calibration and VIN loaded, so the relearn step is no longer necessary. You simply install the module, reconnect the battery, and the vehicle should start and run normally. This eliminates the need for a tow to the dealership or an expensive mobile programmer visit, making the repair far more accessible for a home mechanic.
Symptoms of a Failing PCM
A failing PCM in a 2016 Ford Fusion 2.5L often announces itself through a sudden no-start condition where the engine cranks but never catches. You may also experience intermittent stalling at idle or while driving, rough running that feels like a misfire, or a complete loss of communication with a scan tool. Because the module controls fuel and spark, a malfunction can mimic a bad fuel pump or ignition problem, leading to misdiagnosis. In some cases, the transmission may shift erratically or stay in limp mode because the PCM cannot process speed and load data correctly. The most definitive clue is a stored diagnostic trouble code such as P0606 internal processor fault, which indicates that the module’s own self-checks have detected a failure. Other symptoms include illuminated warning lights, failed emissions tests, and an engine that starts but immediately dies. If you notice any of these issues on your 2.5L Fusion, a thorough inspection of the PCM and its connections is a logical next step before replacing expensive mechanical components.
Module Trouble Codes on the 2016 Ford Fusion
The following diagnostic trouble code is commonly associated with internal powertrain control module failures on this vehicle. A stored code does not always confirm a bad module, but it provides a strong starting point for diagnosis.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2016 Ford Fusion
- Keep the battery and charging system in top condition; a weak alternator or corroded terminals can send voltage spikes to the PCM.
- Inspect and clean engine ground straps regularly to ensure the module has a stable electrical reference.
- Avoid jump-starting the vehicle with a high-amperage charger or running the engine with a disconnected battery, as this can damage sensitive electronics.
- Address any check engine light promptly; ignoring misfire or sensor codes can force the PCM to operate outside its normal parameters and accelerate wear.
- Ensure all PCM connectors are fully seated and free of moisture or corrosion; a small amount of water intrusion can cause internal shorts.
- When washing the engine bay, cover the PCM and its connectors to prevent water from entering the housing.
Frequently Asked Questions
What is the difference between a PCM and an ECM on a 2016 Ford Fusion 2.5L?
For this vehicle, the terms PCM (powertrain control module) and ECM (engine control module) refer to the same component. Ford uses both names interchangeably in service literature, and the module manages engine and transmission functions. The replacement part is identical regardless of which term you encounter.
Can I install a used PCM from another 2016 Ford Fusion without programming?
A used PCM from a different vehicle will not work without reprogramming because it contains the VIN and immobilizer data from the donor car. Even if the engine starts briefly, the anti-theft system will likely prevent continued operation. A pre-programmed replacement matched to your VIN avoids this issue.
How long does it take to replace the PCM on a 2016 Ford Fusion 2.5L?
The physical removal and installation of the module is listed at 0.7 hours of labor. If a separate relearn procedure is required, that adds another 0.5 hours. Using a unit that arrives already programmed eliminates the relearn step, so the job can be completed in under an hour.
Will a P0606 code always mean the PCM needs replacement?
A P0606 code indicates an internal processor fault, but it is wise to first check the module’s power and ground connections, as well as the battery voltage. If those are good and the code returns after clearing, the PCM is likely defective and should be replaced.
Does the 2016 Ford Fusion 2.5L require a throttle body relearn after PCM replacement?
The factory procedure for this vehicle does not list a separate throttle body relearn; the module relearn process typically covers idle and throttle adaptation. When you install a VIN-programmed replacement, the adaptive values are already set, so no additional steps are needed.
When your Fusion’s engine computer fails, you have two paths: a dealership repair that includes programming labor, or a pre-programmed replacement that you can install yourself. The latter approach often saves hundreds of dollars and gets you back on the road faster. Flagship One provides modules that are flashed with your VIN and calibration, so the unit is ready to plug in and go.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 Ford Fusion with a lifetime warranty, free shipping and no core charge. The full Ford Fusion module lineup covers other engine configurations as well.
Final Thoughts
A faulty PCM doesn’t have to sideline your 2016 Ford Fusion 2.5L for long. With a clear understanding of the symptoms, replacement steps, and programming requirements, you can tackle this repair confidently. A VIN-programmed module removes the most complex part of the job, letting you restore your vehicle’s performance with minimal downtime.
