2016 Chevrolet Sonic PCM/ECM Replacement Guide
In the 2016 Chevrolet Sonic the Powertrain Control Module and Engine Control Module manage engine timing, fuel delivery, and emission controls. Failure of either unit can cause loss of power, erratic idle, or inability to start, often flagged by internal diagnostic codes.
Quick Summary
- Both PCM and ECM may need removal and reinstall within half an hour each.
- Relearn procedures add another half hour for each module after installation.
- Factory reset of the ECM typically requires about three‑tenths of an hour.
- Programming the replacement unit is required unless a VIN‑programmed part is used.
When a 2016 Chevrolet Sonic begins to exhibit erratic engine behavior, the control modules are a common culprit. This guide explains what the Powertrain and Engine Control Modules do, how they are accessed, the labor involved, and the programming steps needed to get your vehicle back to reliable operation. By the end, you will understand the scope of a replacement and what to expect during the service.
What the PCM Does in a 2016 Chevrolet Sonic
The Powertrain Control Module in the 2016 Chevrolet Sonic acts as the central computer for the drivetrain, while the Engine Control Module fine‑tunes fuel injection and ignition timing. Together they ensure the engine runs smoothly and meets emissions standards. Proper operation is essential for fuel efficiency and drivability. replacement engine computers for the Sonic are engineered to match the vehicle’s calibration and sensor layout.
Where the PCM Is Located and What Replacement Involves
Both modules are mounted within the engine compartment and are accessible without major disassembly. Removing the PCM or ECM typically requires about half an hour of labor, as indicated by the book time. After the unit is taken out, reinstall follows the same time estimate. The ECM reset step adds roughly three‑tenths of an hour if needed. No additional torque specifications were provided.

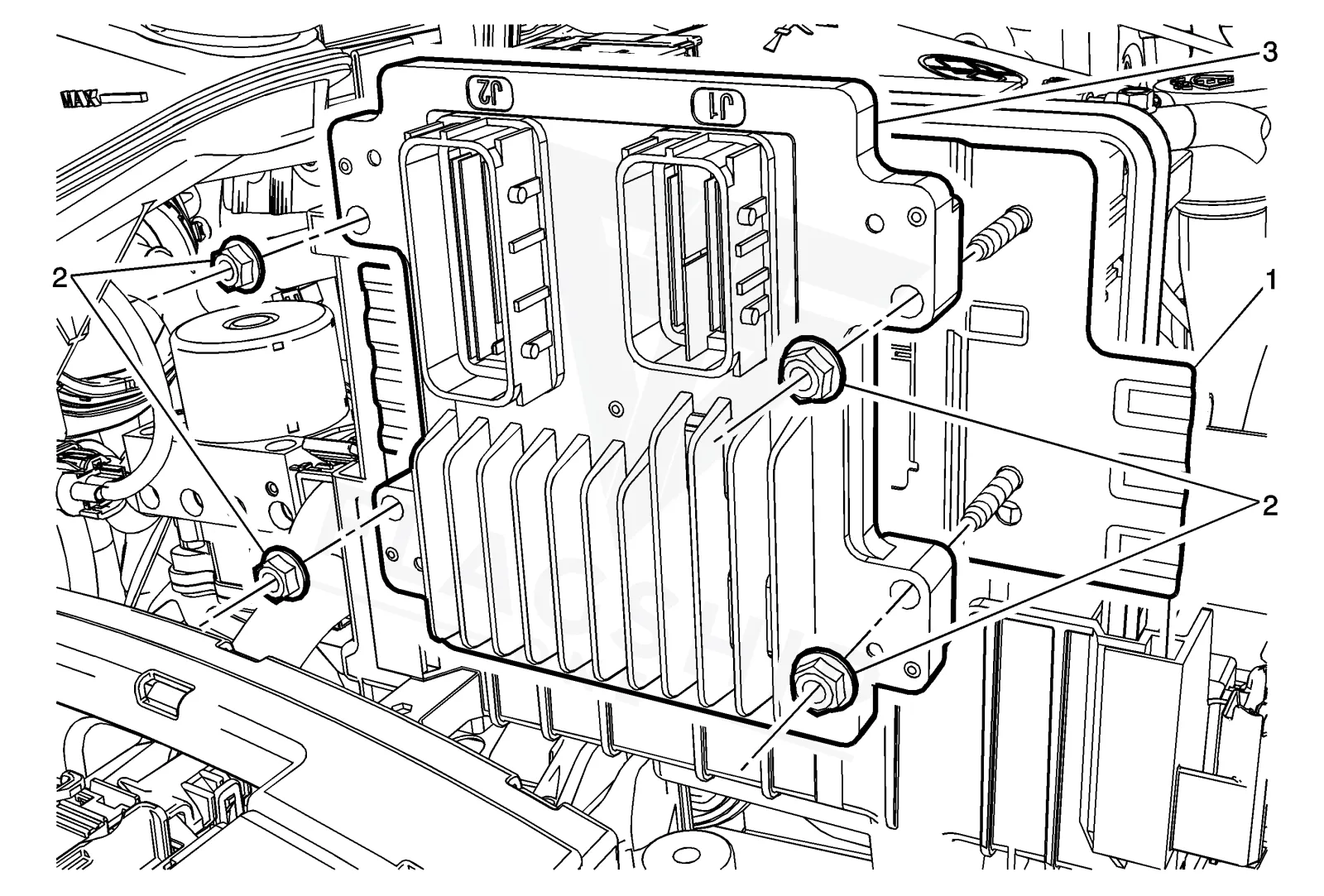

How to Reach the PCM on the 2016 Chevrolet Sonic
- Disconnect the battery negative cable.
- Disconnect the electrical wiring harness connectors from the engine control module.
- Unclip the engine control module bracket from the battery tray.
- Remove any debris from around the control module connector.
- Remove the engine control module from the engine control module bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
Programming Requirements After Replacement
After installing a new module, the factory procedure calls for a relearn of the PCM and ECM, each taking about half an hour, plus an ECM reset of three‑tenths of an hour. Flagship One supplies a VIN-programmed replacement unit that arrives already calibrated, so those steps are already completed for you.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2016 Sonic include rough idle, stalling, reduced power, and the inability to start. You may also see diagnostic trouble codes such as processor communication error during a scan. In some cases, the vehicle may shift harshly or display warning lights on the dash.
Module Trouble Codes on the 2016 Chevrolet Sonic
The following diagnostic trouble codes are commonly recorded by the Sonic’s control modules when a fault occurs:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P0605 | Internal ROM error | Full P0605 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P060A | Module-internal fault | — |
| P062B | Module-internal fault | — |
| P062F | Internal EEPROM error | Full P062F guide → |
| P0630 | Module-internal fault | Full P0630 guide → |
Factory Service Bulletins Worth Knowing
Service bulletin #PIP5373B, dated June 11 2018, addresses programming errors E4491 and E4423 for the ECM. Bulletin #17-NA-242 from July 24 2017 provides information on SPS changes that restrict reprogramming a module with its current calibration.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Program ECM Error E4491/E4423 – (Jun 11, 2018) | — |
| — | Information on Changes to SPS that Warn/Prohibit Reprogramming a Module With Its Current Calibr | — |
Protecting the PCM in Your 2016 Chevrolet Sonic
- Maintain a healthy charging system to avoid voltage drops.
- Ensure all ground connections are clean and secure.
- Avoid jump‑starts that could introduce voltage spikes.
- Promptly diagnose and clear any stored trouble codes.
- Inspect connector seals regularly for wear or corrosion.
Frequently Asked Questions
Can I replace the PCM on my 2016 Chevrolet Sonic myself?
The PCM is accessible and removal takes about half an hour, but proper relearn and programming are required. If you lack the specialized tools, professional installation is recommended.
What codes indicate a faulty ECM in a 2016 Sonic?
Codes such as P0601 through P0630 may appear, signaling internal processor or communication errors within the ECM.
Do I need to reset the ECM after installing a new unit?
Yes, the factory procedure includes an ECM reset that typically requires about three‑tenths of an hour.
When the control module in your 2016 Chevrolet Sonic needs service, you can choose a brand‑new repair or a refurbished replacement that matches the original specifications. Both options involve similar labor times, but a refurbished unit from Flagship One arrives pre‑programmed, simplifying the post‑install steps.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 Chevrolet Sonic with a lifetime warranty, free shipping and no core charge. The full Chevrolet Sonic module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM or ECM in a 2016 Chevrolet Sonic can restore proper engine control and clear related trouble codes. Consider a VIN‑programmed replacement to reduce on‑site programming effort and get back on the road sooner.
