2016 Chevrolet Caprice ECM/PCM Replacement & Programming Guide
The Engine Control Module (ECM) and Powertrain Control Module (PCM) serve as the primary computer for your 2016 Chevrolet Caprice’s 3.6L engine, managing fuel delivery, ignition timing, emissions controls, and transmission shifting. Module failure often stems from internal electrical faults, voltage spikes, or connector corrosion.
Quick Summary
- The 2016 Chevrolet Caprice uses a 3.6L V6 engine controlled by either an ECM or PCM depending on configuration
- Book time for ECM or PCM replacement on this vehicle is 1.4 hours for the 3.6L engine
- Factory caution requires turning ignition OFF before disconnecting ECM connectors to prevent component damage
- After replacement, a 0.5-hour relearn procedure is required, and programming errors may trigger DTC P1631
If your 2016 Chevrolet Caprice is experiencing starting issues, stalling, or illuminated check engine lights, the Engine Control Module may be the culprit. This guide walks you through recognizing ECM failure symptoms, understanding the replacement process, and knowing what to expect during programming. Whether you’re diagnosing a no-start condition or planning a repair, you’ll learn the labor considerations, factory procedures, and why a properly programmed replacement matters for your vehicle’s operation.
What the PCM Does in a 2016 Chevrolet Caprice
The Engine Control Module in your 2016 Chevrolet Caprice functions as the brain of the 3.6L powertrain, continuously monitoring sensors throughout the engine and transmission to calculate optimal fuel delivery, ignition advance, and emissions control strategies. This module communicates with the transmission control module to coordinate shifting, manages the idle air control system, and processes data from the mass airflow, coolant temperature, and oxygen sensors. When the ECM fails, your vehicle may exhibit drivability problems ranging from hard starting to intermittent stuttering under load. Replacement engine computers for the Caprice must be programmed with the vehicle’s specific VIN and calibration data to restore proper operation.
Flagship One keeps Chevrolet Caprice replacement engine computers in stock for exactly this failure pattern.
Where the PCM Is Located and What Replacement Involves

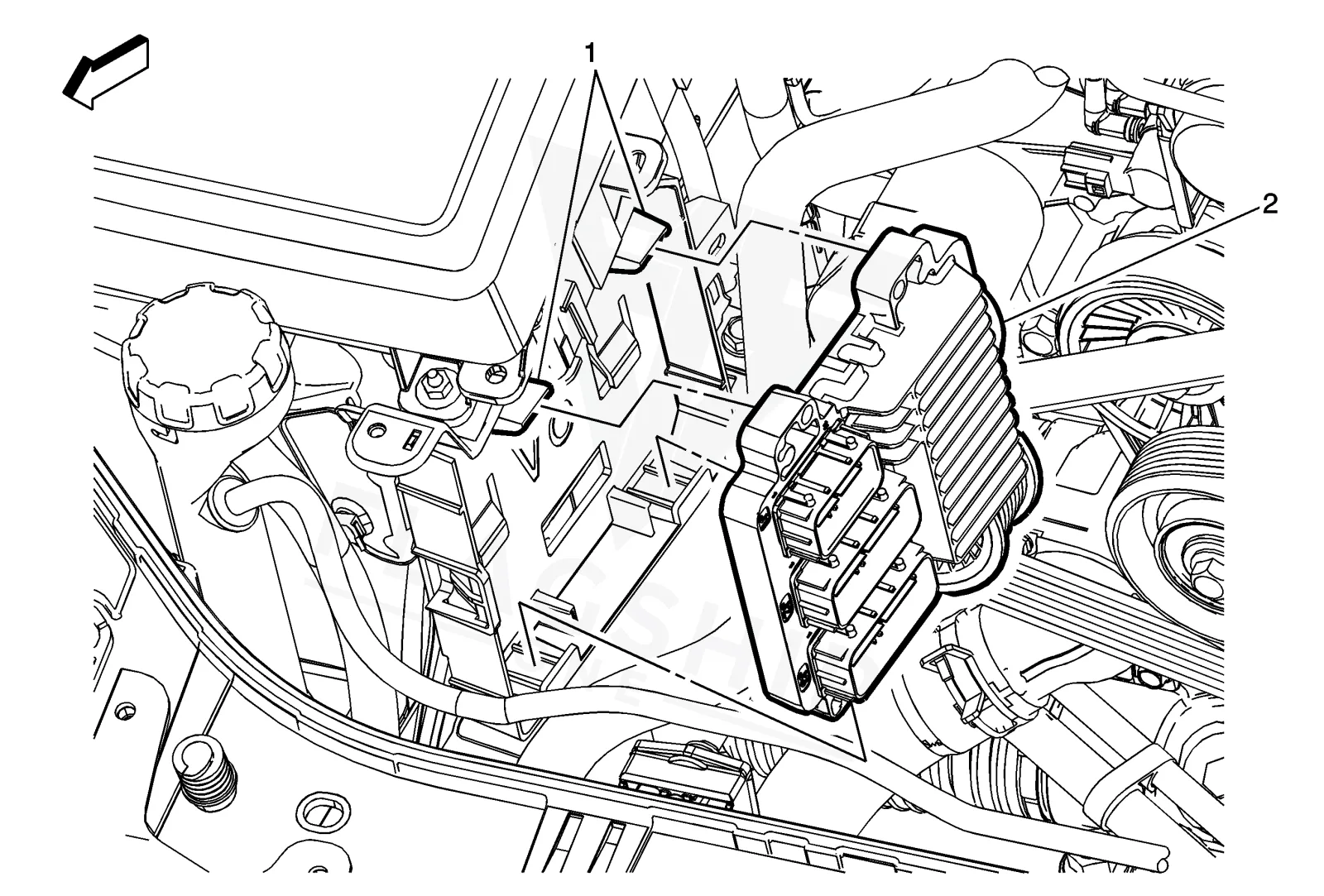

The ECM on the 2016 Chevrolet Caprice is typically located in the engine compartment, often mounted near the firewall or on the driver’s side of the engine bay. Access may require removing engine cover components or air intake ducting. The replacement procedure involves disconnecting the battery, turning the ignition off as specified in factory caution, removing the module mounting hardware, and transferring connectors. For the 3.6L engine, the book time allowance is 1.4 hours for the remove-and-replace operation. After securing all connections, the module must be torqued to specification and the battery reconnected to initiate the startup sequence.
How to Reach the PCM on the 2016 Chevrolet Caprice
- Disconnect the negative battery cable.
- Remove any debris from around the control module connector.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 3.6L | 1.4 hr |
| Powertrain Control Module R&R | 6.0L | 1.8 hr |
| Engine Control Module R&R | 3.6L | 1.4 hr |
| Engine Control Module R&R | 6.0L | 1.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Symptoms of a Failing PCM
When the ECM begins failing on a 2016 Chevrolet Caprice, you may notice symptoms including a no-start condition where the engine cranks but will not fire, intermittent stalling especially at idle or low speeds, and persistent misfire codes such as P0300. The scan tool may show no communication with the module, or you may observe erratic shifting behavior if the transmission control module cannot receive valid data. Electrical issues like flickering gauges, accessory circuit failures, and stored module-internal trouble codes often accompany ECM problems. A module memory checksum failure may indicate internal ECM corruption requiring replacement rather than repair.
Module Trouble Codes on the 2016 Chevrolet Caprice
The 2016 Chevrolet Caprice’s ECM may store various module-internal trouble codes when internal diagnostics detect faults. These codes include P0601 through P0607 (covering memory, RAM, EEPROM, and processor issues), P060D (catalyst system efficiency below threshold), P062B and P062F (fuel injector control module issues), P0630 (VIN not programmed), and sensor reference voltage codes P0641 and P0651. These codes often indicate the module cannot properly process sensor data and may require replacement.
Factory Service Bulletins Worth Knowing
Factory service bulletin #PIP5373B, issued June 2018, addresses ECM programming errors E4491/E4423 that may occur during module reprogramming. Bulletin #17-NA-242, released July 2017, describes changes to the SPS programming software that now warn or prohibit reprogramming a module with its current calibration, helping prevent accidental re-flashing of existing software. Both bulletins are relevant when performing ECM replacement or updates on this vehicle.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Program ECM Error E4491/E4423 – (Jun 11, 2018) | — |
| — | Information on Changes to SPS that Warn/Prohibit Reprogramming a Module With Its Current Calibr | — |
Protecting the PCM in Your 2016 Chevrolet Caprice
- Maintain your vehicle’s charging system — a weak or failing alternator can cause voltage fluctuations that stress the ECM
- Keep ECM connectors clean and dry — moisture intrusion at connector seals may lead to internal corrosion
- Avoid jump-starting from a severely discharged battery — voltage spikes during boost starts can damage sensitive electronics
- Address diagnostic trouble codes promptly — ignoring codes may allow underlying issues to damage the replacement module
- Inspect and repair damaged engine grounds — poor ground paths can cause voltage irregularities that affect ECM operation
- Ensure connector seals remain intact during any engine work to prevent future moisture intrusion
Frequently Asked Questions
Will any ECM work on my 2016 Chevrolet Caprice, or do I need a model-specific unit?
Your 2016 Chevrolet Caprice requires an ECM programmed with the specific VIN and calibration data for this vehicle. Units from other model years or different engine configurations will not operate properly without programming.
Can I replace the ECM myself on my 2016 Chevrolet Caprice, or does it require a dealer?
While the physical replacement can be performed by a competent DIY mechanic, the programming step typically requires GM-specific tooling (SPS) and software. Flagship One units ship pre-programmed with your VIN, which may eliminate the need for dealer programming.
My car shows DTC P1631 after ECM replacement — what does this mean?
DTC P1631 indicates a programming or relearn error. The factory procedure for this condition specifies performing the 10-minute relearn procedure found in the theft deterrent control module programming section to synchronize the new ECM with your vehicle’s security system.
When your 2016 Chevrolet Caprice’s ECM fails, you face a choice between repair (if feasible) or replacement with a new or refurbished unit. Repair options are limited since the module contains sealed processors and memory. A replacement unit must be programmed with your specific VIN — Flagship One handles this programming before shipping, potentially saving you dealer programming fees. Consider your timeline, budget, and whether you have access to programming equipment when deciding between options.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 Chevrolet Caprice with a lifetime warranty, free shipping and no core charge. The full Chevrolet Caprice module lineup covers other engine configurations as well.
Final Thoughts
The Engine Control Module is a critical component for your 2016 Chevrolet Caprice’s operation, managing engine and transmission functions that affect drivability, emissions, and starting. Understanding the replacement labor, programming requirements, and potential failure symptoms helps you make informed decisions about diagnosis and repair. Whether you choose dealer service or a pre-programmed replacement unit from Flagship One, addressing ECM issues promptly restores your vehicle’s reliability.
