2016 Buick Encore 1.4L PCM and ECM Replacement Guide
The Powertrain Control Module (PCM) and Engine Control Module (ECM) in the 2016 Buick Encore 1.4L manage engine and transmission functions. Failure can cause no-start, stalling, or drivability issues. Internal trouble codes like P0601 indicate module faults.
Quick Summary
- The PCM and ECM are critical for engine and transmission control in the 2016 Buick Encore 1.4L.
- Labor times: PCM/ECM removal and replacement is 0.6 hours; relearn is 0.5 hours; ECM reset is 0.3 hours.
- Before removing the ECM, use a scan tool to capture existing data.
- Factory bulletin #PIP5373B addresses programming errors E4491/E4423.
- Common failure symptoms include no-start, stalling, and trouble codes P0601-P0630.
If your 2016 Buick Encore 1.4L is experiencing drivability problems or warning lights, the Powertrain Control Module (PCM) or Engine Control Module (ECM) may be at fault. These modules are the brain of your vehicle’s engine and transmission systems. This guide covers what these modules do, common failure symptoms, replacement labor times, and the programming steps required after installation. You’ll also learn about factory service bulletins and how a pre-programmed replacement can simplify the repair.
What the PCM Does in a 2016 Buick Encore
The Powertrain Control Module (PCM) in the 2016 Buick Encore 1.4L integrates engine and transmission control into a single unit, while the Engine Control Module (ECM) focuses solely on engine management. These modules process sensor inputs to adjust fuel delivery, ignition timing, and shift points. When they fail, the vehicle may not start, run poorly, or trigger diagnostic trouble codes. For a direct replacement, consider replacement ECMs for the Encore that come pre-programmed to match your vehicle’s VIN, eliminating the need for dealer-level programming. Understanding the role of these modules helps you diagnose issues accurately and choose the right repair path.

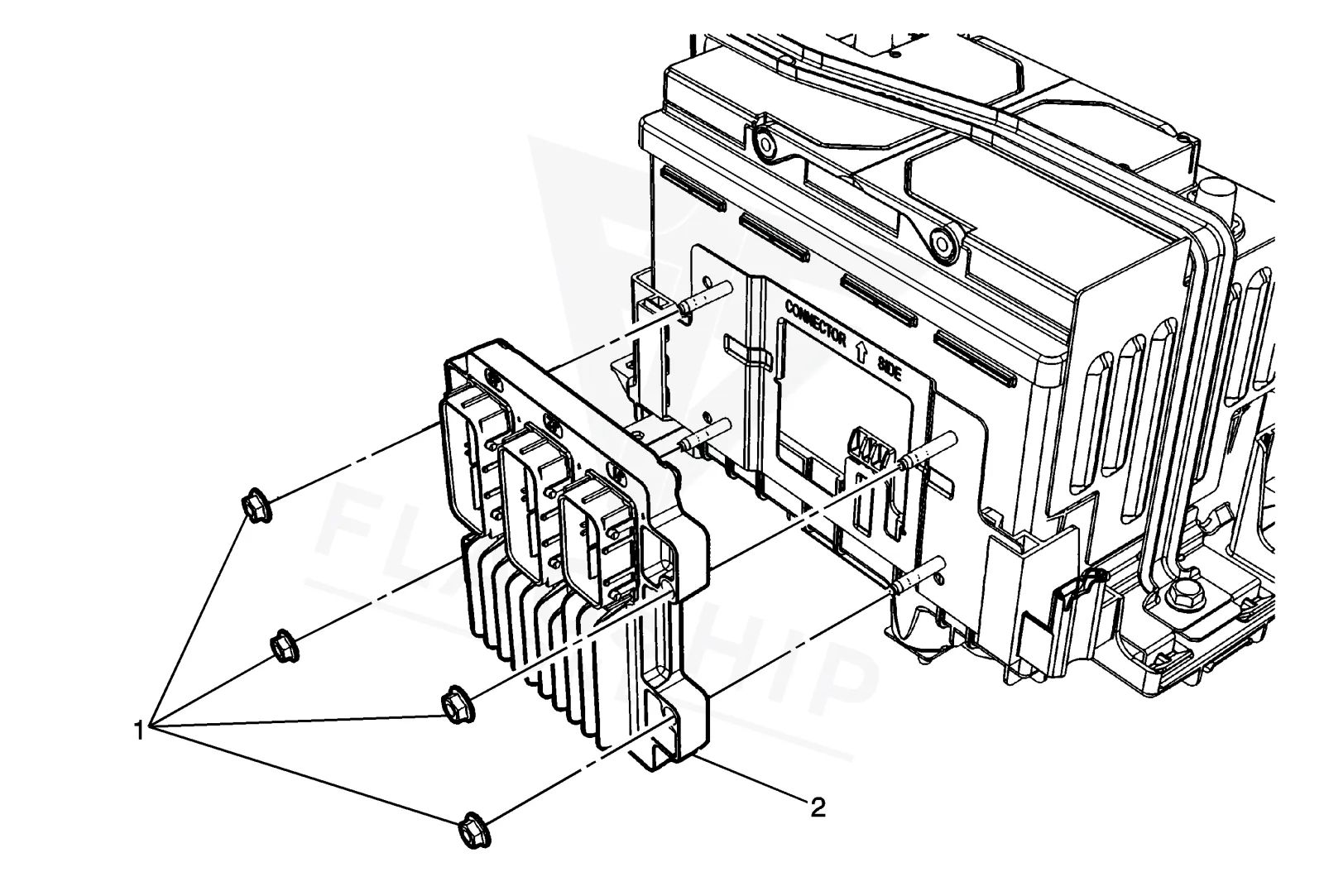

Where the PCM Is Located and What Replacement Involves
The installation procedure for the PCM/ECM on the 2016 Buick Encore 1.4L involves removing the old module and installing the new one. The factory labor time for Powertrain Control Module removal and replacement is 0.6 hours, and for Engine Control Module removal and replacement is also 0.6 hours. A relearn procedure is required after replacement, taking 0.5 hours for the PCM or ECM. Additionally, an ECM reset is listed at 0.3 hours. Before removal, the scan tool should be used to capture ECM data. The module’s exact location is not specified in the available service data, but the labor times suggest it is accessible without major disassembly.
How to Reach the PCM on the 2016 Buick Encore
- Disconnect the negative battery cable.
- Remove any debris from around the control module connector.
- Disconnect the electrical connector.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 0.6 hr |
Programming Requirements After Replacement
After replacing the PCM or ECM on the 2016 Buick Encore 1.4L, the factory procedure requires a Powertrain Control Module Relearn (0.5 hours) or Engine Control Module Relearn (0.5 hours) and an ECM Reset (0.3 hours). However, when you choose a VIN-programmed replacement unit from Flagship One, these programming steps are already completed, so the module is plug-and-play. This saves you the labor time and ensures the module is correctly configured for your vehicle’s VIN, avoiding common programming errors like those addressed in bulletin #PIP5373B.
Symptoms of a Failing PCM
Common symptoms of a failing ECM in the 2016 Buick Encore 1.4L include no-start conditions, stalling, misfire codes, and loss of communication with the scan tool. One specific trouble code that may appear is P0601 internal control module error, which indicates an internal ECM fault. Other codes such as P0602, P0603, P0604, P0606, P062B, P062F, and P0630 are also documented for this vehicle. These symptoms often point to a module that needs replacement rather than a simple sensor issue.
Module Trouble Codes on the 2016 Buick Encore
The following diagnostic trouble codes are documented for the PCM/ECM in the 2016 Buick Encore 1.4L. These codes indicate internal module faults that typically require module replacement.
Factory Service Bulletins Worth Knowing
Factory service bulletin #PIP5373B (dated June 11, 2018) addresses a programming error that occurs during ECM programming, resulting in error codes E4491 or E4423. This bulletin provides guidance for technicians to resolve these errors, which may involve reflashing the module or replacing it if the error persists. Using a pre-programmed module from Flagship One can help avoid these programming-related issues.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Program ECM Error E4491/E4423 – (Jun 11, 2018) | — |
Protecting the PCM in Your 2016 Buick Encore
- Maintain a healthy charging system; voltage spikes from a failing alternator can damage the ECM.
- Keep all ground connections and module connectors clean and tight to prevent corrosion.
- Avoid jump-starting the vehicle with incorrect polarity or using a high-voltage booster.
- Address any diagnostic trouble codes promptly to prevent further module stress.
- Inspect the module’s connector seals for damage to keep moisture out.
Frequently Asked Questions
What are the labor times for replacing the PCM on a 2016 Buick Encore 1.4L?
The factory labor time for Powertrain Control Module removal and replacement is 0.6 hours. A PCM relearn takes an additional 0.5 hours. These times are for the module itself, not including diagnosis or other repairs.
Do I need to program the ECM after replacement on my 2016 Buick Encore?
Yes, the factory procedure requires an ECM relearn (0.5 hours) and an ECM reset (0.3 hours) after replacement. However, if you purchase a VIN-programmed unit from Flagship One, these steps are already completed, saving you time and labor.
What does trouble code P0601 mean for a 2016 Buick Encore?
P0601 is an internal control module memory error. It indicates a fault within the ECM itself, often requiring module replacement. This code is one of several documented for this vehicle, including P0602 through P0630.
When your 2016 Buick Encore 1.4L needs a new PCM or ECM, you have two options: repair the existing module or replace it with a refurbished unit. Repair is rarely cost-effective for internal faults. A pre-programmed replacement from Flagship One ensures compatibility and eliminates the need for dealer programming, making the repair straightforward.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 Buick Encore with a lifetime warranty, free shipping and no core charge. The full Buick Encore module lineup covers other engine configurations as well.
Final Thoughts
The 2016 Buick Encore 1.4L relies on its PCM and ECM for proper engine and transmission operation. Recognizing failure symptoms and understanding replacement labor times helps you plan the repair. Choosing a VIN-programmed module from Flagship One simplifies the process and gets your vehicle back on the road quickly.
