2014 Toyota Venza Engine Control Module Replacement and Programming
The engine control module in the 2014 Toyota Venza manages fuel delivery, ignition timing, and emissions functions for the 2.7L powertrain. When this module fails, it may cause no-start conditions, stalling, or illuminated warning lights. Diagnostic trouble code P0606 indicates an internal processor fault within the module itself.
Quick Summary
- The 2.7L Venza PCM and ECM share the same removal and replacement book time of 1.2 hours
- Negative battery cable disconnection is required before accessing the module
- VIN registration must be performed after installing a replacement ECM
- Trouble code P0606 points to an internal control module processor failure
- Certain vehicle systems require initialization once the battery cable is reattached
When your 2014 Toyota Venza experiences drivability problems traced to the engine computer, understanding the replacement process helps you make informed repair decisions. The powertrain control module serves as the central brain for your vehicle’s 2.7L engine, regulating critical functions from fuel injection to emissions control. Module failures often surface as starting difficulties, unexpected stalling, or communication errors during diagnostic scanning. This guide walks through what the module does, where it sits in your Venza, what the factory requires after installation, and how a pre-programmed unit can simplify the repair. Knowing the labor times, access procedures, and post-install steps gives you confidence whether you are handling the replacement yourself or coordinating with a technician. The information here applies specifically to the 2.7L version of the 2014 Venza, which carries different labor times than the 3.5L variant.
What the PCM Does in a 2014 Toyota Venza
The engine control module in your 2014 Toyota Venza acts as the primary computer overseeing the 2.7L engine’s operation. It continuously reads input from sensors monitoring throttle position, coolant temperature, oxygen levels, and crankshaft rotation, then adjusts fuel injector pulse width and ignition timing accordingly. The module also manages idle speed control, evaporative emissions testing, and communication with the transmission controller. When the internal processor degrades or loses memory integrity, drivability suffers and diagnostic codes may appear. A failing module can trigger intermittent stalling, rough idle, or a complete failure to start. In some cases the check engine light illuminates with no other obvious symptoms, while in others the vehicle may not communicate with a scan tool at all. Sourcing quality replacement engine computers for the Venza ensures that the new module matches your vehicle’s calibration and is ready for the VIN registration step Toyota specifies after installation. The 2.7L powertrain relies on this computer for virtually every running function, so a properly matched unit is essential for restoring normal operation.
Where the PCM Is Located and What Replacement Involves
To access the engine control module in your 2014 Toyota Venza, the negative battery cable must first be detached. This step prevents electrical damage during removal and is a factory-specified requirement before any module service. The book time for removing and reinstalling the module on the 2.7L engine is 1.2 hours, while the 3.5L variant carries a shorter time of 0.5 hours due to different access constraints. After the battery is secured, the technician locates the module, disconnects the wiring harness connectors, and transfers the unit from its mounting position. Reinstallation reverses these steps, and the negative battery cable is reconnected once the new module is seated. Because disconnecting the battery resets certain systems, the factory notes that some vehicle systems require initialization once power is restored. The engine control module relearn procedure carries an additional 0.5 hours of book time. These times reflect the published labor estimates for this specific vehicle and engine combination.

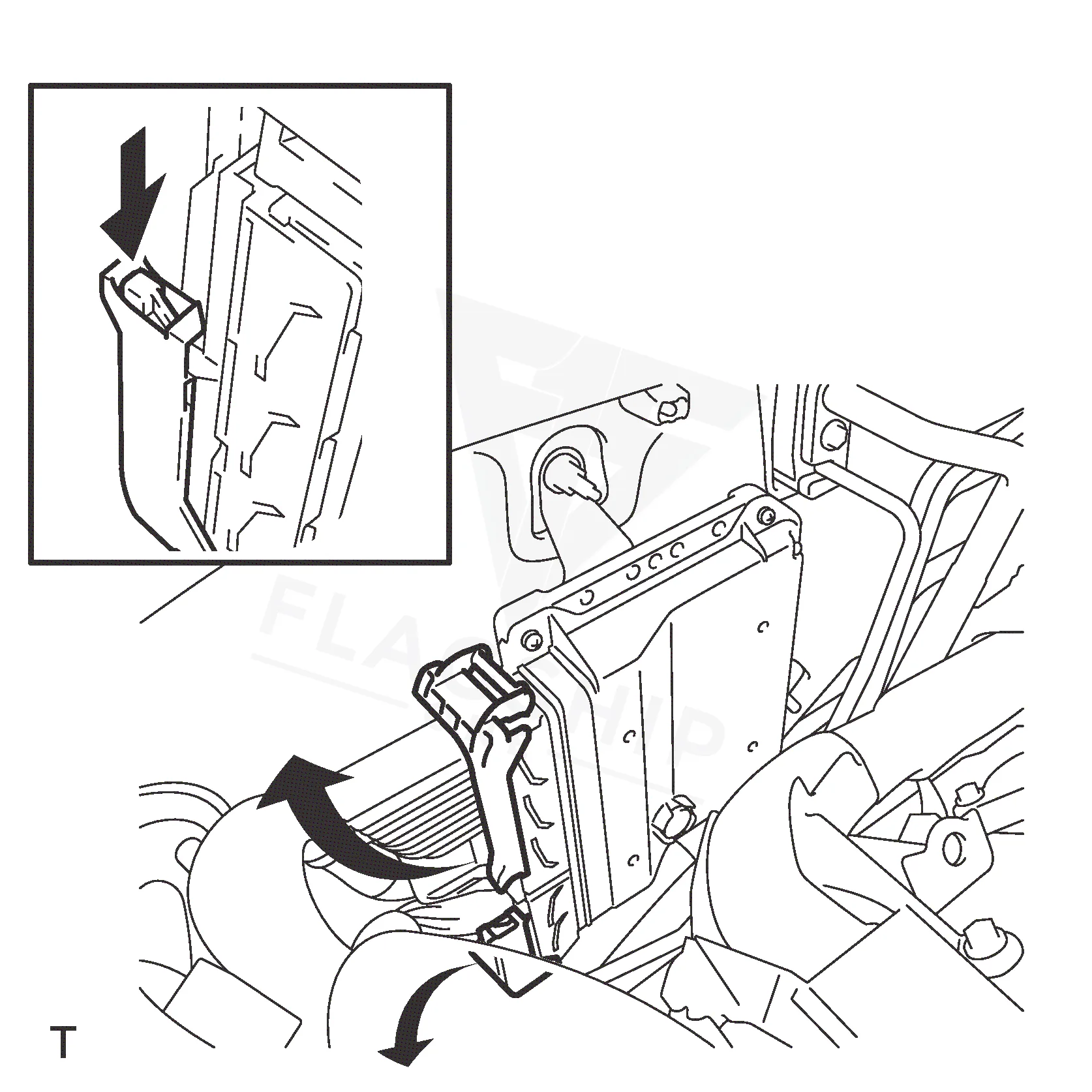

How to Reach the PCM on the 2014 Toyota Venza
- Disconnect cable from negative battery terminal.
- REMOVE V-BANK COVER SUB-ASSEMBLY More Info.
- Disconnect the 2 ECM connectors and remove the ECM with the brackets.
- Remove the 3 nuts and separate the ECM with the brackets.
- Remove the 4 screws and 2 ECM brackets.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 2.7L | 1.2 hr |
| Powertrain Control Module R&R | 3.5L | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | 2.7L | 1.2 hr |
| Engine Control Module R&R | 3.5L | 0.5 hr |
Programming Requirements After Replacement
Toyota specifies that VIN registration must be performed whenever the engine control module is replaced in the 2014 Venza. This procedure writes your vehicle’s unique identification number into the new module so that it communicates correctly with other onboard systems and the diagnostic port. Additionally, the factory warns that detaching the negative battery cable may require initialization of certain vehicle systems once power is restored. When you install a VIN-programmed replacement unit from Flagship One, the VIN registration is already completed before the module ships, so that particular factory step does not need to be repeated. The relearn procedure, which carries 0.5 hours of book time, may still be necessary depending on how your vehicle responds after the battery is reconnected. Following the initialization steps Toyota outlines helps ensure all systems recognize the new module and resume normal operation.
Symptoms of a Failing PCM
Engine control module failures in the 2014 Toyota Venza can produce a range of symptoms that often overlap with other drivability issues. A common sign is a no-start condition where the engine cranks but never fires, or fails to crank at all. Some drivers experience stalling at idle or while driving, sometimes accompanied by a rough running condition before the engine quits. Misfire codes may appear even when the ignition components and fuel system check out fine. In other cases, a scan tool cannot establish communication with the module, which points directly to a computer failure rather than a sensor or wiring problem. The check engine light may illuminate and store internal ECM processor fault code P0606, indicating that the module’s own diagnostics have detected a malfunction within its circuitry. Transmission shifting irregularities can also surface since the engine computer shares data with the transmission controller. Because these symptoms can mimic fuel pump, ignition, or sensor failures, proper diagnosis is essential before replacing the module.
Module Trouble Codes on the 2014 Toyota Venza
The following trouble code has been documented for the 2014 Toyota Venza as a module-internal fault. This means the code originates within the engine control module itself rather than from an external sensor or actuator. Reviewing this information helps confirm whether module replacement is the appropriate repair path.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2014 Toyota Venza
- Maintain a healthy charging system to prevent voltage spikes that can damage the module’s internal circuitry
- Keep battery terminals clean and tight to avoid intermittent power interruptions
- Avoid jump-starting from vehicles with incompatible voltage systems or reversed connections
- Address stored trouble codes promptly to prevent compounding electrical issues
- Inspect wiring harness connectors for corrosion and ensure sealing grommets stay intact
- Have the battery tested periodically, as a weak battery stresses the charging system and module
Frequently Asked Questions
How long does it take to replace the engine control module in a 2014 Toyota Venza with the 2.7L engine?
The published book time for removing and reinstalling the module on the 2.7L Venza is 1.2 hours. An additional 0.5 hours applies for the relearn procedure. The 3.5L variant carries a shorter R&R time of 0.5 hours due to different access requirements.
Does the 2014 Toyota Venza require VIN registration after ECM replacement?
Yes, Toyota specifies that VIN registration must be performed whenever the engine control module is replaced. This step ensures the new module integrates properly with the vehicle’s other systems. A VIN-programmed unit from Flagship One arrives with this step already completed.
What does trouble code P0606 mean on a 2014 Toyota Venza?
P0606 indicates an internal processor fault within the engine control module itself. This code suggests the module’s own self-diagnostics detected a malfunction in its circuitry. Unlike sensor-related codes, P0606 typically points to module replacement rather than external component repair.
If your 2014 Toyota Venza shows signs of engine computer failure, you have two main paths: repair the existing module or replace it with a refurbished, pre-programmed unit. Repairing may suit minor issues, but internal processor faults often call for replacement. A VIN-programmed module from Flagship One eliminates the VIN registration step and arrives ready to install, saving time and reducing the chance of post-install complications specific to your Venza’s 2.7L powertrain.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2014 Toyota Venza with a lifetime warranty, free shipping and no core charge. The full Toyota Venza module lineup covers other engine configurations as well.
Final Thoughts
The 2014 Toyota Venza depends on a healthy engine control module for proper fuel management, emissions control, and overall drivability. With 1.2 hours of labor for module replacement on the 2.7L engine and a factory-mandated VIN registration step, planning the repair carefully helps ensure a smooth outcome. A pre-programmed replacement from Flagship One simplifies the process by handling the VIN registration before shipping.
