2014 Mitsubishi Outlander PCM and ECM Service Guide
In the 2014 Mitsubishi Outlander the Powertrain Control Module and Engine Control Module manage engine timing, fuel delivery, and transmission shift logic. Failure of either unit can cause loss of power, stalling, or inability to engage gears, often prompting diagnostic trouble codes and loss of communication with scan tools.
Quick Summary
- Removal typically requires only the air cleaner assembly to be taken off.
- Factory labor times list 0.5 hours for a 2.4 L PCM replacement.
- ECM replacement is quoted at 1.1 hours for removal and install.
- Never replace the ECM and immobilizer ECU at the same time without proper ID registration.
- Flagship One units arrive VIN‑programmed, eliminating post‑install coding steps.
When a 2014 Mitsubishi Outlander begins to exhibit no‑start conditions, rough idle, or unexpected shift behavior, the powertrain and engine control modules are often the first suspects. These electronic brains coordinate fuel injection, ignition timing, and transmission actuation, so any fault can quickly manifest as drivability problems. This guide walks you through what the modules do in this specific model, where they sit, how long a dealer‑level removal typically takes, and what programming is required after a replacement. By the end, you should understand the practical steps involved, the cautions that protect vehicle electronics, and why a VIN‑programmed replacement from Flagship One can simplify the job.
What the PCM Does in a 2014 Mitsubishi Outlander
The Powertrain Control Module in the 2014 Mitsubishi Outlander oversees both engine and transmission commands, translating sensor data into precise fuel and gear‑shift decisions. It works in concert with the Engine Control Module, which focuses on ignition timing, fuel metering, and emission controls. Together they ensure the engine runs smoothly across the speed range and that the continuously variable transmission shifts at optimal points. Maintaining accurate data flow between these units is essential for fuel efficiency and emissions compliance. For owners needing a swap, replacement powertrain computers for the Outlander provide a direct fit and retain the vehicle’s calibrated parameters.
Where the PCM Is Located and What Replacement Involves

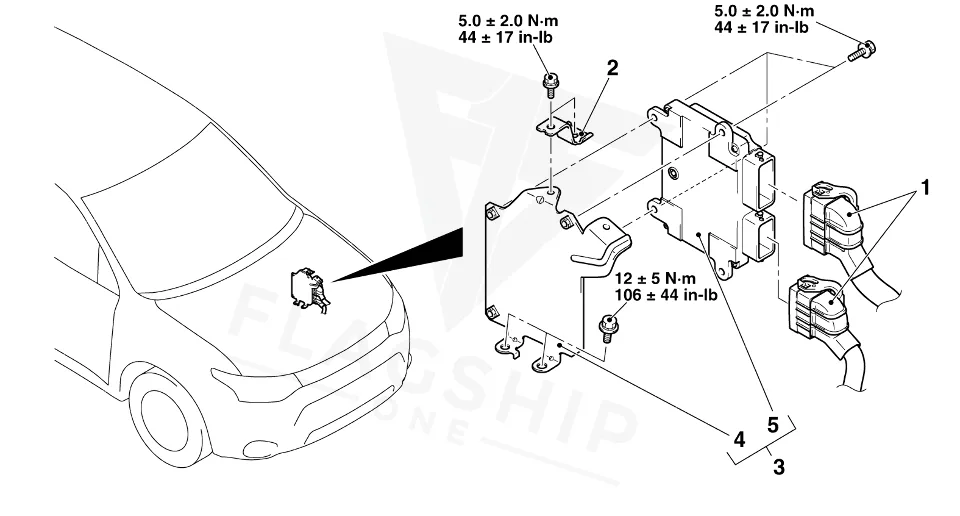

The control module sits beside the air cleaner assembly, making the factory removal path straightforward. Technicians first detach the air cleaner to gain access, then disconnect the wiring harnesses before extracting the module. Labor guidance lists 0.5 hours for removing and reinstalling the 2.4 L PCM and 1.1 hours for the ECM. After the module is positioned, connectors are reattached and the air cleaner assembly is reinstalled to complete the mechanical portion of the job.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 3.0L | 1.1 hr |
| Powertrain Control Module R&R | 2.4L | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.1 hr |
Programming Requirements After Replacement
Once the new unit is in place, the factory procedure calls for a VIN write operation using the GROUP 00 instructions, followed by any required relearn cycles for the powertrain and engine controls. A Flagship One replacement arrives already VIN‑programmed, so the VIN write step is satisfied, and the unit is ready for the standard relearn steps. This reduces shop time and ensures the vehicle’s identification data matches the replacement. a VIN‑programmed replacement unit eliminates the need for manual VIN entry during installation.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in the 2014 Outlander include an engine that will not start, intermittent stalling while cruising, rough idle, or unexpected loss of power during acceleration. Drivers may also notice irregular shifting behavior from the CVT, such as delayed or harsh gear changes. Diagnostic trouble codes often appear as communication failures or sensor mismatches, and the scan tool may lose link with the control network entirely. Addressing these symptoms promptly can prevent further drivetrain stress.
Protecting the PCM in Your 2014 Mitsubishi Outlander
- Keep the charging system healthy by inspecting the alternator and battery regularly.
- Ensure all ground straps and connector pins are clean and firmly seated.
- Avoid large voltage spikes from jump‑starts or improper battery connections.
- Promptly address any diagnostic trouble codes that appear during routine scans.
- Inspect connector seals for wear and replace if moisture intrusion is possible.
- Maintain regular service intervals for the air intake system to keep the access path clear.
Frequently Asked Questions
What are the typical labor hours for replacing the PCM in a 2014 Mitsubishi Outlander?
Factory labor guidelines assign about half an hour for removal and installation of the 2.4 L PCM on this model.
Can I replace the ECM and the immobilizer ECU at the same time on my Outlander?
It is advised not to replace both simultaneously; the ECM should be swapped first, then the immobilizer ECU after the necessary ID registration.
Do I need special tools to access the control module in the 2014 Outlander?
The module is reachable by removing the air cleaner assembly, which typically requires standard hand tools and the appropriate disconnectors.
What programming steps are required after installing a new PCM?
After installation, the vehicle requires a VIN write using the GROUP 00 procedure and the standard powertrain relearn cycles.
How does a VIN‑programmed replacement from Flagship One simplify the repair?
The unit arrives with the vehicle identification number already written, so the VIN write step is completed before installation, reducing shop time.
When the powertrain or engine control module fails in your 2014 Mitsubishi Outlander, you can choose a brand‑new factory‑spec unit or a refurbished replacement that meets the same specifications. Both options restore the vehicle’s electronic management, but a VIN‑programmed unit from Flagship One eliminates the need for on‑site VIN entry and helps you get back on the road faster.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2014 Mitsubishi Outlander with a lifetime warranty, free shipping and no core charge. The full Mitsubishi Outlander module lineup covers other engine configurations as well.
Final Thoughts
The 2014 Mitsubishi Outlander’s PCM and ECM are critical to reliable performance. Whether you opt for a new or refurbished replacement, following the proper removal, installation, and programming steps ensures the vehicle returns to normal operation. Consider a VIN‑programmed unit to streamline the process and reduce downtime.
