2014 Lincoln MKZ Hybrid Engine and Powertrain Control Module Guide
The Powertrain Control Module acts as the primary computer for your 2014 Lincoln MKZ Hybrid. It manages engine timing, fuel delivery, and hybrid system integration. When this hardware fails, the vehicle may experience severe performance issues or a complete failure to start.
Quick Summary
- Coordinates the transition between electric and gasoline power
- Internal processor failures often trigger specific fault codes
- Replacement for the 2.0L engine involves a 0.8 hour labor time
- Post-installation relearn procedures are typically required
Owning a 2014 Lincoln MKZ Hybrid means relying on a complex blend of electrical and mechanical engineering. At the center of this system is the Powertrain Control Module, a computer that dictates how your vehicle accelerates, shifts, and manages fuel. When this module begins to fail, it can create a confusing array of symptoms that range from minor performance dips to a complete inability to start. For many owners, the prospect of replacing a vehicle computer seems daunting due to the programming requirements and technical complexity involved. This guide is designed to help you understand exactly what the PCM does, how to recognize the signs of its failure, and what the replacement process entails. By understanding the role of this module and the labor involved in its installation, you can make an informed decision about your repair strategy. You will learn about the specific book times for the 2.0L engine and how to avoid the common pitfalls associated with module programming, ensuring your hybrid returns to its peak efficiency.
What the PCM Does in a 2014 Lincoln MKZ Hybrid
The Powertrain Control Module serves as the central intelligence for the 2014 Lincoln MKZ Hybrid. This sophisticated computer is responsible for managing the seamless transition between the electric motor and the internal combustion engine. By monitoring a vast array of sensors, it adjusts fuel trim and ignition timing in real time to maximize efficiency. This level of precision is vital because the hybrid system requires exact synchronization to avoid jarring shifts in power delivery. If you are looking for replacement PCM units for the 2014 Lincoln MKZ Hybrid, you will find that these components are essential for regulating the emissions and performance of the 2.0L engine. The module also handles the communication between the transmission and the engine, ensuring that the vehicle accelerates smoothly. Beyond simple engine management, the PCM monitors the health of the hybrid battery and coordinates charging cycles through regenerative braking. When the internal logic of the module fails, the vehicle may lose its ability to communicate with other onboard systems, which often results in a loss of propulsion. This makes the PCM one of the most critical electronic components in the entire vehicle, as it dictates exactly how the hardware interacts to provide a cohesive driving experience. Without a functioning module, the hybrid’s ability to optimize fuel consumption is completely lost.
Where the PCM Is Located and What Replacement Involves
The Powertrain Control Module in the 2014 Lincoln MKZ Hybrid is positioned to allow access for technicians to perform diagnostics and replacements. For vehicles equipped with the 2.0L engine, the removal and replacement of the engine control module is estimated at 0.8 hours. Similarly, the powertrain control module removal and replacement for the 2.0L engine is also listed at 0.8 hours. The process involves disconnecting the battery to prevent electrical surges and carefully removing the wiring harnesses from the module’s pins. It is important to inspect the connectors for corrosion or bent pins during this process to ensure a secure connection. Because the module is a sensitive electronic component, handling it with care is essential to avoid electrostatic discharge. Once the new unit is seated and the bolts are torqued to specification, the technician will typically verify the connection before proceeding to the necessary software synchronization steps.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | 2.0L | 0.8 hr |
| Engine Control Module R&R | 3.7L | 0.7 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | 2.0L | 0.8 hr |
| Powertrain Control Module R&R | 3.7L | 0.7 hr |
Programming Requirements After Replacement
Once a new module is installed in your 2014 Lincoln MKZ Hybrid, the factory requires specific software procedures to ensure the vehicle operates correctly. This typically involves a PCM relearn process, which is listed at 0.5 hours, and an engine control module relearn, also taking 0.5 hours. Additionally, a module reset may be performed, which takes 0.3 hours. These steps are necessary to synchronize the new hardware with the existing vehicle sensors. However, the most tedious part of the process is the initial VIN programming. By choosing a VIN-programmed replacement PCM, you eliminate the need for these initial configuration steps. Flagship One provides units that are already programmed to your specific vehicle identification number. This means the module is ready to function immediately upon installation, significantly reducing the time your vehicle spends in the shop and ensuring that the hybrid system integrates perfectly with the new hardware from the first start.
Symptoms of a Failing PCM
Identifying a failing Powertrain Control Module in a 2014 Lincoln MKZ Hybrid often begins with erratic vehicle behavior. You may notice that the car struggles to start or suddenly stalls while idling at a stop. In many cases, the vehicle enters a limp home mode, where engine power is severely restricted to prevent further damage. You might also experience intermittent misfires or a noticeable lack of acceleration, as the computer fails to properly time the spark or fuel delivery. A common indicator of a hardware failure is the presence of an internal processor fault P0606, which suggests that the module’s internal logic has failed its own self-test. This specific error often means the computer can no longer trust its own calculations. Furthermore, you may find that a scan tool cannot communicate with the PCM, leaving you with a dead connection during diagnostics. Shifting issues are also common, as the hybrid system may fail to transition smoothly between electric and gasoline power. These symptoms typically appear without warning and can vary from a slight shudder during acceleration to a complete electrical shutdown of the powertrain. Because the PCM manages so many variables, these failures often mimic other mechanical issues, making accurate diagnostic codes essential for a correct repair.
Module Trouble Codes on the 2014 Lincoln MKZ Hybrid
The 2014 Lincoln MKZ Hybrid uses specific diagnostic trouble codes to identify internal hardware failures. The following code is documented as a module-internal fault for this vehicle.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2014 Lincoln MKZ Hybrid
- Maintain a healthy charging system to prevent voltage drops
- Keep ground connections clean and free of oxidation
- Avoid using jump-start methods that cause voltage spikes
- Address any powertrain fault codes immediately
- Ensure all module connector seals remain intact
- Prevent moisture and debris from accumulating near the PCM
Frequently Asked Questions
Does the 2014 Lincoln MKZ Hybrid require a relearn after PCM replacement?
Yes, the factory specifies both a PCM relearn and an ECM relearn. Each of these processes is estimated to take 0.5 hours.
How long does it take to replace the PCM on a 2.0L engine?
The book time for the removal and replacement of the 2.0L powertrain control module is 0.8 hours.
What does the P0606 code indicate for this vehicle?
This code typically signifies an internal processor fault. It means the PCM’s internal circuitry is malfunctioning and cannot pass its self-test.
Can a failing PCM cause the hybrid system to behave erratically?
Yes, a faulty module may cause poor transitions between the electric motor and the gasoline engine. This often manifests as shuddering or power loss.
Is the labor the same for the 3.7L engine?
No, the removal and replacement for the 3.7L engine is listed at 0.7 hours, whereas the 2.0L engine requires 0.8 hours.
When facing a PCM failure in your 2014 Lincoln MKZ Hybrid, you have a choice between attempting a complex board repair or opting for a professional replacement. Given the critical role this computer plays in hybrid synchronization, a high-quality replacement is often the most reliable path. This ensures that the internal processor faults are fully resolved and that your vehicle returns to factory performance standards without the risk of recurring errors.

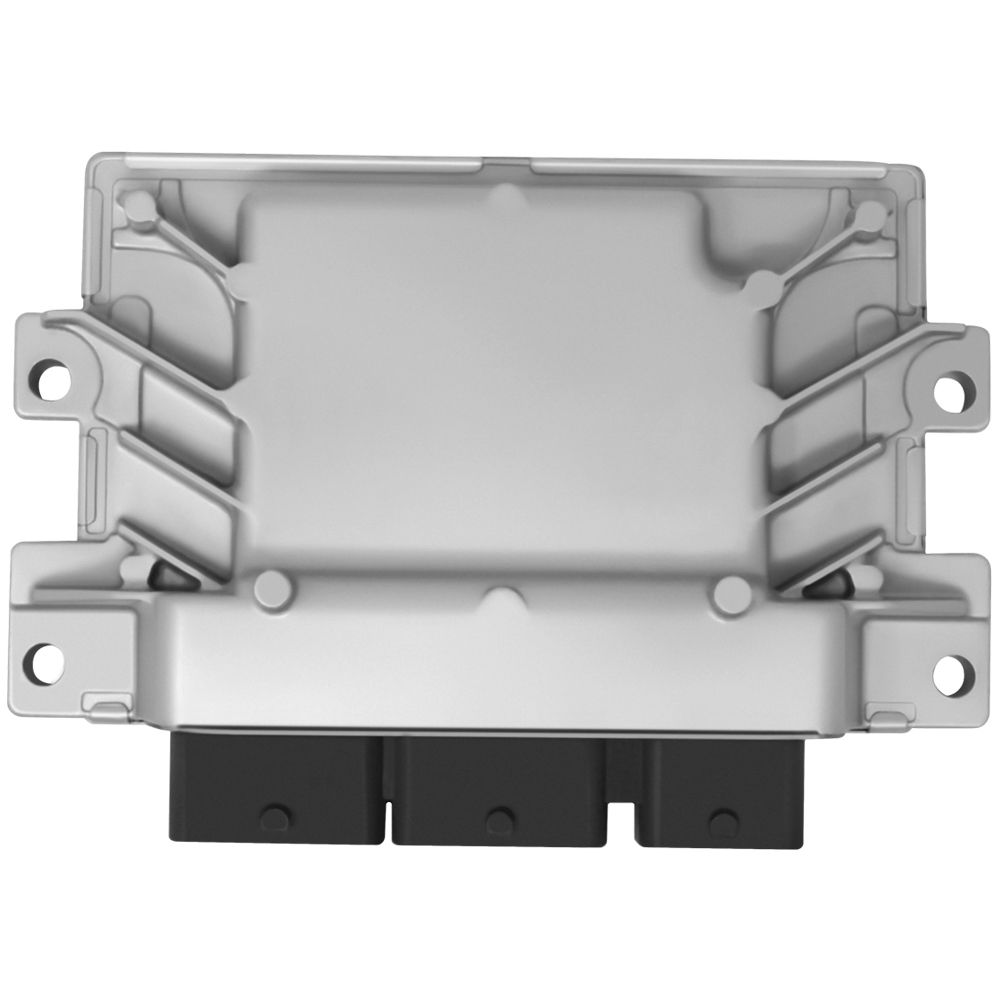

Flagship One stocks a refurbished, VIN-programmed PCM for the 2014 Lincoln MKZ Hybrid with a lifetime warranty, free shipping and no core charge. The full Lincoln MKZ Hybrid module lineup covers other engine configurations as well.
Final Thoughts
Correcting a failed Powertrain Control Module is essential for the continued reliability of your 2014 Lincoln MKZ Hybrid. By addressing symptoms like stalling or the P0606 code promptly, you protect the rest of your powertrain from secondary damage. Choosing a pre-programmed unit can simplify the repair and get you back on the road faster. We recommend consulting a certified technician to ensure a precise installation.
