2013 Lincoln Navigator L PCM Replacement & Programming Guide
The Powertrain Control Module on your 2013 Lincoln Navigator L serves as the central computer managing engine and transmission functions. When this module fails, it can disrupt fuel delivery, ignition timing, and transmission shifting, leaving the vehicle inoperable or causing drivability concerns that require prompt attention.
Quick Summary
- The PCM controls essential engine and transmission operations on the 2013 Lincoln Navigator L
- Module replacement labor includes 0.8 hours for R&R plus 0.5 hours for relearn procedures
- Factory programming requires EEPROM reprogramming of the VID block for replacement units
- Module-internal code P0606 indicates processor faults that may trigger no-start conditions
- Flagship One replacement units arrive VIN-programmed, eliminating post-install programming steps
If your 2013 Lincoln Navigator L is experiencing starting issues, stalling, or unexpected transmission behavior, the Powertrain Control Module may be the culprit. This comprehensive guide explains what the PCM does, how failures manifest, and what replacement involves for this full-size luxury SUV. You will gain clarity on whether your vehicle symptoms point to module failure, understand the factory service procedures required after replacement, and learn why choosing a pre-programmed replacement unit from Flagship One can streamline your repair. Whether you are a DIY technician or seeking to understand what a shop will do, this resource provides the factual foundation you need to make informed decisions about your Navigator’s computer system.
What the PCM Does in a 2013 Lincoln Navigator L
The Powertrain Control Module on your 2013 Lincoln Navigator L is the primary computer responsible for managing the engine and powertrain. This unit processes inputs from dozens of sensors throughout the vehicle and uses that data to control fuel injection, ignition timing, transmission shift points, emissions systems, and dozens of other functions critical to operation. In the context of the 5.4L engine found in this vehicle, the PCM must coordinate a complex interplay between the fuel injection system, variable valve timing, and the automatic transmission to deliver the smooth, powerful performance expected from a luxury full-size SUV. The module interfaces with the Instrument Cluster, the ABS module, the airbag system, and other body control modules through the CAN bus network, making it a hub of vehicle communication. When this computer fails or develops internal faults, the result can range from subtle drivability issues to a complete no-start condition. Replacement engine computers for the Navigator must be programmed with the specific Vehicle Identification Number and calibration data matching your exact model year and engine configuration to function properly.
Flagship One keeps Lincoln Navigator L replacement engine computers in stock for exactly this failure pattern.
What Replacing the PCM Involves

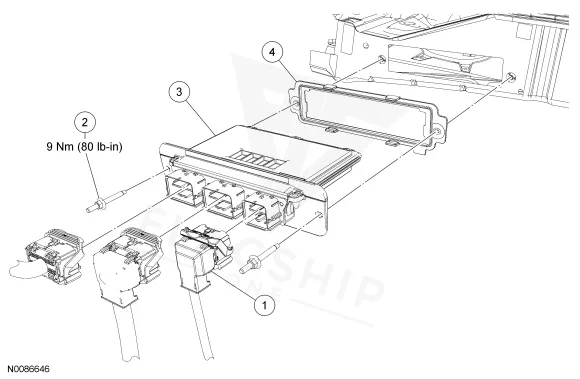

How to Reach the PCM on the 2013 Lincoln Navigator L
- Disconnect the battery ground cable.
- Disconnect the 3 PCM electrical connectors.
- Remove the 2 stud bolts and the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the PCM on your 2013 Lincoln Navigator L, the factory service procedure requires programming the VID block using the Flash EEPROM method outlined in Section 2 of the service documentation. This step writes the Vehicle Identification Number and calibration files into the replacement module, ensuring it communicates correctly with the rest of the vehicle network. The PCM relearn procedure then allows the module to adapt to your specific engine’s characteristics. However, when you purchase a VIN-programmed replacement unit from Flagship One, these programming steps have already been completed at the factory using your provided VIN. The unit arrives ready to install, meaning your technician can proceed directly to the relearn procedure without needing to perform the full EEPROM programming sequence.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the Powertrain Control Module begins to fail on a 2013 Lincoln Navigator L, symptoms often appear gradually before escalating to a no-start condition. Common indicators include intermittent starting or cranking without ignition, engine stalling shortly after startup, and rough idle that may improve temporarily before worsening. Fault codes related to sensor communication failures often appear, and in some cases the scan tool may be unable to communicate with the PCM entirely. Transmission shifting may become harsh, delayed, or unpredictable as the module loses ability to control shift solenoids properly. The check engine light frequently illuminates with multiple pending codes. Module-internal processor faults, such as a processor communication error, often manifest as sudden no-start conditions with no other apparent explanation. If your Navigator runs poorly after being driven normally, or if multiple unrelated codes set simultaneously, the PCM should be considered as a potential root cause.
Module Trouble Codes on the 2013 Lincoln Navigator L
The 2013 Lincoln Navigator L may store module-internal trouble codes that indicate processor or memory failures within the PCM itself. These codes differ from standard sensor or circuit codes in that they point to an internal module fault rather than an external component issue. When the PCM detects an internal processing failure, it typically logs a code and may default to a limp-home mode or cause a no-start condition.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2013 Lincoln Navigator L
- Maintain healthy charging system voltage by testing the alternator output regularly and replacing the battery when it shows signs of weakness, as low voltage can stress the PCM during startup
- Ensure all ground connections to the PCM and related sensors remain clean and tight, using a wire brush on ground points during routine service to prevent corrosion buildup
- Avoid jump-starting the vehicle improperly, as voltage spikes from booster cables can damage the module’s sensitive electronics; always connect cables to the chassis rather than directly to the battery terminals
- Address any check engine lights or drivability concerns promptly rather than ignoring them, as underlying issues can cascade into module damage over time
- Keep engine compartment connectors sealed and protected from moisture intrusion, inspecting boot seals during other service work for cracks or deterioration
- Use quality fuel and keep the fuel system clean, as contaminated fuel can cause operating conditions that stress the PCM’s adaptive strategies
Frequently Asked Questions
Will a used PCM from a salvage yard work in my 2013 Lincoln Navigator L?
A used PCM requires programming to match your specific VIN and calibration, which typically requires dealer-level software or a professional tuning tool. The cost and complexity of programming often exceeds the savings realized by purchasing a used unit, and salvage modules may have unknown internal damage.
Can my 2013 Lincoln Navigator L start if the PCM has failed?
A failed PCM typically prevents the vehicle from starting because it controls the fuel injection and ignition systems. Some vehicles may enter a no-start condition with all electrical systems appearing normal, which is a strong indicator of PCM failure rather than a dead battery or empty fuel tank.
How do I know if my Navigator needs a PCM replacement or just reprogramming?
If the module is physically damaged, has water intrusion, or shows internal fault codes like processor failures, replacement is necessary. If the module is functional but has lost its calibration or VIN data, reprogramming may suffice; however, internal codes often indicate hardware-level problems requiring replacement.
Does replacing the PCM require any special tools for the 2013 Lincoln Navigator L?
A professional-grade scan tool capable of performing PCM relearn procedures is required after replacement. The factory programming procedure references the Flash EEPROM method, which typically requires dealer software or equivalent third-party programming equipment.
Can I drive my Navigator with a failing PCM to get it repaired?
Driving with a compromised PCM is not recommended because it may cause unpredictable stalling, loss of transmission control, or a complete no-start condition away from home. If symptoms are mild and the vehicle starts reliably, short trips to a repair facility may be acceptable, but extended operation carries risk of strandings.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2013 Lincoln Navigator L with a lifetime warranty, free shipping and no core charge. The full Lincoln Navigator L module lineup covers other engine configurations as well.
Final Thoughts
The Powertrain Control Module is the brain of your 2013 Lincoln Navigator L, and failure of this component can leave you stranded or facing expensive repairs. Understanding the symptoms, replacement procedures, and programming requirements empowers you to make informed service decisions. Whether you choose dealer service or a VIN-programmed replacement from Flagship One, addressing PCM issues promptly restores your Navigator’s reliability and performance.
