2013 Lexus IS350 Powertrain and Engine Control Module Replacement Guide
In the 2013 Lexus IS350, the powertrain control module and engine control module manage engine timing, fuel delivery, and transmission shift logic. A failure in either unit can disrupt ignition, cause stalling, or generate diagnostic codes such as P0606, indicating internal communication problems.
Quick Summary
- PCM and ECM removal each require about 0.7 labor hours.
- Access is gained by disconnecting the cable from the negative battery terminal.
- After replacement, a 0.5‑hour relearn procedure is typically needed.
- Flagship One units arrive pre‑programmed, eliminating the relearn step.
When a 2013 Lexus IS350 begins to exhibit no‑start conditions, rough idle, or unexpected shift behavior, the underlying cause often traces back to the vehicle’s control computers. This guide explains what the powertrain control module (PCM) and engine control module (ECM) do, how they are accessed, and what steps are required after a replacement. By the end, you will understand the labor involved, the importance of proper programming, and how a Flagship One replacement can simplify the process.
What the PCM Does in a 2013 Lexus IS350
The powertrain control module and engine control module in a 2013 Lexus IS350 act as the vehicle’s central nervous system, processing sensor data to control fuel injection, ignition timing, and transmission shifts. They ensure the engine runs smoothly and that power is delivered efficiently. When either computer fails, the engine may refuse to start or run erratically, leading to diagnostic trouble codes. Proper operation is essential for emissions compliance and drivability. For owners seeking a new unit, replacement engine control modules for the 2013 Lexus IS350 provide a direct swap with factory specifications.
Where the PCM Is Located and What Replacement Involves
Both the PCM and ECM are located within the engine compartment and are secured with mounting bolts. To reach either module, you must first disconnect the cable attached to the negative battery terminal, which clears stored voltage and protects the electronics. Removal of the module typically takes about 0.7 labor hours per unit, according to the manufacturer’s book time. Reinstallation follows the same steps in reverse, ensuring all connectors are seated firmly before reapplying battery power.
How to Reach the PCM on the 2013 Lexus IS350
- REMOVE COOL AIR INTAKE DUCT SEAL More Info REMOVE ENGINE ROOM SIDE COVER LH More Info.
- Remove ECM cover.

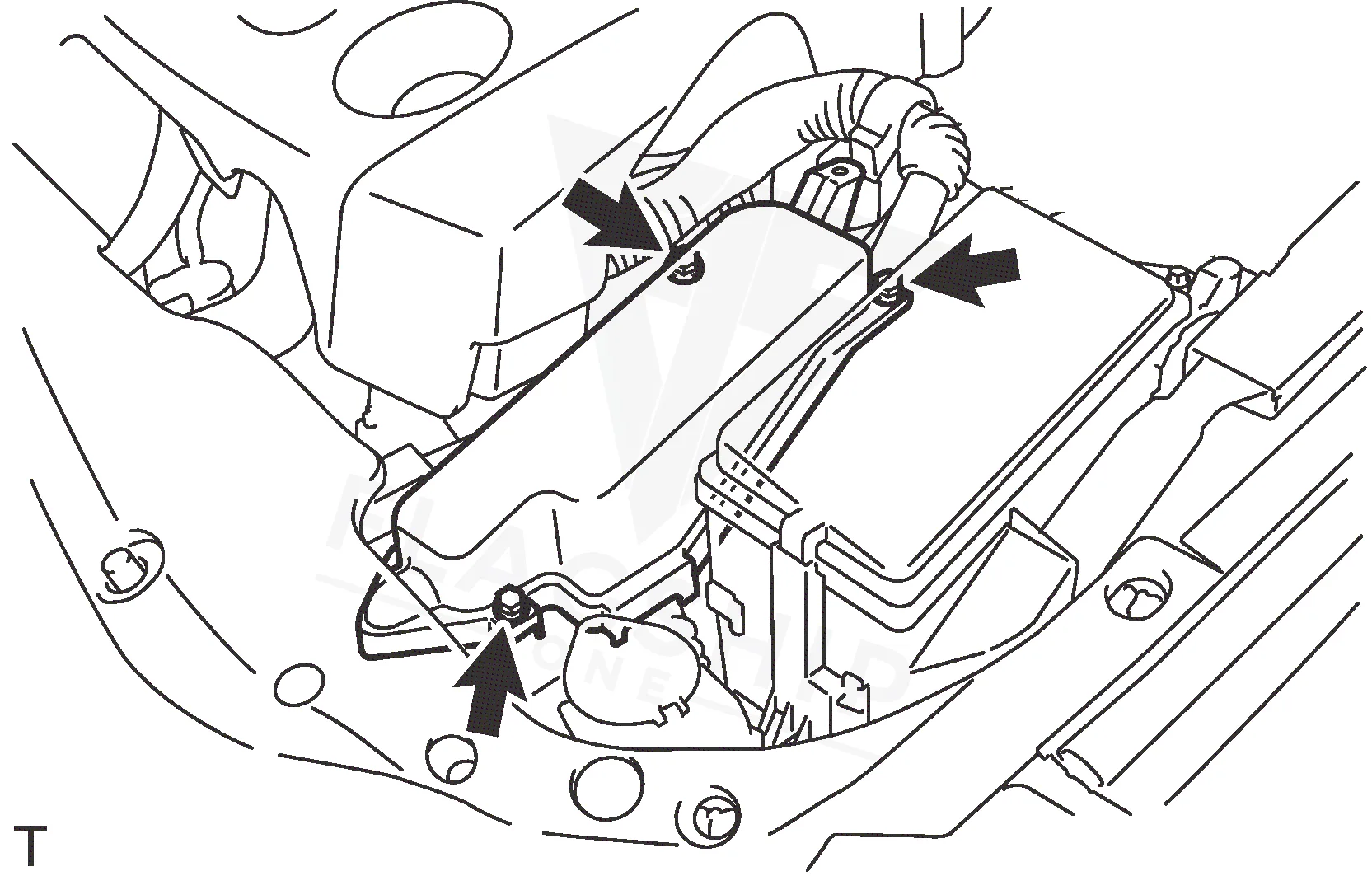

- Remove the 3 bolts and ECM cover.
- Remove all water on and around the ECM cover.
- Disconnect the ECM connectors.
- Disconnect the 6 ECM connectors.
- Remove the 2 nuts and ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new PCM or ECM, the factory service procedure calls for a 0.5‑hour relearn cycle to synchronize the module with the vehicle’s existing sensors and transmission controller. Flagship One units arrive pre‑configured for the vehicle’s VIN, so a VIN-programmed replacement unit eliminates the need for that additional programming step.
Symptoms of a Failing PCM
A failing PCM or ECM in a 2013 Lexus IS350 may present as a no‑start condition, intermittent stalling, rough idle, or unexpected gear shifts. Diagnostic scanning often reveals communication errors such as powertrain control error which indicates internal module malfunction. Additional signs include loss of engine speed data, erratic throttle response, and the illumination of the check engine light.
Module Trouble Codes on the 2013 Lexus IS350
The following diagnostic codes are commonly stored when the powertrain or engine control module experiences a fault in this vehicle:
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2013 Lexus IS350
- Maintain a healthy charging system to avoid voltage spikes.
- Ensure all ground connections are clean and secure.
- Avoid jump‑starting the vehicle unless absolutely necessary.
- Address any diagnostic codes promptly before they worsen.
- Keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
What are the typical labor times for replacing the PCM in a 2013 Lexus IS350?
The factory book time lists about 0.7 hours of labor to remove and reinstall the powertrain control module.
Do I need to perform a relearn after installing a new ECM in my 2013 Lexus IS350?
Yes, the standard procedure includes a 0.5‑hour relearn step, unless you use a VIN‑programmed replacement that already contains the necessary data.
Can a bad PCM cause transmission shifting problems in the 2013 Lexus IS350?
Because the PCM also controls shift timing, a failure can lead to harsh or delayed shifts, alongside other engine performance issues.
When your 2013 Lexus IS350 requires a PCM or ECM repair, you can choose a rebuilt unit or a Flagship One replacement. Both options restore functionality, but a VIN‑programmed unit removes the post‑install relearn, saving time and reducing the chance of error.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2013 Lexus IS350 with a lifetime warranty, free shipping and no core charge. The full Lexus IS350 module lineup covers other engine configurations as well.
Final Thoughts
Understanding the role of the PCM and ECM in your 2013 Lexus IS350 helps you make informed decisions about repair or replacement. Consider a Flagship One unit to streamline the process and get back on the road sooner.
