2013 Lexus IS-F Engine Control Module: Replacement and Relearn Guide
The Engine Control Module (ECM) in your 2013 Lexus IS-F manages fuel injection, ignition timing, and emissions systems. Failures may cause drivability issues, poor performance, or stored trouble codes like P0606.
Quick Summary
- The ECM controls critical engine functions in the 2013 Lexus IS-F.
- Replacement typically requires 0.7 hours of labor, plus relearn procedures.
- Factory cautions include a 90-second wait after battery disconnect to disable the SRS system.
- Flagship One units arrive VIN-programmed, eliminating additional programming steps.
- Common symptoms include stalling, no-start conditions, or stored trouble codes.
If your 2013 Lexus IS-F is experiencing intermittent stalling, rough idle, or a no-start condition, the Engine Control Module (ECM) may be at fault. This small but critical computer oversees fuel delivery, ignition timing, and emissions systems to keep your engine running smoothly. Replacing it involves more than just swapping parts—factory procedures require careful handling and post-installation steps to ensure proper function. Understanding the process helps you avoid unnecessary delays and ensures your vehicle runs as intended after the repair.
What the PCM Does in a 2013 Lexus IS-F
The Engine Control Module in your 2013 Lexus IS-F acts as the brain of the engine, processing data from sensors to optimize performance. It adjusts fuel injection, ignition timing, and idle speed in real time, ensuring efficient operation. A failing ECM may disrupt these functions, leading to drivability issues or even preventing the engine from starting. When replacement is necessary, choosing replacement engine computers for the Lexus IS-F ensures compatibility and proper calibration for your vehicle’s specific needs.
Where the PCM Is Located and What Replacement Involves
The ECM in your 2013 Lexus IS-F is located behind the battery, requiring removal of the negative battery cable for access. Factory labor estimates allocate 0.7 hours for replacement, which includes disconnecting electrical connectors and securing the new module. After reconnecting the battery, some systems may need initialization, though this varies by vehicle condition. Always follow the 90-second wait period after disconnecting the battery to safely disable the SRS system before beginning work.
How to Reach the PCM on the 2013 Lexus IS-F
- Disconnect cable from negative battery terminal.
- REMOVE COOL AIR INTAKE DUCT SEAL More Info REMOVE ENGINE ROOM SIDE COVER LH More Info.
- REMOVE V-BANK COVER SUB-ASSEMBLY More Info.
- Remove engine room ecu cover.

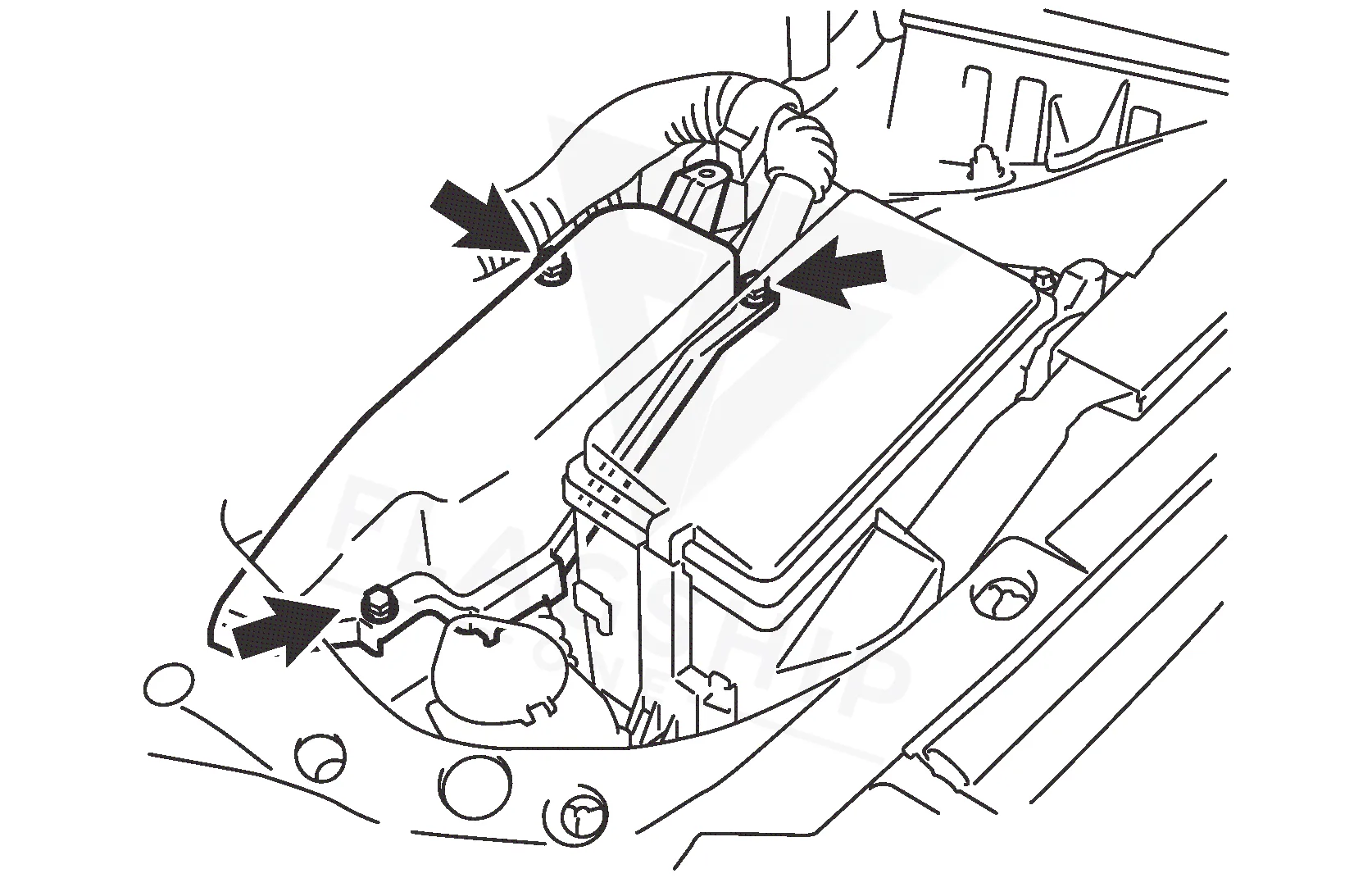

- Remove the 3 bolts and the ECM cover.
- Remove all water from on and around the ECM cover.
- Disconnect the ECM connectors.
- Disconnect the 6 ECM connectors.
- Remove the 2 nuts and ECM from the ECM box.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new ECM in your 2013 Lexus IS-F, the factory procedure typically requires a relearn process, which may take 0.5 hours. This step ensures the module synchronizes with the vehicle’s sensors and systems. However, a VIN-programmed replacement unit from Flagship One arrives pre-configured for your vehicle, eliminating the need for additional programming and reducing downtime during installation.
Symptoms of a Failing PCM
A failing ECM in your 2013 Lexus IS-F may cause a range of symptoms, including intermittent stalling, rough idle, or a no-start condition. You might also notice poor throttle response or the check engine light illuminating with codes like an internal processor fault. In some cases, the vehicle may enter a limp-home mode, limiting power to prevent further damage. If your scan tool fails to communicate with the ECM, it could indicate a complete module failure requiring replacement.
Module Trouble Codes on the 2013 Lexus IS-F
The 2013 Lexus IS-F may store specific trouble codes when the ECM experiences internal faults. These codes help diagnose issues and determine whether replacement is necessary.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2013 Lexus IS-F
- Maintain a healthy charging system to avoid voltage spikes that may damage the ECM.
- Ensure battery connections are clean and secure to prevent electrical issues.
- Avoid jump-starting with improper voltage, which can harm sensitive electronics.
- Address check engine lights promptly to prevent cascading failures.
- Keep ECM connectors and seals intact to protect against moisture and corrosion.
Frequently Asked Questions
How long does it take to replace the ECM in a 2013 Lexus IS-F?
Factory labor estimates allocate 0.7 hours for ECM replacement. This includes disconnecting the battery, removing the old module, and installing the new one. Additional time may be needed for system initialization or relearn procedures if required.
Why does my 2013 Lexus IS-F need a relearn after ECM replacement?
The relearn process ensures the new ECM synchronizes with the vehicle’s sensors and systems. This step, which may take 0.5 hours, helps restore proper engine performance and prevent drivability issues after installation.
Can I drive my 2013 Lexus IS-F with a P0606 code?
While the vehicle may still run, a P0606 code indicates an internal ECM fault that could lead to stalling or poor performance. Addressing it promptly helps avoid further issues and ensures reliable operation.
If your 2013 Lexus IS-F requires an ECM replacement, you have options. A new OEM module may involve additional programming steps, while a refurbished unit from Flagship One arrives VIN-programmed for your vehicle, simplifying installation. Consider the labor savings and convenience when choosing the best solution for your needs.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2013 Lexus IS-F with a lifetime warranty, free shipping and no core charge. The full Lexus IS-F module lineup covers other engine configurations as well.
Final Thoughts
The 2013 Lexus IS-F relies on its ECM to manage critical engine functions, and a failing module can disrupt performance. Whether you opt for a new or refurbished replacement, understanding the process ensures a smoother repair. With proper installation and a pre-programmed unit, your vehicle can return to reliable operation quickly.
