2013 Ford E-Series Van PCM Replacement and Relearn Procedure
The Powertrain Control Module on the 2013 Ford E-Series Van manages engine and transmission operations through sensor inputs and actuator outputs. Internal processor failures within this unit may trigger fault code P0606, which indicates the PCM cannot perform self-checks properly. When this module fails, the vehicle may experience stalling, no-start conditions, or illuminated warning lights.
Quick Summary
- The 2013 Ford E-Series Van uses a single controller for both engine and transmission coordination
- Module replacement on either engine option requires approximately 0.5 hours of mechanical labor
- A separate relearn procedure is required after physical module installation
- Code P0606 specifically indicates internal processor malfunction within the control unit
If your 2013 Ford E-Series Van has triggered trouble code P0606 or is exhibiting symptoms consistent with controller failure, you are likely facing a decision between repair and replacement of the Powertrain Control Module. This article explains what that module does, how replacement and programming work, and what you should expect throughout the process. The E-Series van uses either the 4.6L or 5.4L Triton V8 engine, and both configurations rely on the same controller architecture. Understanding the relearn requirements and programming needs will help you evaluate whether a DIY approach is feasible or whether professional installation makes more sense. We cover symptoms, prevention strategies, and frequently asked questions to give you a complete picture before spending money on parts or labor.
What the PCM Does in a 2013 Ford Van (E-Series)
The Powertrain Control Module in your 2013 Ford E-Series Van serves as the central nervous system for the drivetrain. This computer processes data from dozens of sensors—including oxygen sensors, mass airflow meters, throttle position sensors, and crankshaft position indicators—to calculate fuel injection timing, ignition advance, and transmission shift schedules in real time. For the 4.6L and 5.4L engine variants, the module also manages auxiliary systems such as the evaporative emissions controls and idle air control. Without a functioning processor, the engine cannot maintain proper air-fuel ratios or spark timing, which explains why failures often manifest as stalling, hard starting, or illuminated malfunction indicator lights. The module operates continuously while the engine runs, making it susceptible to heat cycling stress and electrical spikes over time. Replacement engine computers for the 2013 Ford E-Series Van must be matched to the specific engine displacement and calibrated with vehicle-specific data before the drivetrain will operate normally. This is why the factory specifies a dedicated relearn procedure following installation—without proper initialization, sensors and actuators may receive incompatible commands.
Flagship One keeps Ford Van (E-Series) replacement engine computers in stock for exactly this failure pattern.
Where the PCM Is Located and What Replacement Involves

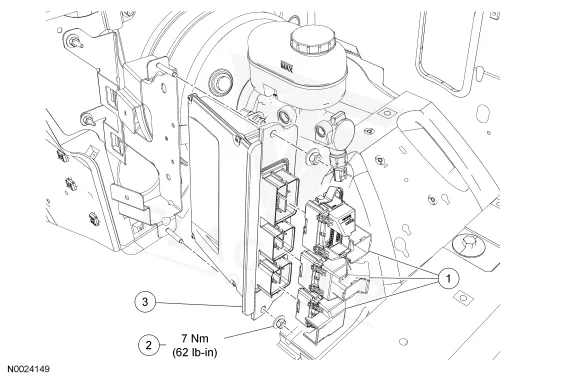

The Powertrain Control Module on the 2013 Ford E-Series Van is typically mounted in the engine compartment, often in a protective enclosure near the firewall or bulkhead. Access generally requires removing the protective cover and disconnecting the electrical harness before unbolting the unit from its mounting location. The book time for Powertrain Control Module removal and replacement on the 4.6L engine is 0.5 hours, with an identical time allocation for the 5.4L variant. After the physical replacement, a separate relearn procedure is required—this itself accounts for another 0.5 hours of labor. For the Engine Control Module functions, Ford lists 0.5 hours for removal and replacement on both displacements, plus an additional 0.5 hours for the relearn step. The wiring harness should be inspected for damaged pins or corroded connections before reinstallation, as these conditions can cause intermittent faults even with a new module installed. Torque specifications for mounting bolts, if provided in the factory service information, must be followed to prevent vibration-induced damage to the controller housing.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 4.6L | 0.5 hr |
| Powertrain Control Module R&R | 5.4L | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | 4.6L | 0.5 hr |
| Engine Control Module R&R | 5.4L | 0.5 hr |
Programming Requirements After Replacement
After installing a replacement Powertrain Control Module on your 2013 Ford E-Series Van, the factory procedure directs technicians to Section 2 of the service documentation, which covers flashing the Electrically Erasable Programmable Read Only Memory and programming the Vehicle Identification block for the replacement unit. This process writes your van’s specific calibration data—including the VIN, transmission calibration, and axle ratio—into the new controller. Without this step, the module will not communicate properly with the PCM network and the engine may not run. However, units from Flagship One arrive pre-loaded with your vehicle’s VIN and calibration, meaning the post-install programming step may already be completed before the module arrives. You or your technician should still verify communication with a diagnostic scanner and confirm that no fault codes persist after installation.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the Powertrain Control Module on a 2013 Ford E-Series Van begins to fail, the symptoms often develop gradually but can appear suddenly after an electrical event. A processor fault code P0606 may illuminate the check engine light and indicate that the module cannot complete internal self-diagnostic tests. Common complaints include hard starting or no-start conditions, especially when the engine is warm. The vehicle may stall at idle or lose power under acceleration, and transmission shifting may become harsh or delayed. In some cases, the scan tool cannot establish communication with the module, which points toward a more severe internal failure. Misfire codes such as P0300 through P0308 may also appear because the controller cannot properly sequence fuel injection or spark events. If multiple unrelated codes are present simultaneously with no obvious mechanical cause, the controller itself should be suspected as the root issue.
Module Trouble Codes on the 2013 Ford Van (E-Series)
The 2013 Ford E-Series Van may store module-internal trouble codes that indicate processor or memory failures within the Powertrain Control Module. These codes differ from sensor-related codes because they point to a problem within the controller rather than an external component.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2013 Ford Van (E-Series)
- Maintain the charging system by testing battery voltage and alternator output periodically to prevent low-voltage conditions that stress the controller
- Ensure all engine grounds are clean and secure, as poor grounding can introduce voltage irregularities that damage sensitive electronics
- Avoid jump-starting the vehicle incorrectly—always connect positive to positive and negative to a ground point away from the battery to prevent voltage spikes
- Address check engine lights and fault codes promptly rather than allowing unresolved electrical issues to persist
- Keep electrical connectors and harness seals intact to prevent moisture intrusion, which may corrode pins and cause intermittent communication failures
- When servicing the engine or transmission, avoid exposing the controller or its wiring to excessive heat or mechanical impact
Frequently Asked Questions
Will any 2013 Ford E-Series Van PCM work as a replacement?
Replacement modules must be matched to your specific engine displacement and transmission configuration. A PCM programmed for a 4.6L may not function correctly in a 5.4L van, and vice versa.
Can I install a used PCM from a junkyard in my 2013 Ford E-Series Van?
A used module may require programming with your vehicle’s VIN and calibration data before it will operate. This process typically requires a dealer or qualified tuning facility with the appropriate factory software access.
Why does my scan tool show no communication after replacing the PCM?
This often indicates a wiring issue, an improper module ground, or a fuse problem rather than a defective replacement. Verifying power, ground, and Controller Area Network circuit integrity should be the first troubleshooting step.
Is the relearn procedure the same for both the 4.6L and 5.4L engines?
The general relearn steps are similar across both displacements, though specific idle-trim relearns and transmission adaptation resets may vary slightly depending on the calibration file installed in the replacement module.
What happens if I drive the van without performing the relearn procedure?
Without proper initialization, you may experience poor idle quality, reduced fuel economy, transmission harshness, and illuminated warning lights. The engine management system will not have the correct parameters for your specific vehicle stored in memory.
If your 2013 Ford E-Series Van requires a new Powertrain Control Module, you have two main paths: a remanufactured unit that requires programming after installation, or a pre-programmed replacement from Flagship One that arrives ready to install. Both options involve the same mechanical removal and installation labor, which book time estimates place at approximately 0.5 hours for the R&R procedure. The programming step is where the options diverge—one requires dealer-level software access, while the other eliminates that step entirely. Consider your technical capabilities, access to programming tools, and tolerance for downtime when deciding which approach fits your situation.

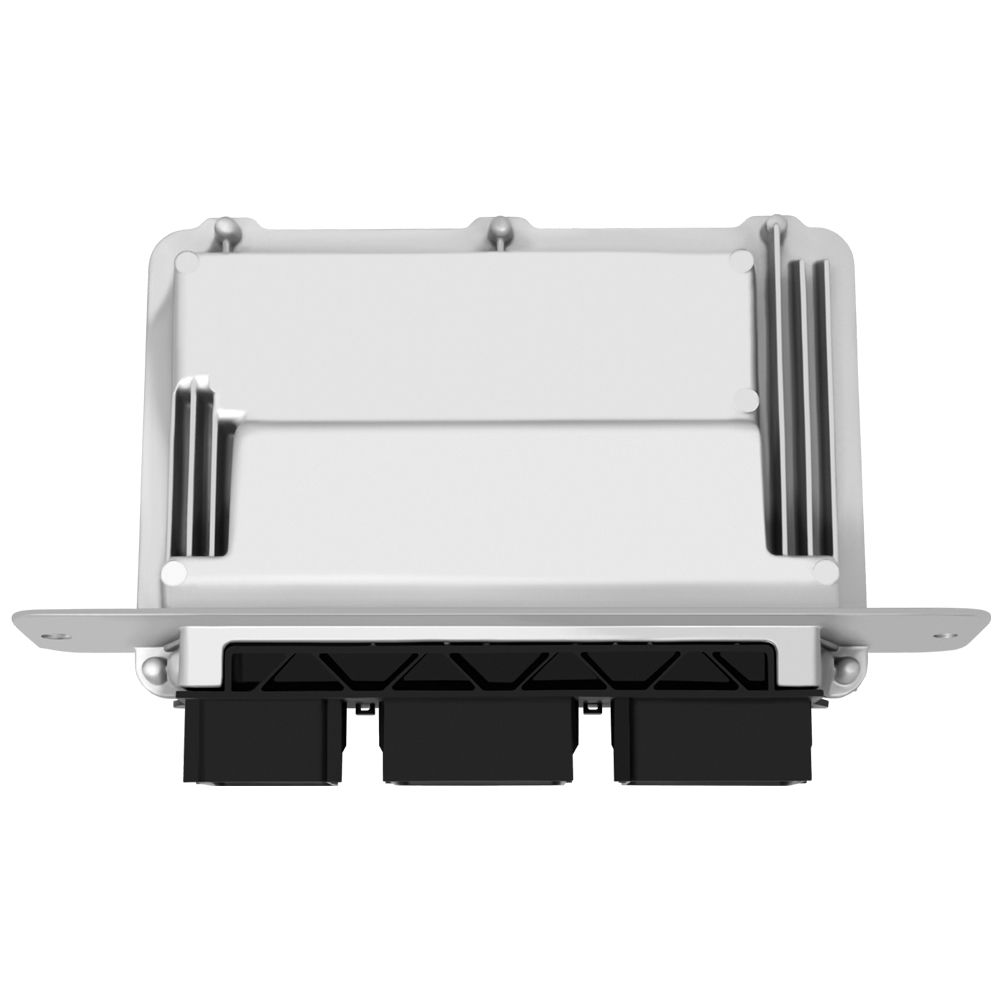

Flagship One stocks a refurbished, VIN-programmed PCM for the 2013 Ford Van (E-Series) with a lifetime warranty, free shipping and no core charge. The full Ford Van (E-Series) module lineup covers other engine configurations as well.
Final Thoughts
Replacing the Powertrain Control Module on your 2013 Ford E-Series Van involves more than swapping a part. The mechanical removal and installation are straightforward, but proper initialization and programming are required for the vehicle to run correctly. Understanding the symptoms of controller failure, the relearn requirements, and your programming options will help you make an informed decision and avoid repeat repairs.
