2013 Chevrolet Equinox ECM Replacement Guide
The engine control module (ECM) in your 2013 Chevrolet Equinox serves as the central computer managing fuel injection, ignition timing, emissions controls, and sensor inputs for the 2.4L engine. Internal memory faults may trigger various diagnostic codes and drivability issues.
Quick Summary
- The ECM and PCM on this vehicle share similar replacement labor at 1.5 hours each, plus 0.5 hour relearn procedures
- Factory caution requires disconnecting the negative battery cable before ECM connector work to prevent electrostatic damage
- Capturing ECM data with a scan tool before removal is required by the factory procedure
- Module-internal codes P0601 through P062F indicate various internal ECM memory and calibration failures
If your 2013 Chevrolet Equinox experiences starting problems, stalling, or illuminated warning lights, the engine control module may be the culprit. This guide explains what the ECM does in your specific vehicle, common failure symptoms, and the replacement process. Understanding these points helps you make informed decisions about repair options and know what to expect from the service.
What the PCM Does in a 2013 Chevrolet Equinox
The engine control module on your 2013 Chevrolet Equinox functions as the primary computer for the 2.4L four-cylinder engine. It processes inputs from dozens of sensors throughout the powertrain and adjusts fuel delivery, ignition timing, and emissions systems in real time to maintain performance while meeting federal fuel economy and emissions standards. The related replacement engine computers for the Equinox also manage transmission shift points when integrated with the powertrain control module functions. Without proper ECM operation, the engine may run poorly, fail to start, or trigger protective limp-home modes.

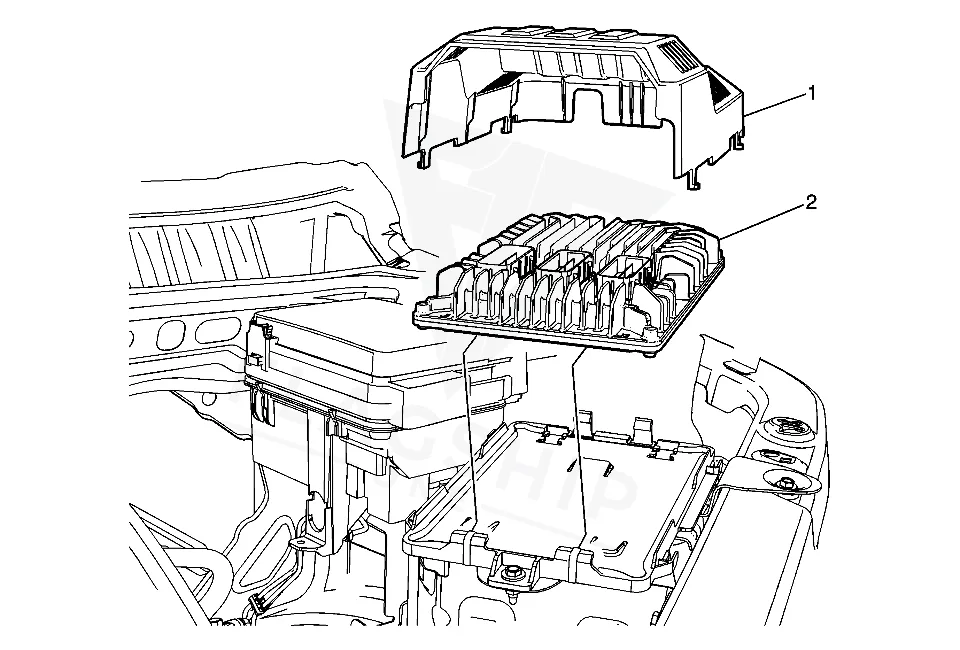

Where the PCM Is Located and What Replacement Involves
The ECM on your 2013 Equinox is typically located in the engine compartment, often near the firewall or front passenger side. Replacement involves disconnecting the negative battery cable per factory caution to prevent electrostatic discharge damage to the module. The book time for ECM R&R is 1.5 hours, with an additional 0.5 hour for the relearn procedure. Similar labor applies to powertrain control module replacement at 1.5 hours plus 0.5 hour relearn. Accessing the module requires careful connector handling—the factory explicitly warns against touching connector pins to avoid ESD damage.
How to Reach the PCM on the 2013 Chevrolet Equinox
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Release the plastic retaining tabs.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 1.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 1.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the ECM on your 2013 Chevrolet Equinox, the factory procedure requires reprogramming with the correct vehicle-specific calibration using special equipment. The scan tool must capture ECM data before removal, and the new module needs programming to match your vehicle’s VIN and configuration. Flagship One sells a VIN-programmed replacement unit that arrives ready to install, eliminating the need for you to arrange reprogramming services separately.
Symptoms of a Failing PCM
When the ECM fails on a 2013 Equinox, you may experience no-start conditions where the engine cranks but will not run, intermittent stalling, or rough idle. Common indicators include illumination of the malfunction indicator lamp, multiple diagnostic trouble codes stored across various control modules, and reduced scan tool communication. The vehicle may display warning messages or enter failsafe mode limiting speed and power. In some cases, internal memory checksum failure may set along with other module-internal codes indicating calibration or processor issues.
Module Trouble Codes on the 2013 Chevrolet Equinox
Your 2013 Chevrolet Equinox may store module-internal trouble codes when the ECM detects internal faults. These codes (P0601 through P062F) indicate various memory, calibration, or processor concerns within the engine control module itself rather than faults in external sensors or wiring.
Factory Service Bulletins Worth Knowing
Factory service bulletin #09-06-03-004 addresses intermittent no-crank, no-start conditions and module communication issues on some 2013 model vehicles, including the Equinox. The bulletin describes diagnosing fretting corrosion on connectors and applying dielectric lubricant after disconnecting affected connectors. Bulletin #PI0800C covers DTC C0544 and U0415 codes that may set and resist clearing when module communication problems occur.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-06-03-004 | Intermittent No Crank/No Start, No Module Communication, MIL, Warning Lights, Vehicle Messages | Some customers may comment on any of the following conditions: An intermittent no crank/no start Intermittent malfunction indicator lamp (MIL) illumination… |
| — | DTC C0544 and/or U0415 Set and Will Not Clear, Malfunction Indicator Lamp (MIL) On – (Oct 14, 2 | — |
Protecting the PCM in Your 2013 Chevrolet Equinox
- Maintain the charging system to prevent low-voltage conditions that stress the ECM
- Keep battery terminals and ground connections clean and tight to ensure stable voltage
- Avoid jump-starting from a vehicle with a running engine to prevent voltage spikes
- Address diagnostic trouble codes promptly before they cascade into additional module failures
- Inspect engine compartment connectors periodically for corrosion or damaged seals
Frequently Asked Questions
Will a used ECM from a salvage yard work in my 2013 Chevrolet Equinox?
A used ECM requires programming to match your specific vehicle’s VIN and calibration, which typically requires dealer-level software and equipment. This cost often approaches the price of a professionally refurbished unit.
Can I drive my 2013 Equinox with a failing ECM?
A failing ECM may cause intermittent symptoms that leave you stranded unexpectedly. When the module fails completely, the engine will not start or run, leaving you with a no-start condition.
How do I know if my Equinox needs an ECM or just a sensor?
Diagnostic trouble codes pointing to multiple systems or module-internal codes like P0601 typically indicate ECM issues. A qualified technician with proper scan tool access can diagnose the root cause before replacing the module.
When your 2013 Chevrolet Equinox requires ECM replacement, you have two primary paths: repair the existing module if feasible, or install a refurbished replacement. A quality refurbished unit from a specialist like Flagship One arrives VIN-programmed and ready to install, saving you the hassle of arranging programming services. Consider your budget, timeline, and warranty preferences when choosing.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2013 Chevrolet Equinox with a lifetime warranty, free shipping and no core charge. The full Chevrolet Equinox module lineup covers other engine configurations as well.
Final Thoughts
The engine control module in your 2013 Chevrolet Equinox manages critical engine functions, and failure creates drivability issues or no-start conditions. Understanding the replacement process, programming requirements, and common symptoms helps you make informed repair decisions. Whether you pursue professional service or a direct replacement unit, addressing ECM issues promptly restores reliable operation.
