2013 Audi S6 Powertrain Control Module Replacement Guide
In the 2013 Audi S6 the Powertrain Control Module manages engine timing, fuel delivery, and transmission coordination. Failure typically results in loss of engine control, error codes, and reduced performance.
Quick Summary
- Factory removal accesses the module in the plenum chamber behind the windshield.
- Book labor for a PCM swap is 1.1 hours, while an ECM relearn adds 0.5 hours.
- Flagship One units arrive VIN‑programmed, eliminating post‑install coding.
- Common codes include P0603 and P0605, indicating internal processor faults.
When a 2013 Audi S6 experiences powertrain control issues, the PCM may need to be removed and replaced. This guide explains where the module lives, how long the work typically takes, and what steps follow replacement. You will learn the practical details of accessing the control unit, the expected labor effort, and why a pre‑programmed replacement can simplify the job.
What the PCM Does in a 2013 Audi S6
The Powertrain Control Module in a 2013 Audi S6 acts as the brain for engine and transmission operation, interpreting sensor data to control fuel injection, ignition timing, and gear shifts. Its proper function is essential for smooth acceleration and emissions compliance. The module also stores diagnostic information that helps technicians pinpoint faults. Understanding its role helps you see why a failure can cause a no‑start condition. replacement engine control modules for 2013 Audi S6 are designed to match the vehicle’s communication protocols exactly.
Where the PCM Is Located and What Replacement Involves
The factory removal procedure reaches the control module inside the plenum chamber at the base of the windshield. Access requires removing interior trim to expose the chamber, then disconnecting the electrical connector before unscrewing the mounting bolts. The book time for a Powertrain Control Module removal and replacement on a 2013 Audi S6 is listed as 1.1 hours. After the new unit is seated, the connector is reattached and trim components are reinstalled.

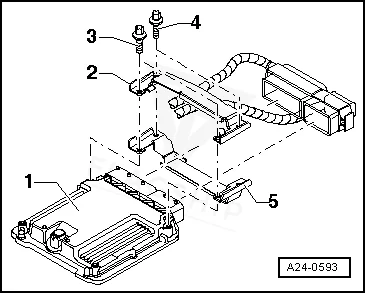

How to Reach the PCM on the 2013 Audi S6
- Remove the plenum chamber cover.
- Remove the bolts , pull the filler tube out of the windshield washer fluid reservoir and.
- Open the retainer and remove the Engine Control Module.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | S6 | 1.1 hr |
| Powertrain Control Module R&R | A6 | 1.1 hr |
| Powertrain Control Module R&R | A6 Quattro | 1.1 hr |
| Engine Control Module Relearn | S6 | 0.5 hr |
| Engine Control Module Relearn | A6 | 0.5 hr |
| Engine Control Module Relearn | A6 Quattro | 0.5 hr |
| Engine Control Module R&R | S6 | 1.1 hr |
| Engine Control Module R&R | A6 | 1.1 hr |
Programming Requirements After Replacement
Once the module is installed, the factory service routine calls for an Engine Control Module Relearn that typically takes 0.5 hours. Flagship One provides a VIN‑programmed replacement unit, so that relearn step is already completed when the part arrives. a VIN-programmed replacement unit therefore removes the need for additional on‑site coding.
Symptoms of a Failing PCM
A failing PCM in a 2013 Audi S6 may cause the engine to refuse to start, stall unexpectedly, or trigger transmission shift delays. You might also see loss of communication with a scan tool and receive diagnostic codes such as internal processor fault on the diagnostic display. These symptoms often appear together with rough idle or reduced power.
Module Trouble Codes on the 2013 Audi S6
The following internal trouble codes are commonly logged by the Powertrain Control Module in this vehicle:
| Code | Meaning | Full Guide |
|---|---|---|
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0605 | Internal ROM error | Full P0605 guide → |
| P060A | Module-internal fault | — |
| P060B | Module-internal fault | — |
| P0613 | Module-internal fault | Full P0613 guide → |
| P0667 | Module-internal fault | Full P0667 guide → |
Protecting the PCM in Your 2013 Audi S6
- Maintain a healthy charging system to avoid voltage irregularities.
- Inspect and clean ground connections and module connectors regularly.
- Avoid jump‑starts that can introduce voltage spikes to the PCM.
- Address any stored trouble codes promptly to prevent further damage.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What are the typical labor hours for replacing the PCM on a 2013 Audi S6?
The factory book time for a Powertrain Control Module removal and replacement on this model is listed as 1.1 hours, with an additional 0.5 hours for ECM relearn if required.
Can I use a used PCM in a 2013 Audi S6 without reprogramming?
A used PCM would need to be reprogrammed to match your vehicle’s VIN and calibration data, which adds time and risk. A VIN‑programmed unit avoids that step.
What symptoms indicate a PCM failure in my 2013 Audi S6?
Common signs include no‑start conditions, stalling, erratic shifting, and diagnostic codes such as P0603 or P0605 appearing on the scan tool.
When the Powertrain Control Module in a 2013 Audi S6 needs service, you can choose a repair with a new factory‑spec unit or a refurbished replacement. Both options restore the vehicle’s control functions, but a Flagship One refurbished module arrives VIN‑programmed, eliminating the post‑install coding step.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2013 Audi S6 with a lifetime warranty, free shipping and no core charge. The full Audi S6 module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM in your 2013 Audi S6 restores reliable engine and transmission control. Consider a pre‑programmed replacement to reduce downtime and ensure proper calibration.
