2012 Volkswagen Tiguan PCM/ECM Replacement & Programming Guide
The engine control module (ECM) in the 2012 Volkswagen Tiguan 2.0L manages fuel injection, ignition timing, and emissions. Failure can cause no-start, stalling, poor performance, and check engine light. Common causes include voltage spikes, water intrusion, or internal component failure.
Quick Summary
- ECM removal and installation book time is 1.3 hours.
- A 0.5-hour relearn procedure is required after replacement.
- The ECM is located in the left front wheel housing.
- Factory service bulletin #24-11-05 addresses erasing DTCs from ECM memory on UDS communication vehicles.
- Flagship One units arrive pre-programmed, eliminating the need for dealer programming.
If your 2012 Volkswagen Tiguan 2.0L experiences no-start, stalling, or a persistent check engine light, the engine control module (ECM) may be at fault. This guide explains what the ECM does, where it is located, and what replacement involves. You will learn the factory-recommended labor times, the required post-install programming, and how a pre-programmed unit from Flagship One simplifies the repair.
What the PCM Does in a 2012 Volkswagen Tiguan
The engine control module (ECM) in the 2012 Volkswagen Tiguan 2.0L is the central computer that controls fuel delivery, ignition timing, turbocharger boost, and emissions systems. It processes data from sensors like the oxygen sensor, mass airflow sensor, and crankshaft position sensor to adjust engine operation in real time. When the ECM fails, the engine may run poorly or not at all. For a direct replacement, consider replacement ECMs for the Tiguan that match your vehicle’s original specifications. The ECM also communicates with other modules via the UDS protocol, which is relevant to certain diagnostic procedures.
Where the PCM Is Located and What Replacement Involves
The ECM on the 2012 Volkswagen Tiguan 2.0L is located in the left front wheel housing. To access it, you typically need to remove the wheel and inner fender liner. The factory book time for ECM removal and installation is 1.3 hours. After installing the new module, a 0.5-hour relearn procedure is required to synchronize the ECM with the vehicle’s immobilizer and other systems. No additional torque specifications are provided in the available service data.

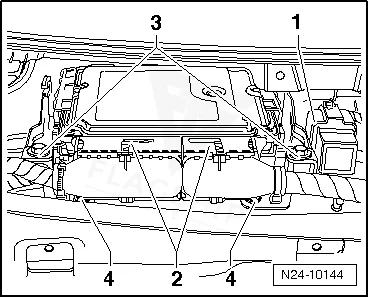

How to Reach the PCM on the 2012 Volkswagen Tiguan
- Turn off the ignition.
- Remove the windshield wiper arms.
- Remove the plenum chamber cover.
- Disconnect the connector from the windshield defoggercontrol module.
- Slide the connector latches on the ECM outward and re‐move both connectors.
- Remove the bolts.
- Remove the mounting frame with the ECM from the plenumchamber.
- Press the release latches outward and slide the ECM in the -direction of the arrow.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.3 hr |
| Engine Control Module R&R | All configurations | 1.3 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the ECM on a 2012 Volkswagen Tiguan 2.0L, the factory procedure requires a 0.5-hour relearn to match the module to the vehicle’s VIN and security system. This step is essential for the engine to start and run correctly. Flagship One supplies a VIN-programmed replacement unit that arrives with the correct programming already applied, so the relearn step is completed before installation. This saves you the time and cost of a dealer visit for programming.
Symptoms of a Failing PCM
Common symptoms of a failing ECM in the 2012 Volkswagen Tiguan 2.0L include no-start conditions, intermittent stalling, rough idle, misfire codes, and a check engine light that stays on. The engine may also enter a limp-home mode with reduced power. Communication with a scan tool may be lost, and the vehicle may not respond to diagnostic commands. In some cases, the transmission may shift erratically because the ECM also influences shift timing.
Factory Service Bulletins Worth Knowing
Factory service bulletin #24-11-05 TT 24-11-05 applies to 2011 and newer vehicles with UDS communication, including the 2012 Volkswagen Tiguan 2.0L. It describes a procedure for erasing diagnostic trouble codes from the ECM memory. This bulletin may be referenced when clearing codes after repairs or when a code remains stored despite the fault being corrected.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 24-11-05 | TT 24-11-05 2011> Vehicles with UDS communication Engine Control Modules – Erasing DTCs in t | — |
Protecting the PCM in Your 2012 Volkswagen Tiguan
- Maintain the charging system; replace a failing alternator promptly to avoid voltage spikes.
- Keep battery terminals and ground connections clean and tight.
- Avoid jump-starting with reversed polarity or using a fast charger on a weak battery.
- Address any check engine light or drivability code quickly before it causes secondary damage.
- Inspect the ECM connector seals and wiring for corrosion or moisture intrusion, especially given the wheel-housing location.
Frequently Asked Questions
What is the book time for ECM replacement on a 2012 Volkswagen Tiguan?
The factory book time for ECM removal and installation is 1.3 hours. An additional 0.5 hours is allowed for the relearn procedure after installation.
Where is the ECM located on a 2012 Volkswagen Tiguan?
The ECM is located in the left front wheel housing. Access typically requires removing the wheel and inner fender liner.
Does the ECM on a 2012 Tiguan require programming after replacement?
Yes, the factory procedure includes a 0.5-hour relearn to match the ECM to the vehicle. However, Flagship One supplies pre-programmed units that eliminate this step.
When your 2012 Volkswagen Tiguan 2.0L needs an ECM, you have two main options: have a dealer install a new module and perform the required programming, or choose a refurbished unit that arrives pre-programmed. The latter saves the dealer programming time and cost. Flagship One offers model-specific ECMs that are ready to install, reducing downtime.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Volkswagen Tiguan with a lifetime warranty, free shipping and no core charge. The full Volkswagen Tiguan module lineup covers other engine configurations as well.
Final Thoughts
The 2012 Volkswagen Tiguan 2.0L relies on its ECM for proper engine operation. Replacement involves 1.3 hours of labor plus a 0.5-hour relearn. Choosing a pre-programmed unit from Flagship One simplifies the repair by eliminating the post-install programming step, getting your Tiguan back on the road faster.
