2012 Volkswagen Golf R (2.0L) PCM/ECM Replacement and Programming
The engine control module (ECM) in the 2012 Volkswagen Golf R (2.0L) manages fuel injection, ignition timing, turbo boost, and emissions. Failure often results from voltage spikes, water intrusion, or internal component wear, leading to drivability issues and stored fault codes.
Quick Summary
- The ECM is located in the plenum chamber, requiring removal of the windshield cowl for access.
- Book time for ECM removal and replacement on the Golf R is 1.4 hours, plus 0.5 hours for the relearn procedure.
- Two factory service bulletins address ECM-related issues: erasing DTCs and update programming for misfire and other codes.
- A VIN-programmed replacement unit from Flagship One eliminates the need for dealer programming after installation.
If your 2012 Volkswagen Golf R (2.0L) is experiencing intermittent stalling, rough idle, or a check-engine light with misfire codes, the engine control module (ECM) may be the root cause. The ECM is the central computer that controls fuel delivery, ignition timing, and turbocharger operation. This guide explains what the ECM does, where it is located, what replacement involves, and how a pre-programmed unit can save you time and money. You will learn the common symptoms of a failing ECM, the relevant factory service bulletins, and practical steps to protect the module from future damage.
What the PCM Does in a 2012 Volkswagen Golf R
The engine control module (ECM) in the 2012 Volkswagen Golf R (2.0L) is a sophisticated computer that continuously monitors sensor inputs—such as oxygen, mass airflow, and knock sensors—and adjusts fuel injection, ignition timing, and boost pressure to optimize performance and emissions. It also communicates with the transmission control module and other systems via the CAN bus. When the ECM fails, the vehicle may enter a reduced-power mode or fail to start. For owners seeking replacement ECMs for the Golf R, understanding the module’s role helps diagnose issues accurately and avoid unnecessary part swaps.
Where the PCM Is Located and What Replacement Involves
The ECM on the 2012 Volkswagen Golf R (2.0L) is mounted in the plenum chamber, which is the area under the windshield cowl at the base of the windshield. Access requires removing the wiper arms and the plastic cowl panel. The factory book time for ECM removal and replacement is 1.4 hours. After installation, a relearn procedure is necessary, which adds 0.5 hours of labor. The module is secured with bolts and has a multi-pin connector that must be carefully unlatched. No special tools are required beyond basic hand tools, but care is needed to avoid damaging the connector seals or the plenum chamber seal.

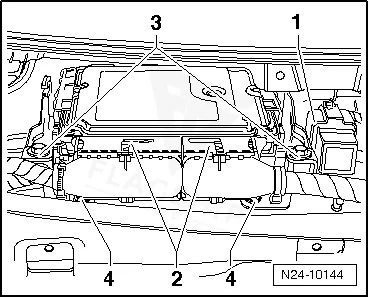

How to Reach the PCM on the 2012 Volkswagen Golf R
- Turn off the ignition.
- Remove the windshield wiper arms.
- Remove the plenum chamber cover.
- Disconnect the connector from the windshield defoggercontrol module.
- Slide the connector latches on the ECM outward and re‐move both connectors.
- Remove the bolts.
- Remove the mounting frame with the ECM from the plenumchamber.
- Press the release latches outward and slide the ECM in the -direction of the arrow.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | Golf | 1.4 hr |
| Engine Control Module R&R | GTI | 0.9 hr |
| Engine Control Module R&R | Golf R | 1.4 hr |
| Engine Control Module Relearn | Golf | 0.5 hr |
| Engine Control Module Relearn | GTI | 0.5 hr |
| Engine Control Module Relearn | Golf R | 0.5 hr |
| Powertrain Control Module R&R | Golf | 1.4 hr |
| Powertrain Control Module R&R | Without Anti-Theft System | 1.8 hr |
Programming Requirements After Replacement
After replacing the ECM on the 2012 Volkswagen Golf R (2.0L), the factory procedure requires a relearn process that takes 0.5 hours. This involves using a scan tool to synchronize the new module with the immobilizer and other vehicle systems. However, when you purchase a VIN-programmed replacement unit from Flagship One, the module arrives already programmed with your vehicle’s VIN and software calibration. This means the relearn step is already completed, so you can install the unit and start the engine without a trip to the dealer. The 0.5-hour relearn labor is effectively eliminated.
Symptoms of a Failing PCM
A failing ECM in the 2012 Volkswagen Golf R (2.0L) often causes no-start conditions, intermittent stalling, or rough running. You may notice the engine cranks but does not fire, or it starts and dies immediately. The check-engine light may illuminate with codes such as random misfire code P0300 stored in memory. Other symptoms include poor acceleration, reduced fuel economy, and the scan tool failing to communicate with the module. In some cases, the vehicle may enter a limp-home mode with limited power. These issues can be intermittent, making diagnosis challenging without a thorough scan.
Factory Service Bulletins Worth Knowing
Two factory service bulletins apply to the 2012 Volkswagen Golf R (2.0L) ECM. Bulletin #24-11-05 covers vehicles with UDS communication and provides instructions for erasing DTCs from the ECM memory. Bulletin #01-09-09 addresses an update programming procedure for a check-engine light with stored codes P0300–P0304, P0102, P1297, P0420, and P0441. This update may resolve misfire and other drivability concerns. Both bulletins should be reviewed by a qualified technician when diagnosing ECM-related issues.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 24-11-05 | TT 24-11-05 2011> Vehicles with UDS communication Engine Control Modules – Erasing DTCs in t | — |
| 01-09-09 | Attachment: 01-09-09 – Update Programming, MIL ON, DTCs P0300-P0304, P0102, P1297, P0420 and P0 | — |
Protecting the PCM in Your 2012 Volkswagen Golf R
- Maintain a healthy charging system; voltage spikes from a failing alternator can damage the ECM.
- Keep the plenum chamber drain tubes clear to prevent water from pooling near the ECM connector.
- Inspect and clean the ECM ground connections and main harness connector for corrosion or loose pins.
- Avoid jump-starting the vehicle with a running donor car; use a battery charger instead to prevent voltage surges.
- Address check-engine light codes promptly; ignoring them can lead to secondary ECM damage.
- Ensure the windshield cowl seal is intact to keep moisture out of the plenum chamber.
Frequently Asked Questions
How do I know if the ECM in my 2012 Volkswagen Golf R is bad?
Common signs include no-start, stalling, misfire codes, and loss of communication with a scan tool. However, these symptoms can also be caused by wiring or sensor issues. A professional diagnosis with a VW-compatible scanner is recommended.
Can I replace the ECM in my 2012 Volkswagen Golf R myself?
Yes, the ECM is accessible in the plenum chamber and replacement is straightforward with basic hand tools. The factory book time is 1.4 hours. However, you will need a VIN-programmed unit to avoid the 0.5-hour relearn procedure at a dealer.
What is the difference between an ECM and a PCM for the 2012 Golf R?
The ECM (engine control module) manages engine functions only. The PCM (powertrain control module) combines engine and transmission control. Your Golf R uses an ECM; the PCM designation in the labor facts applies to other VW models.
When your 2012 Volkswagen Golf R (2.0L) ECM fails, you have two main options: have a dealer diagnose and replace the module at a higher cost, or install a refurbished or new unit yourself. A VIN-programmed replacement from Flagship One arrives ready to install, saving you the dealer programming fee and the 0.5-hour relearn labor. This approach is often more economical and keeps your Golf R on the road quickly.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Volkswagen Golf R with a lifetime warranty, free shipping and no core charge. The full Volkswagen Golf R module lineup covers other engine configurations as well.
Final Thoughts
The 2012 Volkswagen Golf R (2.0L) ECM is a critical component that can fail due to voltage issues or moisture. Understanding its location in the plenum chamber and the 1.4-hour replacement time helps you plan the repair. Choosing a VIN-programmed unit from Flagship One eliminates the factory relearn step, making the swap straightforward and cost-effective.
