2012 Volkswagen Golf Engine Control Module Service Guide
In the 2012 Volkswagen Golf, the engine control module (ECM) manages fuel injection, ignition timing, and emissions controls. A failure typically results in loss of engine power, stalling, or persistent diagnostic trouble codes stored in the vehicle’s memory.
Quick Summary
- ECM replacement on a Golf generally requires about 1.4 labor hours.
- Factory placement is inside the plenum chamber, accessed through the intake.
- After install, a relearn procedure of roughly 0.5 hours is needed.
- Flagship One units arrive VIN‑programmed, eliminating the need for additional coding.
When a 2012 Volkswagen Golf begins to exhibit no‑start conditions, intermittent stalling, or persistent misfire codes, the engine control module may be at fault. Understanding how the ECM functions, where it lives, and what steps are required after a replacement can help you make an informed decision. This guide outlines the module’s role, typical labor times, and what to expect from a factory‑programmed replacement.
What the PCM Does in a 2012 Volkswagen Golf
The engine control module in the 2012 Volkswagen Golf coordinates sensor inputs to control fuel delivery, ignition timing, and emissions systems. It is essential for smooth engine operation and emissions compliance. A malfunction can trigger a range of performance issues, from rough idle to complete loss of power. Proper replacement ensures the vehicle runs as designed. 2012 Volkswagen Golf engine control module maintains communication with other control units and stores fault data for diagnostics.
Where the PCM Is Located and What Replacement Involves
The ECM for the 2012 Golf is located in the plenum chamber, positioned behind the intake assembly. Access typically involves removing the intake cover to reach the module. The factory labor estimate for removal and replacement is 1.4 hours. Once the unit is secured, a relearn step of 0.5 hours is required to synchronize the new module with the vehicle’s systems.

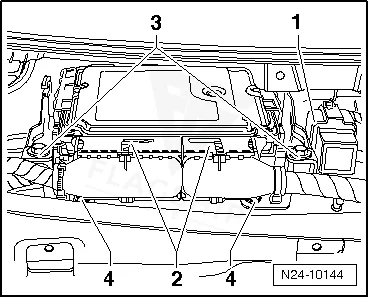

How to Reach the PCM on the 2012 Volkswagen Golf
- Turn off the ignition.
- Remove the windshield wiper arms.
- Remove the plenum chamber cover.
- Disconnect the connector from the windshield defoggercontrol module.
- Slide the connector latches on the ECM outward and re‐move both connectors.
- Remove the bolts.
- Remove the mounting frame with the ECM from the plenumchamber.
- Press the release latches outward and slide the ECM in the -direction of the arrow.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | Golf | 1.4 hr |
| Engine Control Module R&R | GTI | 0.9 hr |
| Engine Control Module R&R | Golf R | 1.4 hr |
| Engine Control Module Relearn | Golf | 0.5 hr |
| Engine Control Module Relearn | GTI | 0.5 hr |
| Engine Control Module Relearn | Golf R | 0.5 hr |
| Powertrain Control Module R&R | Golf | 1.4 hr |
| Powertrain Control Module R&R | Without Anti-Theft System | 1.8 hr |
Programming Requirements After Replacement
After installing a new ECM, the factory procedure calls for a relearn of the module’s parameters, which takes about half an hour. Flagship One units arrive already VIN‑programmed, so the relearn step is effectively completed at installation. a VIN-programmed replacement unit eliminates the need for additional coding in the shop.
Symptoms of a Failing PCM
Typical signs of a failing ECM in a 2012 Golf include a complete no‑start condition, engine stalling under load, and persistent misfire codes such as cylinder misfire code P0300. You may also notice erratic idle, loss of power, or a dead scan‑tool communication link, all of which point to the module’s loss of function.
Factory Service Bulletins Worth Knowing
Bulletin #24-11-05 TT 24-11-05 2011 addresses vehicles equipped with UDS communication ECMs and outlines the procedure for erasing DTCs in the ECM memory. Bulletin #01-09-09 provides an update for programming when the MIL is illuminated, covering codes P0300‑P0304, P0102, P1297, P0420 and P0441 stored in the ECM fault memory.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 24-11-05 | TT 24-11-05 2011> Vehicles with UDS communication Engine Control Modules – Erasing DTCs in t | — |
| 01-09-09 | Attachment: 01-09-09 – Update Programming, MIL ON, DTCs P0300-P0304, P0102, P1297, P0420 and P0 | — |
Protecting the PCM in Your 2012 Volkswagen Golf
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean all ground connections and connector pins regularly.
- Avoid jump‑starting the vehicle unless absolutely necessary to prevent voltage spikes.
- Address any diagnostic trouble codes promptly before they recur.
- Ensure connector seals remain intact to protect against moisture ingress.
Frequently Asked Questions
Can I replace the ECM on my 2012 Volkswagen Golf myself?
The replacement requires removal of the intake cover and a relearn procedure, which may be challenging without proper tools and diagnostic equipment.
What labor time should I expect for an ECM replacement on a Golf?
Factory labor estimates list about 1.4 hours for removal and installation, plus an additional 0.5 hours for the relearn step.
Do I need to program the new ECM after installation?
If you use a Flagship One VIN‑programmed unit, the required programming is already completed, simplifying the installation.
When the ECM fails, you can either have a new factory‑spec unit installed or consider a refurbished replacement that matches the original specifications. Both options aim to restore the 2012 Volkswagen Golf’s performance, but a VIN‑programmed replacement can reduce shop time and potential errors.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Volkswagen Golf with a lifetime warranty, free shipping and no core charge. The full Volkswagen Golf module lineup covers other engine configurations as well.
Final Thoughts
For owners of a 2012 Volkswagen Golf, addressing ECM issues promptly helps maintain reliable engine operation. Choosing a properly programmed replacement ensures the vehicle returns to normal performance with minimal downtime.
