2012 Toyota RAV4 Engine Control Module Replacement Guide Overview
The engine computer manages fuel delivery and ignition timing within your 2012 Toyota RAV4. Internal processing errors may trigger specific diagnostic trouble codes. When this unit fails, you might experience drivability concerns or illumination of the check engine light on the dashboard.
Quick Summary
- Factory book time for module removal is 0.8 hours.
- Access requires removing the air cleaner assembly components.
- A waiting period is necessary after battery disconnection.
- Internal processor codes include P0604 and P0606.
Owning a 2012 Toyota RAV4 means understanding how electronic management affects performance. When the central computer malfunctions, diagnosing the issue requires specific knowledge about access and safety protocols. This guide explains the physical location of the unit and the steps necessary for removal. You will learn about the required waiting periods to ensure safety systems remain disabled during service. Understanding these procedures helps you prepare for professional service or assess repair complexity. We focus on factual labor times and factory cautions relevant to your vehicle. Proper handling prevents accidental airbag deployment or electrical damage. Reading this information ensures you know what to expect during the replacement process. Knowledge of the specific bolts and connectors involved aids in planning.
What the PCM Does in a 2012 Toyota RAV4
This component controls essential powertrain functions including fuel mixture and spark timing. Proper operation ensures your 2012 Toyota RAV4 runs smoothly under various driving conditions. If the internal processor fails, the engine may not start or could stall unexpectedly. Mechanics often recommend checking power and ground connections before condemning the unit. Replacement involves sourcing a compatible computer that matches your engine configuration. You might consider replacement engine computers for the RAV4 when the original unit cannot be repaired. These components require precise calibration to communicate with other vehicle systems. Ignoring faults may lead to reduced fuel economy or performance limitations. The system monitors sensors continuously to adjust output in real time. Maintaining this hardware is critical for long-term reliability of the powertrain.

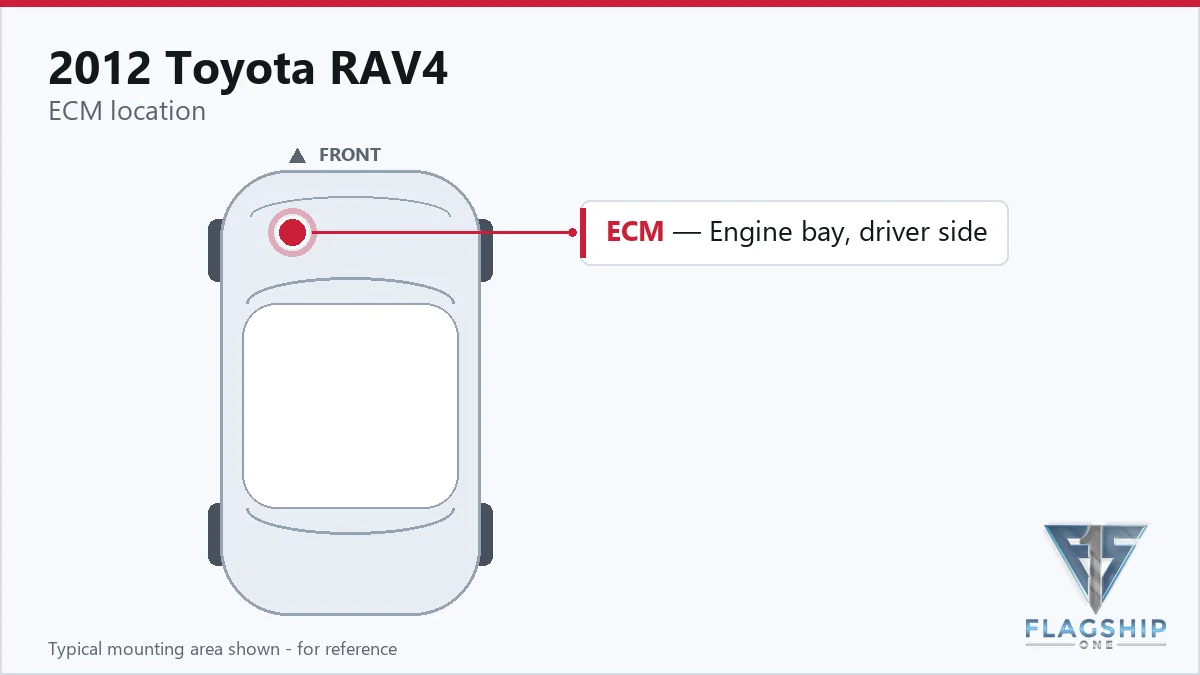

Where the PCM Is Located and What Replacement Involves
A pause of 90 seconds is mandatory following negative terminal disconnection. This delay prevents airbag and seat belt pretensioner activation. Technicians access the unit situated beside the air cleaner assembly. The path requires detaching the negative battery terminal cable. Factory caution indicates waiting time may be required before cable disconnection from the battery terminal. Steps include removing the air cleaner cap and removing the air cleaner case. Remove the ECM by taking out the three bolts securing the ECM bracket. Book time for Engine Control Module R&R requires 0.8 hours. Relearn procedures for the Engine Control Module take 0.5 hours. Powertrain Control Module R&R takes 0.8 hours. Relearn for the Powertrain Control Module is 0.5 hours. Detach the mass air flow sensor connector during the process.
How to Reach the PCM on the 2012 Toyota RAV4
- Disconnect cable from negative battery terminal.
- REMOVE AIR CLEANER CAP More Info REMOVE AIR CLEANER CASE More Info.
- Remove the 3 bolts of the ECM bracket.
- Disconnect the 2 ECM connectors.
- Raise the 2 levers while pushing the locks on the 2 levers, and disconnect the 2 ECM connectors.
- Remove the ECM with bracket.
- Remove the 4 screws and 2 ECM brackets.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Factory procedures often require relearn steps after installing a new computer. Engine Control Module Relearn requires 0.5 hours according to book times. Powertrain Control Module Relearn requires 0.5 hours as well. These steps configure the unit to communicate with your specific vehicle. Flagship One units arrive VIN-programmed so those steps are already done. You might select a VIN-programmed replacement unit to simplify the installation process. This eliminates the need for additional calibration tools at the shop. Proper programming ensures the engine management system functions correctly immediately. Skipping these configurations may result in poor performance or no-start conditions. Our modules come ready to install without extra setup time. This approach reduces labor costs associated with post-installation configuration.
Symptoms of a Failing PCM
Common signs of module failure include engine stalling or no-start conditions. You might experience misfire codes or dead scan-tool communication. Shifting issues may occur if the computer cannot process data. Internal processor faults often trigger specific diagnostic trouble codes. For example, internal random access memory errors indicate processing failures within the unit. Another code like P0606 suggests processor faults affecting operation. These symptoms often appear intermittently before total failure occurs. Your 2012 Toyota RAV4 may enter limp mode to protect the engine. Loss of power or rough idle are frequent complaints from owners. Addressing these signs early prevents further damage to related systems. Mechanics typically verify power supply before replacing the main computer.
Module Trouble Codes on the 2012 Toyota RAV4
The following list includes documented trouble codes internal to the module for this vehicle. These codes point to processing errors within the engine computer. P0604 and P0606 are specifically noted for this model year. Review these identifiers when diagnosing communication or performance losses.
| Code | Meaning | Full Guide |
|---|---|---|
| P0604 | Internal RAM error | Full P0604 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2012 Toyota RAV4
- Maintain charging-system health to avoid voltage spikes.
- Keep grounds and connectors clean and secure.
- Avoid jump-start voltage spikes during battery service.
- Address diagnostic codes promptly to prevent further issues.
- Keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
Where is the ECM located on a 2012 Toyota RAV4?
The unit sits next to the air cleaner assembly. Access requires removing the air cleaner case and cap. Technicians must disconnect the battery cable before starting work.
How long does ECM replacement take on a 2012 Toyota RAV4?
Book time for removal and replacement is 0.8 hours. Relearn procedures add another 0.5 hours to the total labor. Times vary based on shop rates and conditions.
What codes indicate ECM failure in a 2012 Toyota RAV4?
Internal processor faults often trigger codes like P0604. P0606 may also appear indicating processor malfunctions. These suggest the computer requires replacement or repair.
