2012 Mitsubishi Galant PCM and ECM Replacement Guide
In the 2012 Mitsubishi Galant, the Powertrain Control Module (PCM) and Engine Control Module (ECM) manage fuel delivery, ignition timing, and emission controls. A failure typically disables engine management, leading to loss of power, stalling, or inability to start, and may trigger the internal fault P0606.
Quick Summary
- PCM or ECM failure can cause no‑start or erratic idle in the 2012 Galant.
- Factory warning: never replace both control units at the same time.
- Each replacement requires a half‑hour labor slot for removal and a half‑hour for relearn.
- The only documented internal code for this model is P0606.
- Flagship One units arrive VIN‑programmed, eliminating the relearn step.
When a 2012 Mitsubishi Galant begins to exhibit starting problems, rough idle, or unexpected loss of power, the engine’s electronic brains—the Powertrain Control Module and Engine Control Module—are often the culprits. Understanding how these modules function, where they sit, and what the factory mandates after a swap can save you time and money. This guide walks you through the essential facts, from locating the units to completing the required post‑install procedures, so you know exactly what to expect when you or a technician works on your vehicle’s control electronics.
What the PCM Does in a 2012 Mitsubishi Galant
The Powertrain Control Module in a 2012 Mitsubishi Galant acts as the central command for the engine and transmission, interpreting sensor data to adjust fuel injection, spark timing, and shift points. The Engine Control Module, while closely related, focuses on engine‑specific parameters such as idle speed and emissions controls. Together they ensure the powertrain runs smoothly and meets regulatory standards. Because these computers store encrypted calibration data, any replacement must be matched to the vehicle’s VIN. This is why the factory cautions against swapping both units simultaneously; the encrypted code must be registered for each new module. Proper function of these modules is critical for reliable acceleration, fuel efficiency, and emissions compliance. replacement engine computers for the 2012 Mitsubishi Galant ensures that only matched units are used.
Where the PCM Is Located and What Replacement Involves
Both the PCM and ECM are mounted within the engine compartment of the 2012 Mitsubishi Galant, typically attached to the firewall or near the intake manifold. Removal involves disconnecting the main power connector, undoing the mounting bolts, and extracting the unit. The factory book time for removing and reinstalling each module is listed as half an hour, reflecting the straightforward access in this model. After the unit is seated, the connector is re‑engaged and the mounting hardware torqued to the specification provided in the service manual. The process is the same for either the PCM or the ECM, and the labor time does not change based on which unit is being serviced.

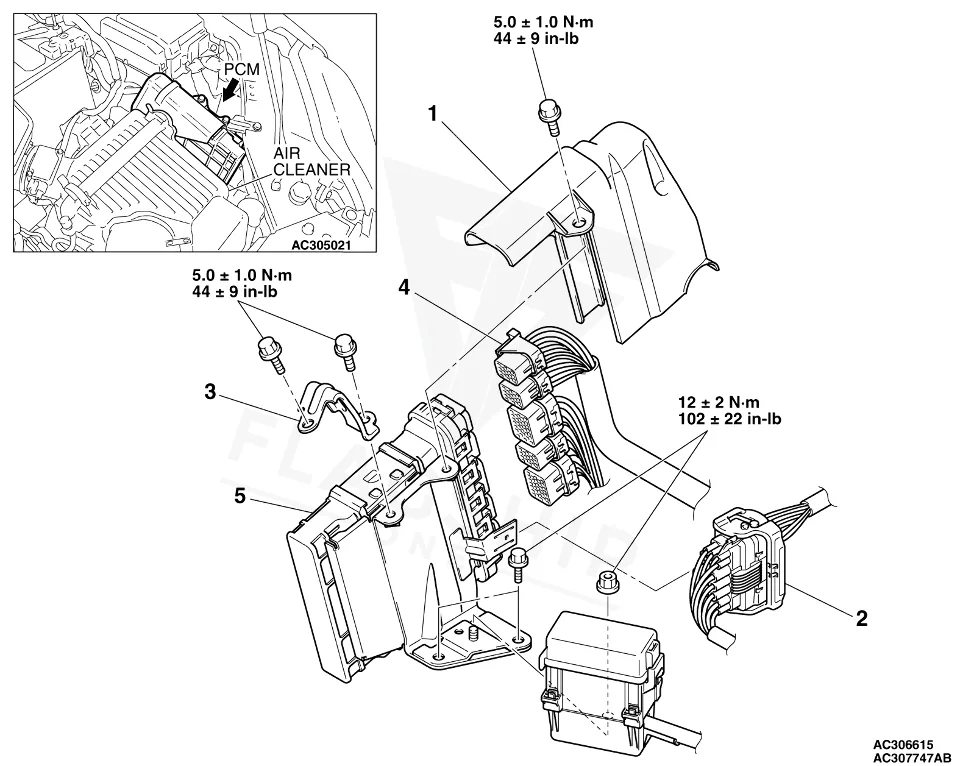

How to Reach the PCM on the 2012 Mitsubishi Galant
- Remove the PCM connector cover.
- Remove the control wiring harness connector clamp.
- Remove the PCM bracket.
- Remove the PCM connectors.
- Remove the break-off bolts.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
Programming Requirements After Replacement
Once a PCM or ECM is installed in the 2012 Galant, the factory requires an encrypted code registration and a relearn procedure to synchronize the new computer with the vehicle’s existing systems. This includes a half‑hour Engine Control Module relearn step after the physical swap. Flagship One supplies units that are already VIN‑programmed, meaning the encrypted code registration and relearn have been completed at the factory. a VIN‑programmed replacement unit can be installed directly, and the vehicle will resume normal operation without the additional programming step.
Symptoms of a Failing PCM
A failing PCM or ECM in a 2012 Mitsubishi Galant often presents as a complete no‑start condition, intermittent stalling, rough idle, or reduced power under load. Drivers may notice the check engine light flashing and see diagnostic trouble codes appear on a scan tool. One specific fault that can surface is the internal code P0606, which indicates a malfunction within the PCM itself. In addition to these signs, you might experience erratic transmission shifting or a loss of fuel efficiency, all of which point back to the engine’s electronic control system.
Module Trouble Codes on the 2012 Mitsubishi Galant
The following internal diagnostic codes have been documented for the 2012 Mitsubishi Galant’s control modules:
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2012 Mitsubishi Galant
- Maintain a healthy charging system to avoid voltage fluctuations that can corrupt module memory.
- Inspect and clean all ground connections and connector pins regularly.
- Avoid jump‑starting the vehicle with excessive voltage spikes.
- Address any stored diagnostic codes promptly to prevent further module stress.
- Keep connector seals dry and free of corrosion.
- Use proper battery terminal torque to ensure stable electrical supply.
Frequently Asked Questions
What should I do if my 2012 Mitsubishi Galant shows a P0606 code?
A P0606 code signals an internal PCM fault. Typically the PCM will need to be inspected, and if it is defective, replaced with a VIN‑programmed unit to restore proper operation.
Can I replace both the PCM and ECM at the same time on my 2012 Galant?
The factory advises against simultaneous replacement. Replace one module first, register its encrypted code, then address the second if needed.
How long will it take a shop to replace the PCM in my 2012 Galant?
The labor guide lists 0.5 hours for removal and another 0.5 hours for the Engine Control Module relearn after installation.
Do I need special tools to program a new PCM in the 2012 Galant?
When using a Flagship One VIN‑programmed unit, the factory programming steps are already completed, so no additional tools are required for code registration.
What are common symptoms of a bad ECM in this vehicle?
Typical signs include rough idle, stalling, poor fuel economy, and the illumination of the check engine light with related trouble codes.
When the PCM or ECM in your 2012 Mitsubishi Galant fails, you can choose between a brand‑new factory‑programmed replacement or a refurbished unit that meets the same specifications. Both options restore the vehicle’s electronic control functions, but a refurbished module from Flagship One offers the same VIN‑programmed readiness at a lower cost, giving you flexibility while keeping the repair straightforward.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Mitsubishi Galant with a lifetime warranty, free shipping and no core charge. The full Mitsubishi Galant module lineup covers other engine configurations as well.
Final Thoughts
The 2012 Mitsubishi Galant relies on its PCM and ECM to manage engine performance and emissions. Whether you opt for a new or refurbished replacement, ensuring the proper post‑install steps are followed will get your vehicle back on the road quickly. Consider your budget and timing, and choose the solution that best fits your needs.
