2012 Fiat 500 Powertrain Control Module (PCM) Overview
In the 2012 Fiat 500 the Powertrain Control Module governs engine and transmission functions, interpreting sensor data to control fuel, spark and shift timing. A malfunction can interrupt power delivery, trigger stalling, or cause loss of communication with diagnostic tools, often prompting fault codes such as P0601 or P0606.
Quick Summary
- PCM sits behind the battery tray, accessible from the engine compartment.
- Typical labor times range from 0.3 to 0.7 hours for relearn and replacement tasks.
- Factory reprogramming requires VIN and mileage entry via a scan tool.
- Flagship One units arrive pre‑programmed, eliminating the post‑install step.
When a 2012 Fiat 500 exhibits erratic engine behavior or loss of powertrain control, the PCM is a frequent suspect. This guide explains what the module does, where it lives, how it is serviced, and what you can expect after a replacement. By the end you should understand the labor involved, the programming requirements, and the practical steps to keep the PCM operating reliably.
What the PCM Does in a 2012 Fiat 500
The Powertrain Control Module in the 2012 Fiat 500 interprets signals from dozens of sensors and commands the fuel injectors, ignition coils and transmission solenoids to achieve smooth operation. It stores calibration data and monitors system health, so any loss of its function can lead to rough idle, stalling or loss of driveability. Proper function is essential because the vehicle relies on the PCM for both engine and transmission coordination. Replacement units are typically marketed as replacement powertrain control modules for the 2012 Fiat 500 and must match the original specifications.
Where the PCM Is Located and What Replacement Involves

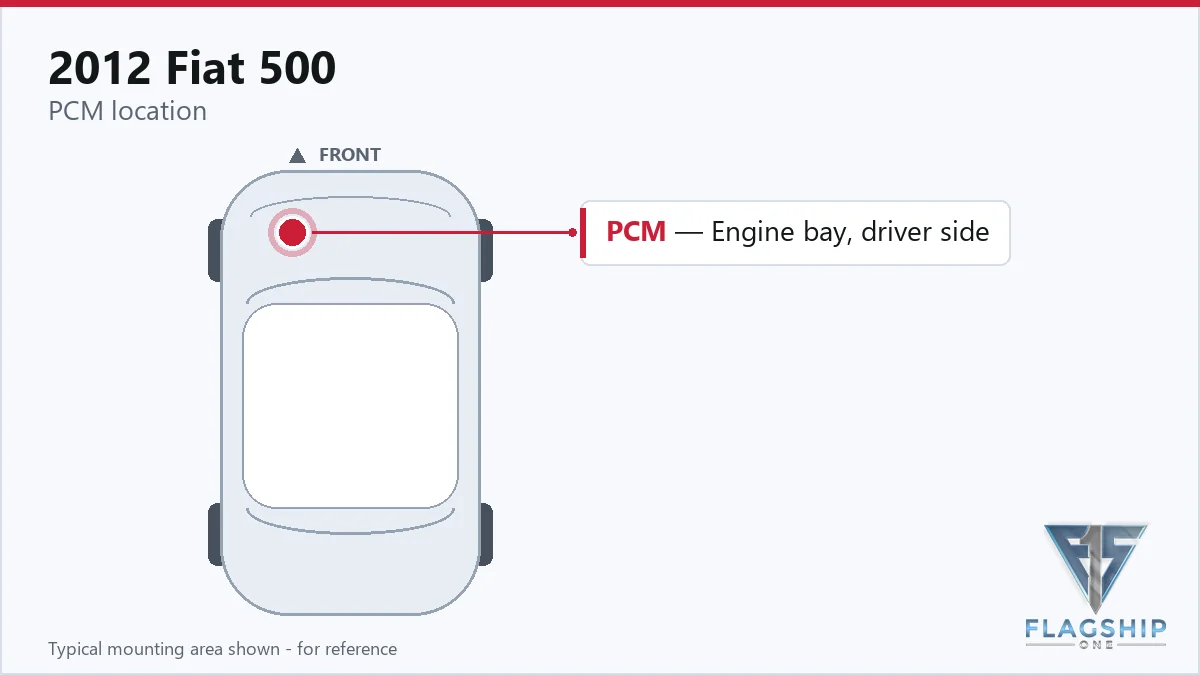

The PCM is mounted in the engine compartment on the rear side of the battery tray, as noted in the electrical layout. Access involves removing the battery tray cover, then disconnecting the module connector and any securing bolts. Labor estimates indicate a 0.5‑hour task for a PCM relearn, 0.7 hours for removal and reinstall, and a 0.3‑hour reset for the ECM. No torque specifications are provided, so follow standard fastener tightening practices for the vehicle.
How to Reach the PCM on the 2012 Fiat 500
- Disconnect and.
- Remove the battery.
- Disconnect the.
- Remove the nut.
- Open the two wire.
- Remove the four.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
Programming Requirements After Replacement
After installing a new PCM, the factory procedure calls for a diagnostic scan tool to write the original VIN and mileage into the unit. Flagship One supplies a a VIN‑programmed replacement unit that arrives with those values already loaded, so the reprogramming step is already satisfied.
Symptoms of a Failing PCM
Typical signs of a failing PCM in a 2012 Fiat 500 include engine no‑start, intermittent stalling, rough idle, and loss of communication with scan tools. You may also see shift‑related problems or unexpected limp‑mode operation. When the fault triggers a diagnostic code, one common entry is internal PCM processor fault, indicating an internal processing error that often requires module replacement.
Module Trouble Codes on the 2012 Fiat 500
The following internal trouble codes are documented for the 2012 Fiat 500 PCM and may appear during diagnosis:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Service bulletin Rc‑M32‑12 advises a customer‑satisfaction reprogram for the PCM. The bulletin outlines the need to update the module software to address intermittent communication issues and to ensure proper operation after replacement.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Rc-M32-12 Customer Satisfaction Notification M32 – Reprogram Powertrain Control Module | — |
Protecting the PCM in Your 2012 Fiat 500
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean ground straps and connector pins regularly.
- Use surge protectors or avoid aggressive jump‑starts that can spike voltage.
- Address any stored fault codes promptly to prevent further module stress.
- Verify that connector seals remain intact to keep moisture out.
Frequently Asked Questions
What does a PCM replacement cost in labor for a 2012 Fiat 500?
Labor time typically ranges from 0.5 to 0.7 hours for removal, reinstall and relearn, depending on the specific service performed.
Do I need a special tool to program a new PCM in a 2012 Fiat 500?
Yes, a diagnostic scan tool is required to write the vehicle’s VIN and mileage into the new module, unless you use a pre‑programmed unit.
Can a faulty PCM cause transmission shifting problems in the 2012 Fiat 500?
Because the PCM also controls transmission solenoids, a malfunction can lead to erratic shifting or limp‑mode operation.
When the PCM in your 2012 Fiat 500 needs service, you can choose a repair that restores the original unit or replace it with a refurbished module. Both approaches require the same post‑install programming, but a pre‑programmed replacement from Flagship One may reduce shop time. Evaluate your schedule and budget to decide which path best fits your needs.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Fiat 500 with a lifetime warranty, free shipping and no core charge. The full Fiat 500 module lineup covers other engine configurations as well.
Final Thoughts
The Powertrain Control Module is central to the performance of your 2012 Fiat 500. Understanding its location, service times and programming requirements helps you make an informed decision about repair or replacement. Contact a qualified technician to assess the condition and ensure proper reprogramming.
