2012 Buick Regal PCM/ECM Issues and Solutions
In the 2012 Buick Regal the powertrain control module (PCM) and engine control module (ECM) manage engine timing, fuel delivery, and transmission shifting. A failure typically disrupts communication, triggers diagnostic codes, and can cause loss of power or drivability problems.
Quick Summary
- Relearn procedures for PCM and ECM each require about half an hour of labor.
- Factory cautions stress turning off ignition before handling ECM connectors.
- Special equipment and correct calibrations are needed for ECM reprogramming.
- Service bulletins #PIP4933D and #11295B address ECM part restrictions and update procedures.
When a 2012 Buick Regal experiences irregular performance, the powertrain and engine control modules often lie at the heart of the issue. Understanding how these computers operate and what steps are required for a proper replacement can save time and prevent further damage. This guide walks you through the module’s function, typical symptoms, required safety steps, and what to expect from a Flagship One replacement unit.
What the PCM Does in a 2012 Buick Regal
The PCM and ECM in a 2012 Buick Regal act as the vehicle’s command center, continuously processing sensor data to control fuel injection, ignition timing, and transmission shift points. Their proper operation is essential for smooth acceleration, fuel efficiency, and emissions compliance. A malfunction can interrupt these processes, leading to drivability concerns and error codes. Replacement modules are typically sourced as 2012 Buick Regal replacement ECM that meet the original specifications.

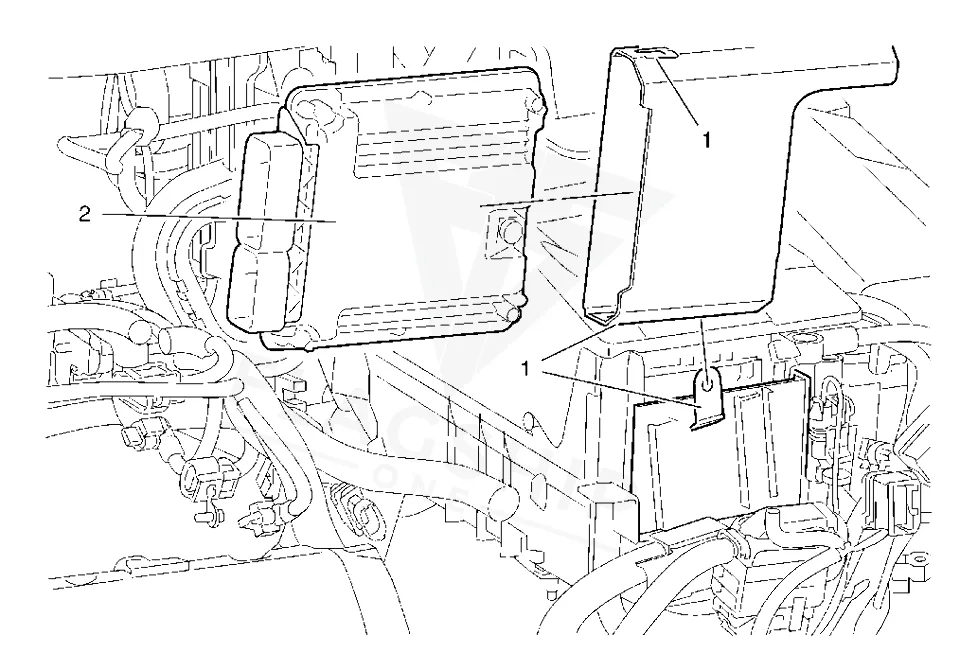

Where the PCM Is Located and What Replacement Involves
The control modules reside within the engine compartment, connected to a harness of electrical plugs. Removal and installation are timed at 0.6 hours for each R&R task, while relearn procedures add another 0.5 hours per module. The factory caution advises turning the ignition off before disconnecting any ECM connectors to avoid component damage.
How to Reach the PCM on the 2012 Buick Regal
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the electrical connector.
- Pull up the engine control module from the battery box.
- Open with caution both retainers at the sides and pull the engine control module outside.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.6 hr |
Programming Requirements After Replacement
After installing a new module, the factory procedure calls for a specific reprogramming sequence using calibrated equipment and the correct software version. Flagship One units arrive pre‑configured, so the required steps are already completed when you receive a VIN-programmed replacement unit. This eliminates the need for on‑site programming and reduces the risk of calibration errors.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2012 Buick Regal include engine cranking without start, intermittent stalling, rough idle, and loss of transmission shift control. Diagnostic scans often reveal trouble codes such as internal control module fault which directly point to a communication problem within the module.
Module Trouble Codes on the 2012 Buick Regal
The following diagnostic trouble codes are commonly logged by the 2012 Buick Regal when the PCM or ECM experiences issues:
Factory Service Bulletins Worth Knowing
Bulletin #PIP4933D issued on July 11, 2012 addresses part restrictions for the E39 ECM. Bulletin #11295B from December 2, 2011 provides a service update covering ECM software, MGU weld inspection, and belt tensioner bolt torque specifications.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | PQC Part Restriction – E39 ECM – (Jul 11, 2012) | — |
| — | Service Update for Inventory and Customer Vehicles-ECM Update, MGU Weld Inspect, Belt Tensioner | — |
Protecting the PCM in Your 2012 Buick Regal
- Maintain a healthy charging system to avoid voltage irregularities.
- Ensure all ground points and connectors are clean and tightly secured.
- Avoid jump‑start voltage spikes that can damage electronic modules.
- Address diagnostic codes promptly before they worsen.
- Inspect connector seals regularly to keep moisture out.
Frequently Asked Questions
What should I do if my 2012 Buick Regal shows a P0601 code?
First, verify the connector integrity and battery voltage. If the issue persists, consider a PCM/ECM relearn or replacement following the labor times outlined.
Can I replace the ECM myself on a 2012 Buick Regal?
You may, but you must follow the factory caution to turn off the ignition before disconnecting connectors and be prepared for the required relearn procedures.
Do I need special tools to program a new PCM in my 2012 Buick Regal?
Factory programming requires calibrated equipment and the correct software. A Flagship One unit arrives pre‑programmed, eliminating the need for additional tools.
When the PCM or ECM in your 2012 Buick Regal fails, you can choose a professional repair or install a refurbished replacement. Both options address the core issue, but a Flagship One unit offers the advantage of factory‑level programming already applied, simplifying the post‑install process.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Buick Regal with a lifetime warranty, free shipping and no core charge. The full Buick Regal module lineup covers other engine configurations as well.
Final Thoughts
Understanding the role of the PCM and ECM in your 2012 Buick Regal helps you make an informed decision about repair or replacement. Consider a VIN‑programmed unit to streamline the fix and keep your vehicle running smoothly.
