2011 Ford Ranger PCM and ECM Replacement and Programming Guide

Dealing with an unresponsive engine in your 2011 Ford Ranger can be a frustrating experience, especially when the cause is an internal electronic failure. The Powertrain Control Module, often referred to as the PCM or ECM, serves as the central brain for your vehicle’s engine management. It processes data from various sensors to ensure the engine runs efficiently and reliably. When this hardware malfunctions, the symptoms can range from subtle performance drops to a total lack of combustion. Understanding how this module interacts with other systems, such as the instrument cluster and the security system, is essential for a successful repair. This guide provides a technical overview of the module’s role, the labor involved in replacing it, and the critical programming steps required to get your vehicle back on the road. By the end of this article, you will understand the complexities of the PATS system and why precise configuration of the replacement computer is necessary to avoid common installation pitfalls.

What the PCM Does in a 2011 Ford Ranger

The Powertrain Control Module in your 2011 Ford Ranger is a sophisticated electronic unit that monitors and controls the engine’s operation. It manages the air-fuel mixture, ignition timing, and emission controls by interpreting signals from oxygen sensors, mass airflow sensors, and crankshaft position sensors. Because it acts as the primary coordinator for the 2.3L engine, any internal circuitry failure can lead to erratic behavior or a complete loss of engine power. This module ensures that the engine operates within safe parameters and maximizes fuel efficiency. When you seek replacement computers for 2011 Ford Ranger, it is important to recognize that the PCM does not work in isolation. It communicates constantly with other onboard computers to synchronize vehicle speed, gear selection, and security authentication. If the communication link between the PCM and the instrument cluster is severed or mismatched, the vehicle’s security system will trigger. This interaction is vital because the computer must verify that the key matches the expected security code before allowing the engine to fire. Without this handshake, the vehicle remains immobilized. This integration is why a simple hardware swap is rarely sufficient; the software must be perfectly aligned with the rest of the vehicle’s electronic architecture to ensure the engine starts and runs smoothly without triggering security faults. This complex relationship between the PCM and the cluster is what defines the security of the vehicle.

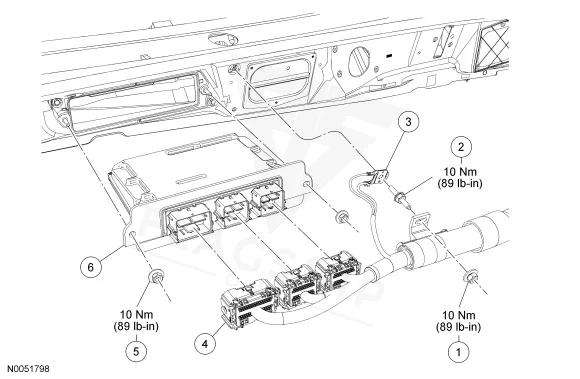

Where the PCM Is Located and What Replacement Involves

The installation process for the computer in your 2011 Ford Ranger is relatively straightforward in terms of physical labor. Removing and replacing the Powertrain Control Module typically takes 0.5 hours. If you are replacing the Engine Control Module, the removal and installation process is estimated at 0.6 hours. Once the hardware is in place, the relearn process for the Powertrain Control Module generally requires another 0.5 hours, while the Engine Control Module relearn also takes 0.5 hours. A critical step during this process involves the security system. When installing a new PCM, you must clear and update the settings in the PCM and the instrument cluster. Failure to perform this specific synchronization will often trigger a security lockout known as a PATS no-start, meaning the vehicle will not start because the security modules are not communicating correctly.

Programming Requirements After Replacement

Standard factory procedures for replacing the PCM in your 2011 Ford Ranger require a detailed programming sequence to link the new hardware to the vehicle’s security system. This typically involves using a specialized scan tool to reset parameters in both the engine computer and the instrument cluster. Without this step, the PATS system will block the engine from starting. However, the process is simplified when using a VIN-programmed replacement unit from Flagship One. Because these units are pre-configured with your specific Vehicle Identification Number, the complex initial programming and VIN matching are already completed. This eliminates the need for the labor-intensive factory setup and reduces the risk of triggering a security lockout. You can focus on the physical installation and the basic relearn procedures, knowing that the core identity of the module is already synchronized to your vehicle’s requirements, which significantly streamlines the repair process and ensures a higher probability of a first-time start. This approach removes the frustration of dealing with security mismatches.

Symptoms of a Failing PCM

When the PCM in your 2011 Ford Ranger begins to fail, the symptoms are often varied and can mimic other mechanical issues. You may notice a sudden no-start condition where the engine cranks but fails to ignite, often accompanied by a security light on the dashboard. Stalling while idling or during deceleration is another common sign of internal computer failure. In some cases, the vehicle may experience intermittent misfires or erratic idling that cannot be traced to spark plugs or fuel injectors. You might also find that your scan tool is unable to establish communication with the module, which effectively blinds the technician to the engine’s internal state. Shifting issues or poor acceleration can also occur if the PCM is unable to accurately process sensor data. While not always present, a fault like an internal control module error may be triggered, indicating that the computer has detected a failure within its own processing circuitry. These issues often stem from heat soak, moisture intrusion, or electrical surges that damage the delicate solder joints or capacitors inside the module. Because the PCM is the central hub for engine logic, any instability in its operation typically manifests as a broad range of performance problems that make the vehicle unreliable or unsafe to drive. This can lead to a situation where the vehicle behaves unpredictably during highway driving or fails to restart after a short trip.

Protecting the PCM in Your 2011 Ford Ranger

• Maintain a healthy charging system to prevent voltage spikes.
• Ensure all ground connections are clean and tight.
• Keep electrical connectors free of corrosion and moisture.
• Avoid using jump-start methods that cause significant voltage surges.
• Address any engine-related trouble codes immediately.
• Check that the weather seals on the module connectors remain intact.

Frequently Asked Questions

Can a bad PCM cause a no-start in my 2011 Ford Ranger?

Yes, if the module fails or is not properly synced with the instrument cluster, the PATS system may prevent the engine from starting. This is common during improper replacements.

How long does it take to replace the PCM in a 2011 Ford Ranger?

The physical removal and replacement is typically estimated at 0.5 hours, though a relearn process of another 0.5 hours is often required.

Do I need to program the instrument cluster when replacing the PCM?

If a new PCM is installed, parameters must be reset in both the PCM and the instrument cluster to avoid a PATS no-start.

What is the difference between the PCM and ECM for the 2011 Ford Ranger?

In many contexts, these terms are used interchangeably to describe the main engine computer, though labor times for R&R may vary slightly between 0.5 and 0.6 hours.

Will a pre-programmed PCM work immediately in my 2011 Ford Ranger?

A VIN-programmed unit handles the initial identity matching, which eliminates the need for the complex factory VIN programming steps.

When deciding how to address a failed computer in your 2011 Ford Ranger, you have several options. While some choose to attempt repairs on the original board, a refurbished replacement often provides a more reliable long-term solution. Choosing a module specifically configured for your vehicle ensures that the complex electronic handshakes between the PCM and the security system are handled correctly, reducing the likelihood of unexpected no-start issues after installation.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2011 Ford Ranger with a lifetime warranty, free shipping and no core charge. The full Ford Ranger module lineup covers other engine configurations as well.

Final Thoughts

Properly replacing the engine computer in your 2011 Ford Ranger requires attention to both hardware installation and software synchronization. By understanding the role of the PATS system and the necessity of parameter resets, you can ensure a successful repair. If you are ready to resolve your electronic issues, explore the professional replacement options available to get your vehicle back on the road.
