2011 BMW X5M ECM and PCM Replacement Guide
In the 2011 BMW X5M, the Engine Control Module (ECM) and Powertrain Control Module (PCM) manage engine timing, fuel delivery, and transmission coordination. Failure of either unit can trigger a check engine light, store fault codes, and disrupt powertrain operation.
Quick Summary
- Check engine light often appears with stored DME/ECM faults.
- Factory removal accesses the module inside the E‑box in the engine bay.
- Replacement labor ranges from 0.8 to 2.3 hours depending on fuel type.
- Post‑install relearn takes about half an hour.
- Flagship One units arrive VIN‑programmed, eliminating extra coding steps.
When a 2011 BMW X5M displays a illuminated check engine light and stores fault codes, the underlying issue may involve the engine or powertrain control modules. Understanding how these computers function, where they sit, and what work is required to replace them can help you decide between a repair or a refurbished replacement. This guide outlines the module’s role, typical labor times, location, programming needs, and practical steps to keep the system healthy.
What the PCM Does in a 2011 BMW X5M
The ECM and PCM in a 2011 BMW X5M act as the vehicle’s command centers, interpreting sensor data to control fuel injection, ignition timing, and transmission shifting. Their proper operation is critical for performance, emissions compliance, and drivability. A malfunction can cause misfires, stalling, or loss of power. The modules are accessed via the electronics box in the engine compartment, and replacement engine modules for X5M are often swapped when internal faults arise.

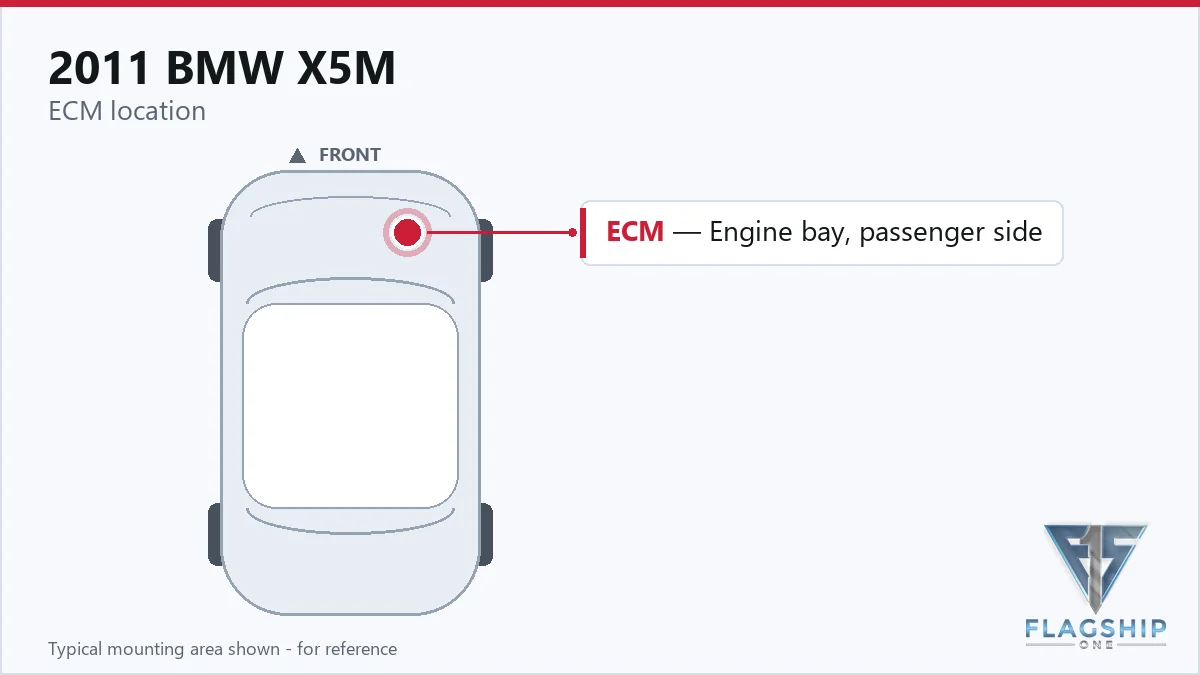

Where the PCM Is Located and What Replacement Involves
The control modules reside within the electronics box (E‑box) located in the engine compartment of the 2011 BMW X5M. Removal follows the factory procedure that reaches the module through this box. Labor times listed include 2.3 hours for a gasoline ECM removal and replacement, 0.8 hours for a diesel variant, and 0.8 hours for a 4.4L PCM swap. After the unit is removed, the reinstall includes a relearn step of 0.5 hours to restore proper communication.
How to Reach the PCM on the 2011 BMW X5M
- Lever out expanding rivet.
- Remove gasket.
- Release locks in direction of arrow.
- Release lock in direction of arrow.
- Remove cover.
- Release screws and remove retaining bar.
- Unlock upper section of partition seal in direction of arrow and remove.
- Release grommets for wiring looms from lower section of partition seal and from electronics box.
- Unlock connector on control unit and disconnect.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | GAS | 2.3 hr |
| Engine Control Module R&R | DIESEL | 1.0 hr |
| Engine Control Module R&R | GAS | 0.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | GAS | 1.7 hr |
| Powertrain Control Module R&R | 4.4L | 0.8 hr |
| Powertrain Control Module R&R | DIESEL | 1.0 hr |
Programming Requirements After Replacement
After installing a new module, the factory process requires a relearn of the control parameters, which typically takes about half an hour. Flagship One units arrive a VIN-programmed replacement unit so the relearn is already completed, streamlining the installation.
Symptoms of a Failing PCM
Common signs of a failing ECM or PCM in the 2011 BMW X5M include a persistent check engine light, engine hesitation, rough idle, or transmission shifting irregularities. In many cases the diagnostic scanner will report A2CB:internal fault indicating an internal control module fault, which aligns with the stored DME/ECM errors.
Factory Service Bulletins Worth Knowing
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Check Engine Light Illuminated, Faults Stored in DME/ECM | — |
| — | Controller Fault Code A2CB Internal Control Module Fault | — |
Protecting the PCM in Your 2011 BMW X5M
- Maintain a healthy charging system to avoid voltage stress on the modules.
- Ensure all ground connections and connector pins are clean and tight.
- Avoid high‑voltage spikes from jump‑starts or aftermarket accessories.
- Address any stored fault codes promptly before they worsen.
- Inspect and keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
What does a check engine light indicate on my 2011 BMW X5M?
It typically signals that the ECM or PCM has detected an abnormal condition and stored a fault code, which may affect engine performance or emissions.
Can I replace the ECM myself on a 2011 BMW X5M?
Replacement is possible, but it requires accessing the E‑box in the engine compartment and following the factory labor steps, including a post‑install relearn.
Will a refurbished module work as well as a new one?
A properly refurbished unit that is VIN‑programmed should perform equivalently to a new module, provided it meets the manufacturer’s specifications.
When your 2011 BMW X5M needs a new control module, you can choose a direct repair with a new OEM part or consider a refurbished replacement that matches factory specifications. Both options restore the vehicle’s electronic management, but a refurbished unit may offer cost savings while still delivering reliable performance.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2011 BMW X5M with a lifetime warranty, free shipping and no core charge. The full BMW X5M module lineup covers other engine configurations as well.
Final Thoughts
Addressing ECM or PCM issues in your 2011 BMW X5M helps maintain optimal engine response and emissions compliance. Evaluate repair versus refurbished options to keep your vehicle running smoothly.
