2011 Audi S5 Engine and Powertrain Control Module Service Guide
In the 2011 Audi S5, the engine control module (ECM) and powertrain control module (PCM) manage fuel delivery, ignition timing, and transmission coordination. Failure typically results in loss of engine power, erratic shifting, or complete no‑start conditions, as the modules can no longer communicate with the ABS and AWD controllers.
Quick Summary
- ECM/PCM relearn may be required after replacement.
- AWD control module resides in the spare‑wheel well, front of the battery.
- Factory procedure includes data‑bus signal verification between ECM, ABS and AWD.
- Flagship One units arrive VIN‑programmed, eliminating post‑install coding.
When a 2011 Audi S5 experiences intermittent power loss, rough shifting, or a complete inability to start, the engine and powertrain control modules are often the first suspects. These electronic brains coordinate fuel injection, spark timing, and transmission shifts, while also exchanging signals with the anti‑lock brake system and all‑wheel‑drive controller. Understanding how the modules operate, where they sit in the vehicle, and what factory steps are required after a replacement can help you diagnose the issue accurately and avoid unnecessary repairs. This guide walks you through the module’s purpose, its location, the labor involved, the programming requirements, and practical steps to keep the system healthy.
What the PCM Does in a 2011 Audi S5
The engine control module in a 2011 Audi S5 processes sensor data to regulate fuel injection, ignition timing, and emission controls, while the powertrain control module extends that oversight to include transmission shift logic and torque distribution. Both modules exchange information with the ABS control unit and the all‑wheel‑drive controller over the vehicle’s data bus, ensuring coordinated operation of propulsion and braking systems. When communication fails, the vehicle may exhibit stalling, loss of power, or diagnostic trouble codes. Proper function is essential for meeting performance expectations and emissions compliance. The modules are interchangeable with other Audi models, but specific software calibrations differ, making replacement engine control modules for 2011 Audi S5 a distinct part of the vehicle’s electronic architecture.
Where the PCM Is Located and What Replacement Involves
The all‑wheel‑drive control module identified as J492 is positioned inside the spare‑wheel well ahead of the battery in the 2011 Audi S5. Access typically requires removal of the spare tire and any covering panels to reach the module housing. Replacement involves disconnecting the electrical connector, extracting the unit, and installing the new module in the same orientation, followed by re‑torquing any mounting bolts to factory specifications if provided. The labor guide lists a 0.5‑hour estimate for an ECM relearn and a 1.0‑hour estimate for a full removal and replacement (R&R) of the engine control module, reflecting the time needed to gain access and secure the component.

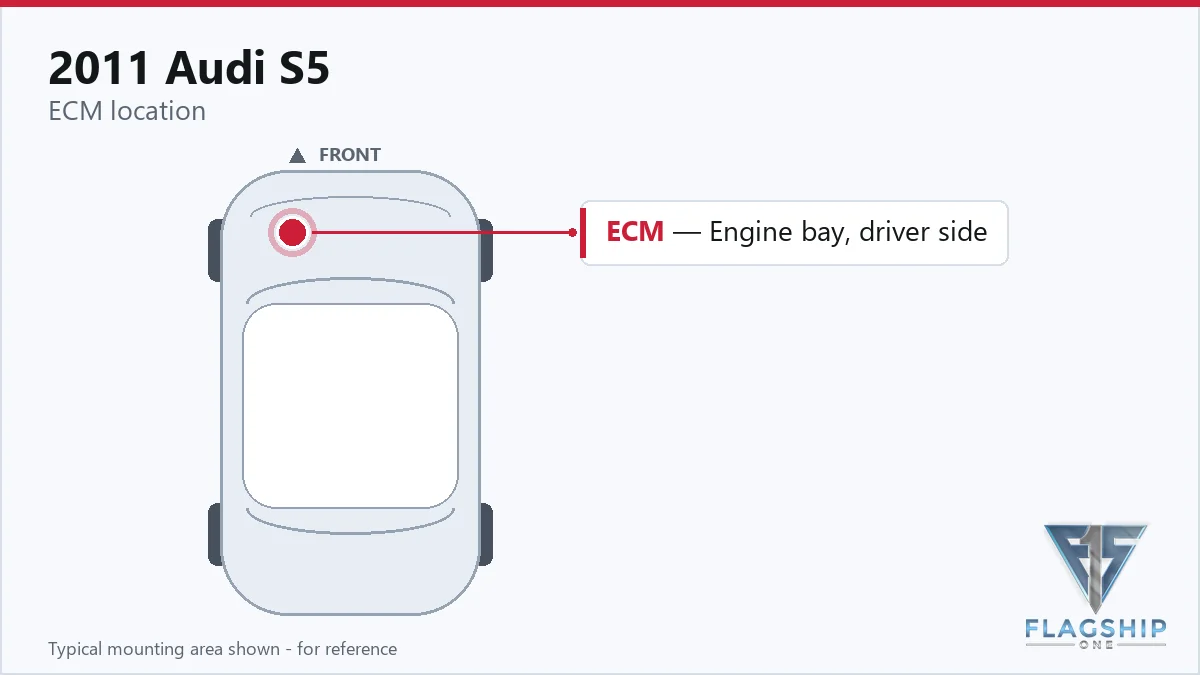

How to Reach the PCM on the 2011 Audi S5
- Turn off the ignition and remove the key.
- Remove the bolts.
- Remove the clips from the mount and remove the plenumchamber cover.
- Remove the nut and tilt the washer fluid filler neck upward-arrow A.
- Remove the bolts and the engine compartment E-boxcover.NoteIgnore.
- Remove shear bolts with locking pliers (see direction of ).
- Remove old ECM and install the ECM .InstallingInstall in reverse order of removal.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | A5 | 0.5 hr |
| Engine Control Module Relearn | A5 Quattro | 0.5 hr |
| Engine Control Module Relearn | S5 | 0.5 hr |
| Engine Control Module R&R | A5 | 1.0 hr |
| Engine Control Module R&R | A5 Quattro | 1.0 hr |
| Engine Control Module R&R | S5 | 1.0 hr |
| Powertrain Control Module R&R | A5 | 1.0 hr |
| Powertrain Control Module R&R | A5 Quattro | 1.0 hr |
Programming Requirements After Replacement
After installing a new ECM or PCM in the 2011 Audi S5, the factory procedure calls for a data‑bus verification and a module relearn to synchronize sensor inputs and communication with the ABS and AWD controllers. Flagship One supplies units that arrive a VIN-programmed replacement unit, meaning the necessary calibration data is already loaded, and the post‑install relearn steps are completed at the factory. This eliminates the need for on‑site coding and reduces the risk of mismatched software versions.
Symptoms of a Failing PCM
Typical signs of a failing engine or powertrain control module in a 2011 Audi S5 include a no‑start condition, erratic or harsh shifting, intermittent stalling, and the appearance of diagnostic trouble codes related to engine timing or transmission control. Drivers may also notice reduced power output, unusual engine noise, or the check‑engine light illuminating during acceleration. These symptoms arise because the module cannot correctly interpret sensor data or communicate with downstream controllers, leading to protective shutdowns or default limp‑mode operation.
Protecting the PCM in Your 2011 Audi S5
- Maintain a healthy charging system to avoid voltage spikes that can damage electronic modules.
- Inspect and clean ground connections and connector pins regularly.
- Use a proper jump‑start method to prevent over‑voltage exposure to the control units.
- Address any diagnostic trouble codes promptly before they lead to module failure.
- Ensure connector seals remain intact to protect against moisture intrusion.
- Avoid repeated hard braking that can stress the ABS and AWD communication lines.
Frequently Asked Questions
What are the typical labor times for replacing the ECM in a 2011 Audi S5?
The book time for an engine control module relearn is listed as 0.5 hours, while a full removal and replacement (R&R) is estimated at 1.0 hour.
Where is the AWD control module located on a 2011 Audi S5?
The AWD control module J492 is installed in the spare‑wheel well in front of the battery, requiring removal of the spare tire to access it.
Do I need to perform any programming after installing a new PCM in my Audi S5?
Factory procedure includes a data‑bus verification and module relearn, but a Flagship One unit arrives VIN‑programmed, so those steps are already completed.
Can a failing ECM cause transmission shift problems in the S5?
Yes, because the ECM and PCM share data with the transmission control system, a malfunction can lead to harsh or delayed shifts.
What signals travel between the ECM and the AWD module?
The ECM sends torque and speed information to the AWD module via the data bus, while the ABS module also transmits brake‑related signals to coordinate traction control.
When the engine or powertrain control module in a 2011 Audi S5 needs replacement, you can choose a brand‑new factory‑coded unit or a refurbished option that meets the same specifications. Both paths require proper removal, installation, and verification of data‑bus communication, but a Flagship One VIN‑programmed replacement simplifies the process by eliminating on‑site coding steps. Evaluate the condition of your existing hardware and consider the long‑term reliability benefits of a new unit versus the cost savings of a refurbished part.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2011 Audi S5 with a lifetime warranty, free shipping and no core charge. The full Audi S5 module lineup covers other engine configurations as well.
Final Thoughts
The 2011 Audi S5’s engine and powertrain control modules are critical to reliable performance. Whether you opt for a new or refurbished replacement, proper installation and verification ensure the vehicle returns to smooth operation. Contact a qualified technician to assess your specific situation.
