2010 Mazda Tribute PCM Replacements: Powertrain Control Module
In a 2010 Mazda Tribute, the Powertrain Control Module manages engine and transmission operations. Failure can cause MIL illumination, erratic engine behavior, or complete loss of powertrain control.
Quick Summary
- PCM replacement requires 0.5 hours of labor.
- ECM replacement also takes 0.5 hours.
- Relearn of the ECM adds 0.5 hours.
- PATS reprogramming is part of the process.
- Multiple MIL codes may indicate PCM or ECM issues.
If your 2010 Mazda Tribute keeps lighting its check engine light or stalling unexpectedly, a malfunctioning powertrain or engine control module might be to blame. Understanding what these modules do, how they’re accessed, and what to look for when they fail can save you time and money. This guide explains the roles of the PCM and ECM in your Tribute, the common symptoms of their failure, and the steps needed to replace or reprogram them using a VIN‑programmed unit from Flagship One.
What the PCM Does in a 2010 Mazda Tribute
The Powertrain Control Module in a 2010 Mazda Tribute coordinates fuel delivery, ignition timing, and transmission shifting. It processes data from various sensors to keep the engine running efficiently. replacement powertrain control module for the 2010 Mazda Tribute ensures that the vehicle can adapt to changing driving conditions. The Engine Control Module performs similar tasks for the engine, handling ignition and fuel maps. When either module fails, the vehicle may lose power, misfire, or show a MIL.
Where the PCM Is Located and What Replacement Involves
The PCM sits under the dashboard near the driver’s side. Access involves removing the lower dash panel, disconnecting the battery, and loosening the mounting bolts. A 0.5‑hour labor estimate covers removal, installation, and retorqueing. The ECM is located in the engine bay, behind the air intake. Replacing it also takes 0.5 hours, with the same procedure: disconnect battery, remove the unit, install the new one, and secure it.

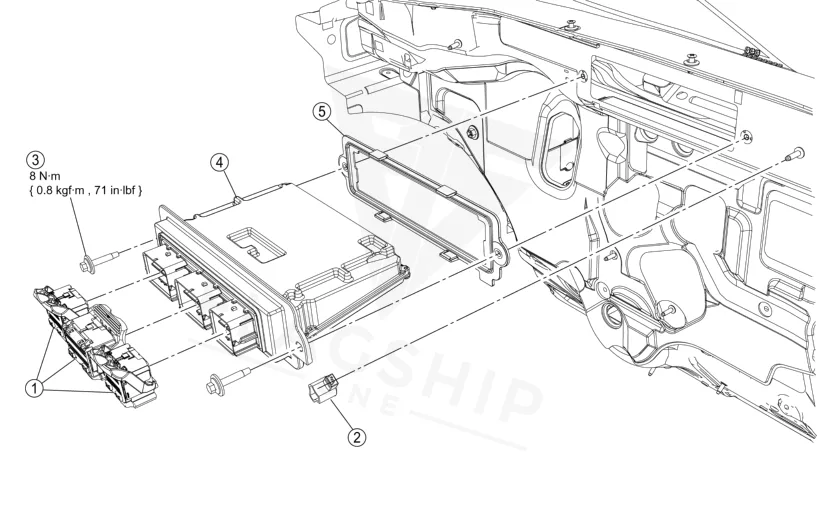

How to Reach the PCM on the 2010 Mazda Tribute
- Detach the wiring harness retainer from the cowl stud bolt.
- Disconnect the 3 PCM electrical connectors.
- Remove the 2 bolts and the PCM.
- Remove and inspect the PCM cowl seal.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new PCM or ECM, the vehicle’s passive anti‑theft system must be reprogrammed. Flagship One units arrive already VIN‑programmed, so that step is completed before delivery. The factory procedure would normally require a diagnostic scan to confirm the new module is active, but the pre‑programmed unit eliminates the need for post‑install tuning.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the PCM or ECM in a 2010 Mazda Tribute malfunctions, drivers may notice the MIL staying on, engine misfires, or a no‑start condition. The vehicle might also exhibit rough idle or hesitation during acceleration. If you see a code such as Powertrain Control Module Failure, it indicates the PCM’s internal diagnostics have flagged a fault.
Module Trouble Codes on the 2010 Mazda Tribute
The following table lists the internal trouble codes that the 2010 Mazda Tribute’s powertrain modules may generate.
| Code | Meaning | Full Guide |
|---|---|---|
| P0602 | Control module programming error | Full P0602 guide → |
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P0605 | Internal ROM error | Full P0605 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P0607 | Module performance fault | Full P0607 guide → |
| P060A | Module-internal fault | — |
| P060B | Module-internal fault | — |
| P060C | Module-internal fault | — |
| P060D | Module-internal fault | — |
| P0610 | Module-internal fault | Full P0610 guide → |
| P061B | Module-internal fault | — |
Factory Service Bulletins Worth Knowing
TSB 01 025/11 addresses MIL illumination with codes P1285, P1299, P0128, P0300, P0301, P0302, P0303, P0304, P0316. TSB 01 039/10 focuses on MIL with DTC P0128. TSB 01 015/12 covers MIL on with DTCs P144 A, P2196, P2198, and/or P1 A0 C.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | 01 039/10 2010 Tribute MIL With DTC P0128 | — |
| — | 01 015/12 2009 2011 Tribute / Tribute Hybrid MIL On With Dt Cs P144 A, P2196, P2198, And/Or P1 | — |
| — | 01 025/11 2010 2011 Tribute MIL On With Dt Cs P1285, P1299, P0128, P0300, P0301, P0302, P0303, | — |
Protecting the PCM in Your 2010 Mazda Tribute
- Check the charging system regularly to keep voltage stable.
- Inspect and clean all electrical connectors and grounds.
- Avoid jump‑starting the vehicle with a high‑voltage surge.
- Respond promptly to any diagnostic codes.
- Maintain the integrity of connector seals.
Frequently Asked Questions
What does a PCM replacement mean for my 2010 Mazda Tribute’s performance?
Replacing the PCM restores the engine and transmission control functions that the module manages. It can eliminate MIL illumination and improve fuel efficiency and drivability if the old PCM was malfunctioning.
Do I need a special tool to install the new ECM in my 2010 Mazda Tribute?
The standard diagnostic scan tool used for the vehicle is sufficient to connect and confirm the new ECM. No proprietary tool is required for the physical installation.
Will the new PCM need a relearn after installation?
Yes, a brief relearn procedure is part of the replacement process to calibrate the module to the specific engine and transmission settings of your Tribute.
If the PCM or ECM in your 2010 Mazda Tribute is causing persistent trouble, you can opt for a quick repair or consider a refurbished replacement unit. A refurbished PCM offers a reliable, cost‑effective solution that keeps your vehicle running smoothly.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 Mazda Tribute with a lifetime warranty, free shipping and no core charge. The full Mazda Tribute module lineup covers other engine configurations as well.
Final Thoughts
A 2010 Mazda Tribute with a faulty PCM or ECM can experience serious drivability issues. By addressing the module promptly and using a VIN‑programmed replacement, you restore reliable operation and protect your vehicle’s performance.
