2010 Mazda MazdaSpeed3 PCM/ECM Replacement Guide
The PCM/ECM in the 2010 MazdaSpeed3 is the main engine control computer. It manages fuel injection, ignition timing, turbo boost, and emissions. Failure can cause drivability issues, MIL illumination, and stored trouble codes. It is located in the engine bay and requires reprogramming after replacement.
Quick Summary
- Engine Control Module R&R book time is 0.6 hours.
- Powertrain Control Module Relearn takes 0.5 hours.
- If a later calibration is available, reprogram the PCM per factory guidance.
- Service bulletins address DTC P0507 and P2096 for this model.
- Module-internal trouble codes include P0600, P0601, and others.
If your 2010 Mazda MazdaSpeed3 is experiencing drivability issues, an illuminated check engine light, or trouble codes that point to the engine computer, you may be dealing with a failing PCM/ECM. This guide explains what the powertrain control module does in your turbocharged 2.3L vehicle, common failure symptoms, and what the replacement process involves. You will learn about the labor times for removal and installation, the factory-recommended reprogramming step, and how Flagship One’s VIN-programmed units simplify the job. The information here is based on documented service bulletins and module-internal trouble codes specific to the 2010 MazdaSpeed3.
What the PCM Does in a 2010 Mazda MazdaSpeed3
The powertrain control module (PCM) in your 2010 Mazda MazdaSpeed3 is the central computer that manages the engine and transmission. It controls fuel delivery, ignition timing, turbocharger boost pressure, and emissions systems. Because the MazdaSpeed3 uses a high-output 2.3L turbocharged engine, the PCM must precisely coordinate air-fuel ratios and boost levels to maintain performance and reliability. When the PCM fails, it can cause a range of problems from poor acceleration to no-start conditions. For this reason, sourcing replacement engine computers for the MazdaSpeed3 is a critical step in restoring proper function. The module also communicates with other control units via the CAN bus, so a fault can affect systems like the transmission and stability control.
Where the PCM Is Located and What Replacement Involves
The PCM/ECM on the 2010 Mazda MazdaSpeed3 is typically located in the engine bay, mounted near the battery or on the firewall. Replacement involves disconnecting the battery, removing any covers or brackets, unplugging the wiring harness connectors, and unbolting the module. The book time for Engine Control Module R&R is 0.6 hours, and for Powertrain Control Module R&R is also 0.6 hours. After installation, a relearn procedure is required, which adds 0.5 hours of labor. The reset procedure is estimated at 0.3 hours. These times reflect standard shop rates and may vary depending on access and technician experience.

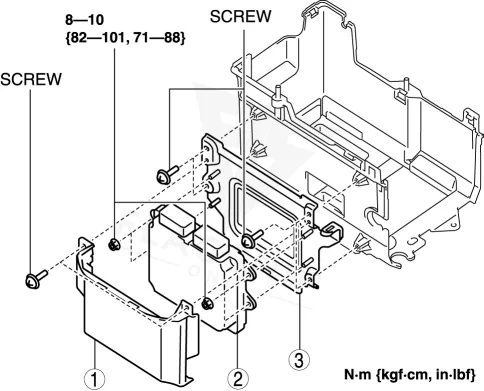

How to Reach the PCM on the 2010 Mazda MazdaSpeed3
- Remove the battery cover.
- Disconnect the negative battery cable.
- Remove the battery and battery tray.
- Remove the following items: (.
- Disconnect the PCM connector.
- Remove the battery tray and PCM component.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the PCM on your 2010 Mazda MazdaSpeed3, the factory procedure requires reprogramming if a later calibration is available. This step ensures the module has the latest software for proper operation. However, when you purchase a VIN-programmed replacement unit from Flagship One, the module arrives already programmed with your vehicle’s specific calibration. This eliminates the need for a separate reprogramming session, saving you the 0.5-hour relearn time and the cost of dealer-level software. The unit is ready to install and will communicate with your vehicle’s systems immediately.
Symptoms of a Failing PCM
Common symptoms of a failing PCM in the 2010 Mazda MazdaSpeed3 include intermittent no-start conditions, engine stalling, rough idle, and poor acceleration. You may also notice the check engine light illuminated with codes such as internal control module fault P0601. Other signs include loss of communication with a scan tool, erratic transmission shifting, and unresponsive turbo boost. These issues can be caused by internal module failures, voltage spikes, or corrosion in the connectors. If you experience any of these symptoms, it is important to diagnose the PCM before replacing other components.
Module Trouble Codes on the 2010 Mazda MazdaSpeed3
The following trouble codes are documented as module-internal for the 2010 Mazda MazdaSpeed3. These codes indicate faults within the PCM/ECM itself, such as memory errors, communication failures, or internal circuit malfunctions:
| Code | Meaning | Full Guide |
|---|---|---|
| P0600 | Module-internal fault | Full P0600 guide → |
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P060B | Module-internal fault | — |
| P060C | Module-internal fault | — |
| P0610 | Module-internal fault | Full P0610 guide → |
| P061B | Module-internal fault | — |
| P061D | Module-internal fault | — |
| P061F | Module-internal fault | — |
| P0638 | Module-internal fault | Full P0638 guide → |
Factory Service Bulletins Worth Knowing
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Mazda Tips: Module Replacement/Reprogramming Information | s SEE CHART BELOW INDICATING WHICH MODULES ARE PRESENT ON THE 2010 MAZDA3 AND IF THEY ARE REPROGRAMMABLE AND OR |
| — | 01 042/10 2010 Mazda3 (With M/T) MIL On With DTC P0507 | — |
| — | 01 007/12 2010 Mazda3 (2.0 L) And 2010 Mazda5 (2.3 L) MIL On With DTC P2096:00 | — |
Protecting the PCM in Your 2010 Mazda MazdaSpeed3
- Maintain a healthy charging system; voltage spikes from a failing alternator can damage the PCM.
- Keep all ground connections and wiring harness connectors clean and tight to prevent resistance and corrosion.
- Avoid jump-starting the vehicle with reversed polarity or using a high-voltage booster pack without surge protection.
- Address any check engine light or drivability codes promptly to prevent secondary damage to the module.
- Inspect the PCM connector seals and housing for moisture intrusion, especially after engine bay cleaning or heavy rain.
Frequently Asked Questions
What is the labor time for PCM replacement on a 2010 Mazda MazdaSpeed3?
The book time for Engine Control Module R&R is 0.6 hours, and for Powertrain Control Module R&R is also 0.6 hours. A relearn procedure adds 0.5 hours, and a reset takes 0.3 hours. These times are estimates and may vary.
Do I need to reprogram the PCM after replacing it on my 2010 MazdaSpeed3?
Yes, the factory procedure recommends reprogramming the PCM if a later calibration is available. However, Flagship One supplies VIN-programmed units that arrive with the correct calibration, so no additional reprogramming is needed.
What trouble codes indicate a PCM failure on a 2010 Mazda MazdaSpeed3?
Module-internal codes such as P0600, P0601, P0602, P0604, P0606, and others are documented for this vehicle. These codes typically point to internal faults within the PCM itself rather than external sensor or wiring issues.
For your 2010 Mazda MazdaSpeed3, you have two main options: repair the original PCM or replace it with a refurbished unit. Repair may be possible for some internal faults, but replacement with a VIN-programmed module from Flagship One ensures compatibility and eliminates the need for dealer reprogramming. This saves time and labor costs while restoring full engine management function.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 Mazda MazdaSpeed3 with a lifetime warranty, free shipping and no core charge. The full Mazda MazdaSpeed3 module lineup covers other engine configurations as well.
Final Thoughts
The 2010 Mazda MazdaSpeed3 PCM is a critical component for engine performance and reliability. Understanding its symptoms, replacement process, and programming requirements helps you make an informed decision. Flagship One offers ready-to-install, VIN-programmed units that simplify the job and get your MazdaSpeed3 back on the road quickly.
