2010 Mazda CX-9 PCM and ECM Replacement Guide
The Powertrain Control Module (PCM) in your 2010 Mazda CX-9 3.7L is the main computer that manages engine and transmission functions. It controls fuel delivery, ignition timing, shift points, and emissions. When it fails, the vehicle may not start, run poorly, or set trouble code P0601.
Quick Summary
- The PCM in the 2010 Mazda CX-9 3.7L controls both engine and transmission operations.
- Failure often results in no-start, stalling, or a check-engine light with code P0601.
- Replacement labor is 0.9 hours for R&R plus 0.5 hours for relearn, per the book.
- Factory programming may be needed if a later calibration is available for your vehicle.
- A pre-programmed PCM from Flagship One arrives ready to install, skipping the relearn step.
If your 2010 Mazda CX-9 with the 3.7L engine is experiencing hard starting, erratic shifting, or a persistent check-engine light, the Powertrain Control Module (PCM) may be at fault. This computer is the brain of your vehicle’s drivetrain, managing everything from air-fuel mixture to transmission shift schedules. When it fails, the symptoms can mimic other problems like a bad sensor or a failing battery, making diagnosis tricky. In this article, you will learn exactly what the PCM does in your CX-9, where it is located, what the factory labor times are for replacement, and what programming steps are required after installation. We also cover common failure symptoms, the specific trouble code P0601 that points to internal module failure, and practical tips to protect the module from future damage. Whether you are a DIY owner or a professional technician, this guide provides the essential facts you need to make an informed repair decision for your 2010 Mazda CX-9.
What the PCM Does in a 2010 Mazda CX-9
The Powertrain Control Module (PCM) in your 2010 Mazda CX-9 3.7L is a single integrated computer that controls both the engine and the automatic transmission. It receives input from sensors like the crankshaft position sensor, throttle position sensor, and oxygen sensors, then adjusts fuel injector pulse width, ignition timing, and transmission shift solenoids in real time. This module also manages idle speed, cruise control, and emissions system functions. Because the PCM handles such a wide range of critical tasks, a failure can cause the vehicle to become undrivable. The PCM communicates with other modules on the CAN bus network, so a dead PCM can also prevent scan tools from communicating with the rest of the vehicle. When you need to replace this component, you are looking for replacement PCMs for the CX-9 that are specifically calibrated for the 3.7L engine and the VIN of your vehicle. Using the wrong calibration can lead to poor performance, transmission issues, or even a no-start condition. The PCM is a sealed unit that is not serviceable internally; if it fails, replacement is the only option. Understanding what this module does helps you recognize why symptoms like a no-start or a P0601 code point directly to the computer itself rather than a peripheral sensor.
Where the PCM Is Located and What Replacement Involves
In the 2010 Mazda CX-9 3.7L, the PCM is typically mounted in the engine compartment, often on the driver side near the battery or on the firewall. Access may require removing the battery and battery tray to reach the module. The factory book time for Powertrain Control Module removal and replacement is 0.9 hours. After installation, a Powertrain Control Module Relearn procedure is required, which adds 0.5 hours of labor. The relearn process involves using a scan tool to reset adaptive memory and perform a throttle position relearn. Note that the labor times for Engine Control Module R&R and Relearn are identical at 0.9 and 0.5 hours respectively, as the PCM and ECM are the same component in this vehicle. When replacing the module, ensure the ignition is off and the battery is disconnected to avoid short circuits. Carefully unplug the wiring harness connectors, noting their orientation, and transfer any mounting brackets if needed. The new module should be secured with the original fasteners and torqued to factory specifications (not provided here).

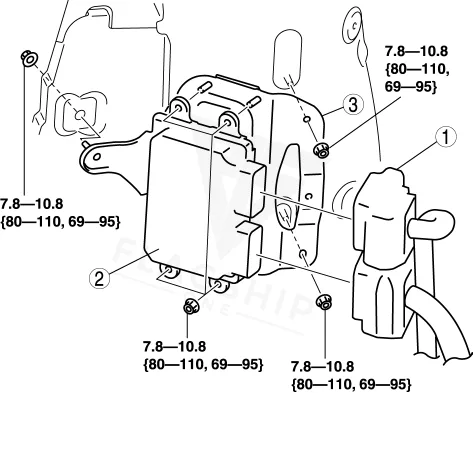

How to Reach the PCM on the 2010 Mazda CX-9
- Disconnect the negative battery cable.
- Remove the battery.
- Remove the battery tray.
- Remove the mudguard (LH).
- Remove the PCM bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new or used PCM in your 2010 Mazda CX-9 3.7L, the factory procedure requires that the module be programmed with the correct vehicle calibration. According to the available information, if the vehicle is not repaired or additional diagnostic information is not available, you should reprogram the PCM if a later calibration is available. This typically involves using a factory-level scan tool to flash the latest software and then performing a relearn procedure. However, when you purchase a VIN-programmed replacement unit from Flagship One, the module arrives already programmed with the correct calibration for your specific vehicle. This means the 0.5-hour relearn step is already completed, and you can install the module and start the engine without needing a dealer visit or specialized equipment. The programming step is critical because an incorrect or outdated calibration can cause drivability issues, transmission shift problems, or even prevent the engine from starting. By choosing a pre-programmed unit, you eliminate the risk of a failed flash and save both time and labor costs.
Symptoms of a Failing PCM
When the PCM in your 2010 Mazda CX-9 3.7L begins to fail, you may notice a variety of symptoms that can be frustrating to diagnose. The most common sign is a no-start condition where the engine cranks but does not fire, because the PCM is not sending fuel injector or ignition commands. You might also experience intermittent stalling, rough idle, or hesitation during acceleration. The transmission may shift erratically or refuse to shift at all, since the PCM controls shift solenoids. Another frequent symptom is a check-engine light that stays on, often accompanied by a trouble code such as internal control module error. This code specifically indicates that the PCM has detected an internal fault, such as a corrupted memory or a processor failure. You may also find that a scan tool cannot communicate with the PCM, which is a strong indicator that the module has failed completely. Other possible symptoms include poor fuel economy, surging at highway speeds, or the vehicle entering a limp-home mode with reduced power. Because these symptoms overlap with other issues like a bad crankshaft sensor or a failing battery, it is important to verify the PCM condition before replacing parts.
Module Trouble Codes on the 2010 Mazda CX-9
The following trouble code is documented for the 2010 Mazda CX-9 3.7L and is stored internally within the PCM. This code indicates a failure inside the module itself rather than a sensor or actuator problem.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
Protecting the PCM in Your 2010 Mazda CX-9
- Maintain a healthy charging system; a failing alternator can send voltage spikes that damage the PCM.
- Keep battery terminals and ground connections clean and tight to ensure stable voltage to the module.
- Avoid jump-starting the vehicle with a running donor car; connect cables only with both engines off to prevent surges.
- Address any check-engine light or trouble code promptly; ignoring a minor issue can lead to PCM failure.
- Inspect the PCM wiring harness connectors for corrosion or bent pins, especially if the vehicle has been exposed to moisture.
- Ensure the PCM mounting location is free of water intrusion; check the cowl drains and battery tray area for leaks.
Frequently Asked Questions
What does the PCM do in a 2010 Mazda CX-9 3.7L?
The PCM controls both the engine and transmission in your CX-9. It manages fuel injection, ignition timing, idle speed, and shift schedules. It also monitors emissions systems and communicates with other modules on the CAN bus.
How do I know if the PCM is bad on my 2010 Mazda CX-9?
Common signs include a no-start condition, stalling, rough running, or a check-engine light with code P0601. You may also notice transmission shifting problems or a scan tool that cannot communicate with the PCM.
Can I replace the PCM in my 2010 Mazda CX-9 myself?
Yes, if you have basic mechanical skills. The PCM is typically located in the engine compartment. The book labor time for removal and replacement is 0.9 hours. However, you will need to have the new module programmed with the correct calibration for your vehicle.
What is the labor time for PCM replacement on a 2010 Mazda CX-9?
According to standard labor guides, the Powertrain Control Module R&R takes 0.9 hours. An additional 0.5 hours is required for the PCM Relearn procedure after installation.
Do I need to program a new PCM for my 2010 Mazda CX-9?
Yes, a new or used PCM must be programmed with the correct calibration for your vehicle. If a later calibration is available, reprogramming is recommended. A pre-programmed unit from Flagship One arrives ready to install, eliminating the need for dealer programming.
When your 2010 Mazda CX-9 3.7L needs a new PCM, you have two main options: have a dealer or shop install a blank unit and program it, or purchase a refurbished, pre-programmed module that is ready to install. The latter saves you the 0.5-hour relearn labor and ensures the correct calibration is already loaded. For a vehicle of this age, a quality refurbished unit can be a cost-effective solution that restores reliable operation.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 Mazda CX-9 with a lifetime warranty, free shipping and no core charge. The full Mazda CX-9 module lineup covers other engine configurations as well.
Final Thoughts
The PCM in your 2010 Mazda CX-9 3.7L is a critical component that controls engine and transmission performance. Recognizing symptoms like a no-start or code P0601 can help you diagnose a failing module. Replacement involves 0.9 hours of labor plus a 0.5-hour relearn, but a pre-programmed unit from Flagship One simplifies the process. Keep your CX-9 running smoothly with the right replacement part.
