2010 Jeep Patriot PCM Replacement Guide
In the 2010 Jeep Patriot, the Powertrain Control Module (PCM) coordinates engine and transmission functions. A failure typically disrupts fuel delivery, ignition timing, and shift logic, leading to drivability loss and stored diagnostic codes such as P0601 or P0606.
Quick Summary
- PCM removal and installation each require about half an hour of labor.
- Factory procedure locates the module beside the air cleaner assembly.
- Reprogramming the new PCM with the VIN and original mileage is mandatory.
- Flagship One units arrive pre‑programmed, eliminating the reprogram step.
- Common fault codes include P0601 and P0606, indicating internal PCM errors.
When a 2010 Jeep Patriot exhibits sudden loss of power, erratic shifting, or a complete no‑start condition, the Powertrain Control Module often becomes a suspect. This guide walks you through what the PCM does in this specific model, where it resides, how long a professional shop typically spends on removal and installation, and what programming steps are required after a replacement. By the end, you will understand the diagnostic clues, the factory‑approved service flow, and why a VIN‑programmed replacement from Flagship One can streamline the repair, saving you time and reducing the chance of rework.
What the PCM Does in a 2010 Jeep Patriot
The Powertrain Control Module in the 2010 Jeep Patriot acts as the central computer that monitors sensor inputs and commands both the engine and transmission. It processes data from the throttle position, crankshaft speed, and many other sensors to determine fuel injection timing, spark advance, and shift points. Because it integrates engine and drivetrain control, any internal fault can cause the vehicle to stall, refuse to start, or shift harshly. Proper operation ensures emissions compliance and optimal performance. For owners needing a replacement, the factory recommends using replacement powertrain control modules for the 2010 Jeep Patriot that meet original specifications.
Where the PCM Is Located and What Replacement Involves

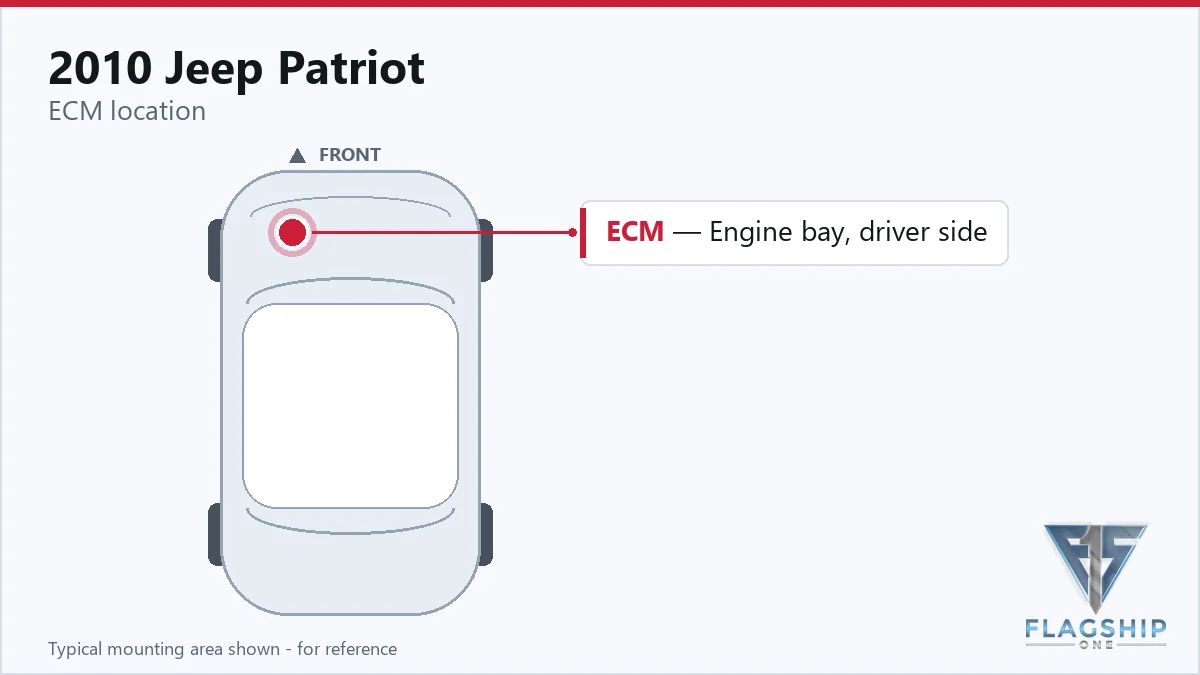

The PCM is mounted next to the air cleaner assembly, allowing technicians to reach it without removing major engine components. Removal and installation each are listed in the labor guide as 0.5 hours for the Patriot, reflecting the relatively straightforward access. The procedure involves disconnecting the electrical connector, unbolting the module, and extracting it from its bracket. Installation reverses these steps, securing the new unit in the same location. Because the module sits close to the intake system, care should be taken to avoid contaminating the connector with debris during the swap.
How to Reach the PCM on the 2010 Jeep Patriot
- Disconnect negative battery cable.
- Unlock and disconnect the electrical connectors from PCM.
- Remove the air cleaner box.
- Remove the three mounting bolts.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Compass | 0.5 hr |
| Powertrain Control Module R&R | Patriot | 0.5 hr |
| Engine Control Module Relearn | Compass | 0.5 hr |
| Engine Control Module Relearn | Patriot | 0.5 hr |
| Engine Control Module R&R | Compass | 0.5 hr |
| Engine Control Module R&R | Patriot | 0.5 hr |
Programming Requirements After Replacement
After the PCM is installed, the factory service flow requires a scan tool to program the new unit with the vehicle’s original identification number and the mileage at the time of replacement. Flagship One supplies a a VIN‑programmed replacement unit that arrives already loaded with that data, so the reprogramming step can be skipped in most cases. If a shop follows the official procedure, they will still verify the VIN match and confirm successful communication before clearing the codes.
Symptoms of a Failing PCM
Typical signs of a failing PCM in a 2010 Jeep Patriot include a complete lack of engine cranking, irregular idle, unexpected stalling, and transmission shift delays. Drivers may also notice the check engine light flashing and retrieve diagnostic trouble codes such as internal PCM communication error, which points directly to a module malfunction. In some cases, the scan tool may lose communication with the vehicle entirely, indicating that the PCM is not responding to inputs.
Module Trouble Codes on the 2010 Jeep Patriot
The following diagnostic trouble codes are commonly stored when the PCM experiences internal failures in this model:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Service bulletin Rc‑In01‑13 addresses a safety recall that requires reprogramming the Occupant Restraint Control Module, which may be related to PCM communication pathways.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Rc-In01-13 Safety Recall N01 – Reprogram Occupant Restraint Control Module | — |
Protecting the PCM in Your 2010 Jeep Patriot
- Maintain a healthy charging system to avoid voltage drops that stress the PCM.
- Inspect and clean ground straps and connector pins regularly.
- Avoid jump‑starting the vehicle with excessive voltage spikes.
- Promptly address any stored fault codes before they proliferate.
- Ensure connector seals remain intact to keep moisture out.
- Use quality aftermarket accessories that do not overload the PCM.
Frequently Asked Questions
Can a 2010 Jeep Patriot run with a faulty PCM?
The vehicle may limp or refuse to start if the PCM cannot process sensor data. In many cases, the engine control will default to a safe mode, but drivability will be severely limited.
Do I need special tools to replace the PCM on a 2010 Jeep Patriot?
Standard hand tools are sufficient for removal and installation. A scan tool is required only for the post‑install programming step, unless a pre‑programmed unit is used.
How long should a PCM replacement take on a 2010 Jeep Patriot?
The labor guide lists half an hour for removal and another half hour for installation, not including any additional time for programming verification.
Will a reprogrammed PCM fix a P0606 code in my 2010 Jeep Patriot?
P0606 indicates internal PCM communication problems. If the code results from corrupt software, reprogramming may resolve it; otherwise, the module itself may need replacement.
Is the factory‑programmed mileage required after PCM replacement?
Yes, the original mileage must be entered during the programming step to keep the vehicle’s service history accurate and to maintain compliance with emissions regulations.
When the PCM in your 2010 Jeep Patriot needs attention, you can choose a brand‑new factory‑coded unit or a refurbished replacement that meets original specifications. Both options restore the vehicle’s engine and transmission coordination, but a pre‑programmed replacement from Flagship One can eliminate the final reprogramming step, reducing shop time and potential errors.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 Jeep Patriot with a lifetime warranty, free shipping and no core charge. The full Jeep Patriot module lineup covers other engine configurations as well.
Final Thoughts
The Powertrain Control Module is essential to the reliable operation of your 2010 Jeep Patriot. Whether you opt for a new or refurbished unit, ensuring proper installation and programming will keep your vehicle running smoothly. Consider a VIN‑programmed replacement to simplify the process and get back on the road faster.
