2010 Hyundai Elantra Touring PCM and ECM Replacement Guide
In the 2010 Hyundai Elantra Touring, the powertrain control module (PCM) and engine control module (ECM) manage fuel delivery, ignition timing, and emission controls. Failure of either unit can cause loss of power, erratic idle, or complete engine shutdown, requiring removal and reprogramming to restore normal operation.
Quick Summary
- PCM/ECM removal typically takes about half an hour per module.
- Factory bolts for the ECM should be torqued between 9.8 and 11.8 N·m.
- VIN programming is required after any ECM swap.
- A P0605 code often points to internal module faults.
When a 2010 Hyundai Elantra Touring experiences erratic performance or a loss of power, the underlying cause may be a failing powertrain or engine control module. This guide explains how the modules function, where they reside, and what steps are needed to replace them correctly. By following the outlined procedures, you can understand the repair process, anticipate labor time, and ensure the vehicle returns to reliable operation.
What the PCM Does in a 2010 Hyundai Elantra Touring
The PCM and ECM in a 2010 Hyundai Elantra Touring act as the vehicle’s central computers, constantly monitoring sensor data to adjust fuel injection, ignition timing, and emissions controls. Their role is critical because any miscommunication can lead to drivability issues, emissions failures, or engine shutdown. Understanding how these controllers interact with the engine helps diagnose problems quickly. The 2010 Hyundai Elantra Touring replacement ECM is essential for maintaining proper engine management and meeting regulatory standards.

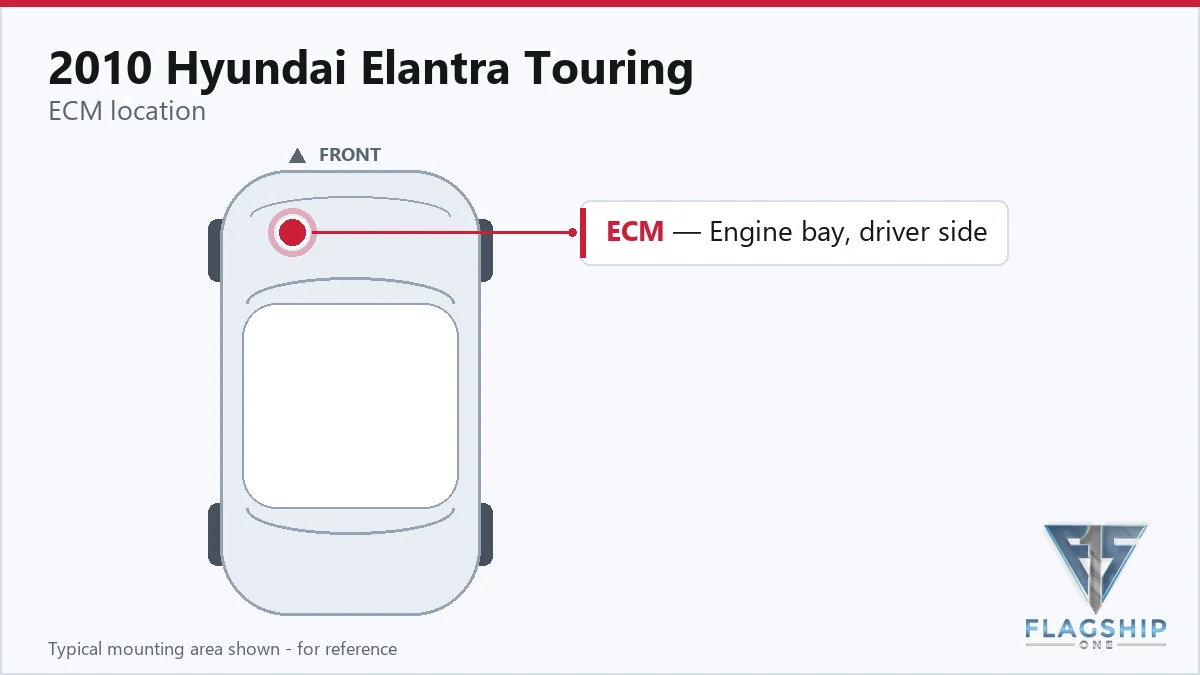

Where the PCM Is Located and What Replacement Involves
The factory removal guide indicates that the control module sits adjacent to the air cleaner assembly, making it accessible once the intake components are removed. Replacing the PCM or ECM is cataloged at 0.5 hours of labor each, according to the service book. During installation, the ECM mounting bolts must be tightened to a torque range of 9.8 to 11.8 N·m to ensure secure fastening without over‑stress. After positioning the new unit, reconnect the harnesses and verify that all fasteners are properly torqued.
How to Reach the PCM on the 2010 Hyundai Elantra Touring
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Disconnect the ECM connector.
- Remove the air cleaner & ECM assembly.
- Remove the ECM mounting bolts and then remove the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new ECM in the 2010 Hyundai Elantra Touring, the factory procedure requires programming the vehicle identification number into the module to enable communication with other control systems. Flagship One supplies a a VIN-programmed replacement unit so that this step is already completed, eliminating the need for separate VIN entry and reducing installation time.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in the 2010 Hyundai Elantra Touring include a no‑start condition, intermittent stalling, rough idle, and loss of power during acceleration. Diagnostic scans often reveal internal fault codes, and the presence of engine control module internal fault suggests a problem within the module itself. In some cases, the vehicle may exhibit poor fuel economy or trigger emission warnings, indicating that the computer is not managing engine parameters correctly.
Module Trouble Codes on the 2010 Hyundai Elantra Touring
The following internal trouble codes are documented for the 2010 Hyundai Elantra Touring’s control modules:
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Factory Service Bulletins Worth Knowing
Service bulletin #09-01-031 covers a TCM calibration update as part of campaign T95, while bulletin #04-36-019 addresses VIN writing procedures for ECM and PCM replacements on models similar to the 2005‑year range, both relevant to proper module reprogramming.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-01-031 | CAMPAIGN • Campaign Bulletins • [09-01-031] TCM CALIBRATION UPDATE (SERVICE CAMPAIGN T95) | — |
| 04-36-019 | TSB • Fuel System • [04-36-019] 2005MY ECM AND PCM VIN WRITING DURING CONTROL MODULE REPLACEMEN | — |
Protecting the PCM in Your 2010 Hyundai Elantra Touring
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean ground connections and electrical connectors regularly.
- Avoid jump‑starting or exposing the vehicle to sudden voltage spikes.
- Promptly address any stored diagnostic codes before they worsen.
- Keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
What labor time is typical for replacing the PCM in a 2010 Hyundai Elantra Touring?
The service book lists about half an hour of labor for removing and installing the powertrain control module on this model.
Do I need special tools to torque the ECM bolts on a 2010 Hyundai Elantra Touring?
A torque wrench set to the range of 9.8 to 11.8 N·m is required to secure the ECM mounting bolts to the factory specification.
Is VIN programming necessary after installing a new ECM in my 2010 Hyundai Elantra Touring?
Yes, the factory procedure calls for programming the vehicle identification number into the ECM, which Flagship One units already include.
When the PCM or ECM in your 2010 Hyundai Elantra Touring needs attention, you can choose a factory‑refurbished unit or a new replacement. Both options restore the vehicle’s engine management functions, but a Flagship One replacement arrives pre‑programmed with the correct VIN, simplifying the post‑install steps and helping you get back on the road faster.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 Hyundai Elantra Touring with a lifetime warranty, free shipping and no core charge. The full Hyundai Elantra Touring module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM or ECM in a 2010 Hyundai Elantra Touring can resolve many drivability issues. Consider a Flagship One unit to streamline the process, and ensure the vehicle returns to reliable performance.
