2010 Audi S4 PCM | Engine Computer Replacement Guide
The Engine Control Module (ECM) on your 2010 Audi S4 is the central computer managing fuel injection, ignition timing, emissions controls and sensor inputs. When it fails, the engine may not start, run poorly or trigger diagnostic trouble codes.
Quick Summary
- Factory book time for ECM replacement is 1.4 hours on the 2010 Audi S4
- Powertrain control module relearn procedure requires 0.5 hours after installation
- AWD control module J492 receives signals from both ECM and ABS control module via data bus
- TCM may store code P0727 indicating sporadic no speed signal from engine control unit
If your 2010 Audi S4 (3.0L) is experiencing hard starting, stalling, rough idle or illumination of the check engine light, the Engine Control Module may be the culprit. The ECM serves as the brain of your vehicle’s powertrain, processing input from dozens of sensors and coordinating fuel delivery, ignition timing and emissions systems. This guide explains what the engine computer does in your specific vehicle, where it is located, the factory replacement and programming procedure, common failure symptoms, and how Flagship One’s VIN-programmed replacement units simplify the repair process.
What the PCM Does in a 2010 Audi S4
The Engine Control Module in your 2010 Audi S4 acts as the central processor for all powertrain operations. It receives signals from the crankshaft position sensor, camshaft position sensors, mass airflow sensor, throttle position sensor and numerous other inputs, then calculates optimal fuel injector pulse width and ignition timing for each driving condition. The module also monitors emissions equipment and communicates with other control units on the vehicle’s data bus, including the ABS control module and the All Wheel Drive control module. If the ECM fails internally or loses proper communication, your S4 may not run at all or may exhibit intermittent drivability issues that resist conventional repair attempts. Replacement engine computers for the 2010 Audi S4 are available pre-programmed with your specific VIN and vehicle calibration, eliminating the need for dealer-only programming steps.
Flagship One keeps Audi S4 replacement engine computers in stock for exactly this failure pattern.

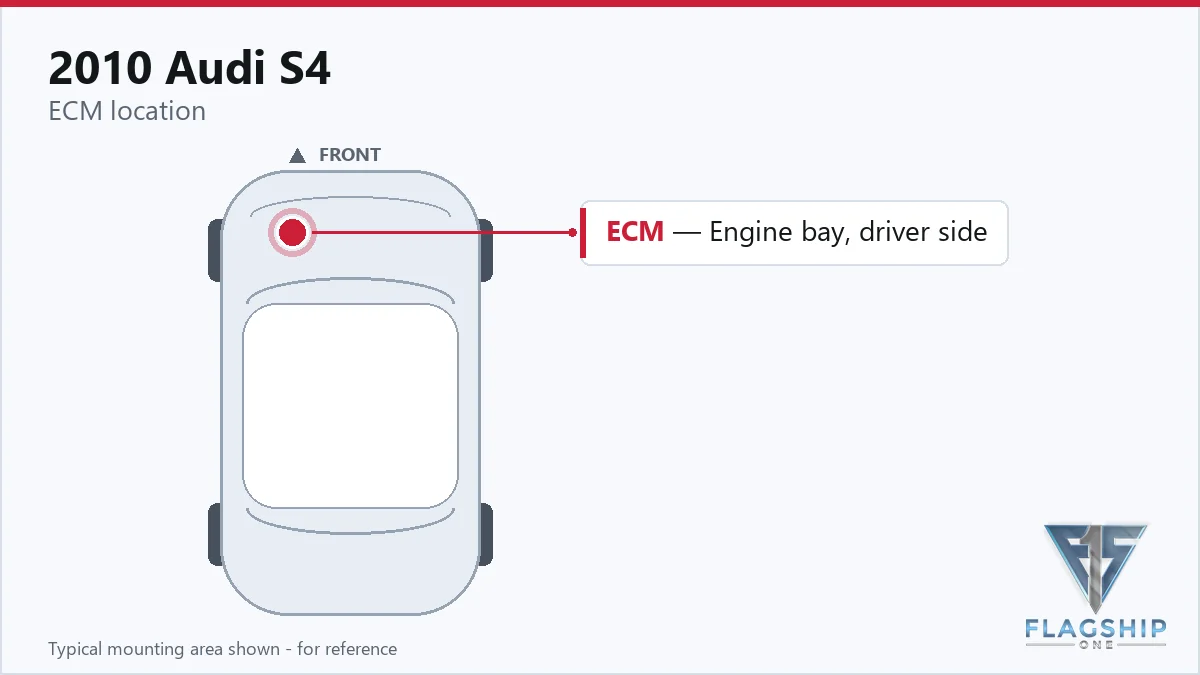

Where the PCM Is Located and What Replacement Involves
The Engine Control Module on your 2010 Audi S4 is typically located in the engine compartment, though exact positioning varies by production run. Accessing the module requires removing surrounding components to reach the unit. The factory labor time for ECM replacement (removal and reinstall) is 1.4 hours according to published book times. After the new module is installed, a powertrain control module relearn procedure must be performed, which adds 0.5 hours of labor. This relearn procedure allows the new ECM to initialize and establish communication with the transmission control module, ABS unit and other data bus participants. If your vehicle is equipped with the All Wheel Drive system, note that the AWD control module receives signals from both the engine control module and the ABS control module via the data bus—improper initialization after ECM replacement may affect AWD function.
How to Reach the PCM on the 2010 Audi S4
- Turn the ignition and remove the ignition key.
- Pull the plenum chamber cover rubber seal in front of the nut slightly.
- Remove nut.
- Remove the filler neck with the filler tube from the washerfluid reservoir and the opening in the body.
- Remove the bolts and the cover from the E-box.
- Remove shear bolts with locking pliers (see direction of ).
- Disconnect metal retainers from the ECM connectors.
- Remove old ECM and install the new ECM.InstallingInstall in reverse order of removal.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | A4 | 0.5 hr |
| Powertrain Control Module Relearn | A4 Quattro | 0.5 hr |
| Powertrain Control Module Relearn | S4 | 0.5 hr |
| Engine Control Module Relearn | A4 | 0.5 hr |
| Engine Control Module Relearn | A4 Quattro | 0.5 hr |
| Engine Control Module Relearn | S4 | 0.5 hr |
| Engine Control Module R&R | A4 | 1.4 hr |
| Engine Control Module R&R | A4 Quattro | 1.4 hr |
Programming Requirements After Replacement
After replacing the Engine Control Module on your 2010 Audi S4, the factory procedure requires performing a powertrain control module relearn. This initialization step synchronizes the new ECM with your vehicle’s specific drivetrain calibration and verifies that data bus communication is functioning properly. The relearn procedure typically takes 0.5 hours of labor. Flagship One addresses this requirement by shipping their replacement units already VIN-programmed with your specific vehicle identification number and the correct calibration data for the 3.0L engine, meaning many of the post-installation steps are completed before the module ever arrives. You still need to have a qualified technician complete the final verification and clear any stored trouble codes, but the heavy lifting of programming is handled.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the Engine Control Module fails on a 2010 Audi S4, several telltale signs typically emerge. The most common include a no-start condition where the engine cranks but will not run, intermittent stalling especially at idle or low speeds, and rough running that manifests as misfiring or hesitation under acceleration. Diagnostic scan tools may show no communication with the ECM or may display multiple sensor-related trouble codes that appear and disappear randomly. In some cases, the transmission may exhibit harsh shifting or the vehicle may enter a limp-home mode. The TCM storing P0727 (no speed signal from engine control unit, sporadic) is a known issue that can stem from ECM communication problems. If your S4 displays any of these symptoms and conventional repairs have not resolved the issue, the ECM is a strong candidate for replacement.
Factory Service Bulletins Worth Knowing
Factory service bulletin information for the 2010 Audi S4 addresses a known issue where the Transmission Control Module stores diagnostic trouble code P0727, indicating no speed signal from the engine control unit occurring sporadically. This bulletin highlights the importance of proper communication between the ECM and TCM via the vehicle data bus. While the bulletin specifically references the TCM, the underlying cause can often be traced to ECM output issues or data bus integrity problems. Technicians addressing P0727 codes should verify ECM communication status and data bus health before concluding the TCM is at fault.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | 37 TCM stores P0727 (no speed signal from engine control unit, sporadic) | — |
Protecting the PCM in Your 2010 Audi S4
- Maintain your vehicle’s charging system—alternator failures and low voltage can stress the ECM
- Keep electrical connectors clean and dry; corrosion at ECM grounds causes communication issues
- Avoid jump-starting other vehicles from your S4; voltage spikes can damage module circuits
- Address check engine light codes promptly—prolonged operation with sensor failures can cascade to ECM damage
- Inspect and replace damaged engine harness wiring; chafed insulation exposes circuits to shorts
- Ensure battery terminals are tight and free of corrosion to maintain stable voltage supply
Frequently Asked Questions
Will a used ECM from a salvage yard work on my 2010 Audi S4?
A used ECM requires dealer programming to match your vehicle’s VIN and calibration data. Without proper programming, the module will not communicate with your vehicle’s data bus, and the engine may not start. This process typically requires a trip to the dealer and additional labor costs.
Can I replace the Engine Control Module myself on my 2010 Audi S4?
Technically skilled DIY mechanics can perform the physical replacement, but you will need access to appropriate diagnostic software to complete the powertrain control module relearn procedure. Without this step, the new ECM may not initialize properly and drivability issues may persist.
What’s the difference between an ECM and a PCM on the 2010 Audi S4?
On this vehicle, the Engine Control Module manages engine functions while a separate Transmission Control Module handles shifting. Some references use PCM (Powertrain Control Module) as an umbrella term covering both units. For the 3.0L S4, the ECM is the primary replacement component for engine-related issues.
When your 2010 Audi S4’s Engine Control Module fails, you have two primary repair paths. The first is a new or refurbished unit from the dealer, which arrives blank and requires dealer programming—an expensive option that can involve significant wait times. The second path is a VIN-programmed replacement from Flagship One, shipped ready to install with your specific vehicle calibration already loaded. This approach reduces labor time and eliminates dealer programming fees, getting your S4 back on the road faster and more economically.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 Audi S4 with a lifetime warranty, free shipping and no core charge. The full Audi S4 module lineup covers other engine configurations as well.
Final Thoughts
The Engine Control Module is the heart of your 2010 Audi S4’s powertrain management system. When this component fails, the consequences range from inconvenient drivability issues to a vehicle that will not start at all. Understanding the module’s role, knowing the location, and recognizing the symptoms helps you make informed repair decisions. Whether you choose dealer replacement or a VIN-programmed unit from Flagship One, addressing ECM failure promptly protects your investment and restores the driving experience your S4 was designed to deliver.
