2009 Toyota Corolla Engine and Powertrain Control Module Relearn Guide
In the 2009 Toyota Corolla, the engine control module and powertrain control module manage fuel delivery, ignition timing, and transmission shifting. A failure in either unit can lead to loss of engine power, stalling, or the inability to communicate with diagnostic tools, often triggering the P0601 code.
Quick Summary
- ECM relearn takes about 0.6 hours of labor.
- PCM replacement requires roughly 0.7 hours of work.
- Factory service bulletin #T-SB-0064-10 covers ECU flash reprogramming.
- The ECM resides in the engine compartment for easy access.
When a 2009 Toyota Corolla begins to exhibit starting problems or erratic power delivery, the underlying cause is frequently linked to the engine or powertrain control modules. Understanding how these computers operate and what the factory requires after a replacement helps you avoid unnecessary downtime. This guide explains where the modules live, the labor involved, and how Flagship One products simplify the post‑install process, giving you confidence in the repair outcome.
What the PCM Does in a 2009 Toyota Corolla
The engine control module in a 2009 Toyota Corolla processes sensor data to regulate fuel injection, ignition timing, and emissions control, while the powertrain control module coordinates transmission shift logic. Together they ensure smooth acceleration and fuel efficiency, making them critical for reliable operation. A malfunction can disrupt engine start‑up, cause rough idle, or prevent the transmission from shifting correctly, which is why proper diagnosis and replacement are essential. The vehicle often relies on replacement engine module for Corolla to restore full functionality.
Where the PCM Is Located and What Replacement Involves

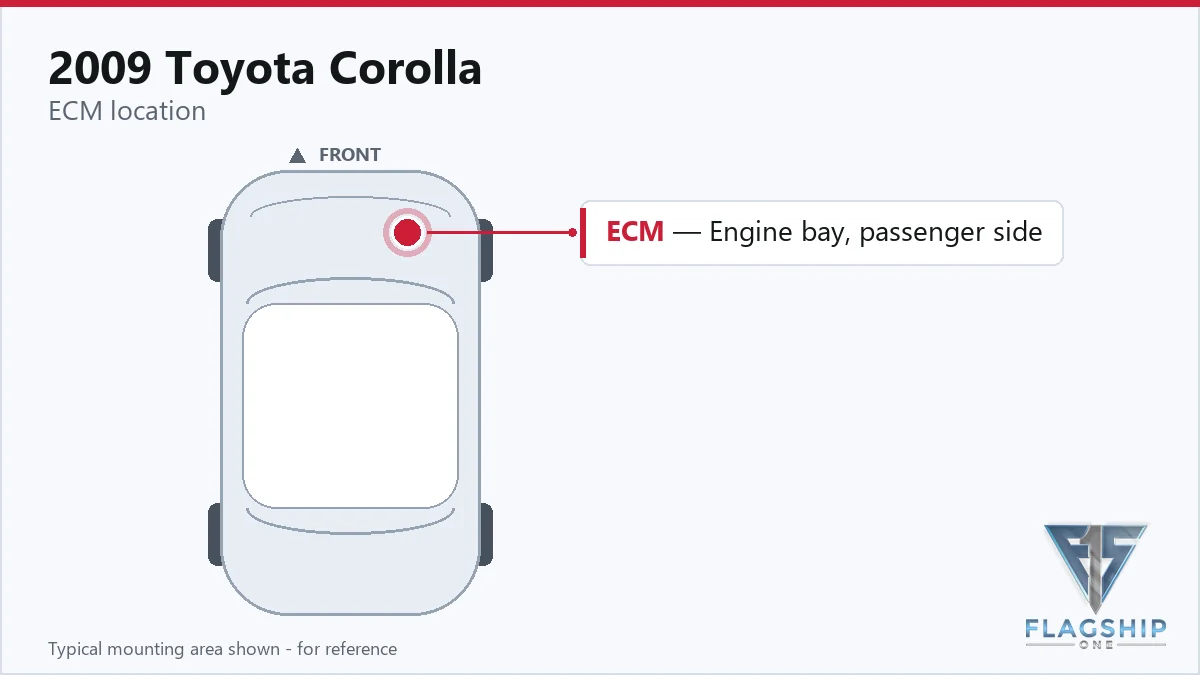

The engine control module is positioned within the engine compartment, as indicated by the factory electrical component locator. Removing the unit typically involves disconnecting the battery, unplugging the connector harness, and unbolting the mounting hardware. Reinstallation follows the reverse order, with the book time for an ECM relearn listed at 0.6 hours and a full removal and replacement at 0.7 hours. The powertrain control module shares a similar location and requires comparable steps, with a relearn time of 0.5 hours.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.6 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new module, the factory procedure calls for a specific ECU flash reprogramming step to align the unit with the vehicle’s VIN and calibration data. Flagship One supplies a VIN-programmed replacement unit that arrives already matched to your car, eliminating the need for the on‑site flash process and reducing the overall service time.
Symptoms of a Failing PCM
Typical signs of a failing engine or powertrain control module in a 2009 Toyota Corolla include a no‑start condition, intermittent stalling, rough idle, and loss of transmission shift control. Diagnostic scans often reveal the P0601 communication fault code, indicating the module is not communicating properly with other vehicle systems.
Module Trouble Codes on the 2009 Toyota Corolla
The following internal trouble codes are documented for the 2009 Toyota Corolla’s control modules:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
Factory Service Bulletins Worth Knowing
Service bulletin #T-SB-0064-10 outlines the Techstream ECU flash reprogramming procedure required for the Corolla’s electronic control units. This bulletin provides the official steps for updating the module software after replacement.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| T-SB-0064-10 | 01-11 Applicable Toyota Models: Techstream ECU Flash Reprogramming Procedure | — |
Protecting the PCM in Your 2009 Toyota Corolla
- Maintain a healthy charging system to avoid voltage drops.
- Keep all ground straps and connector pins clean and tight.
- Avoid high‑voltage spikes from jump‑starts or improper accessories.
- Address any diagnostic codes promptly before they worsen.
- Inspect and preserve connector seals to prevent moisture ingress.
Frequently Asked Questions
What are the typical labor times for replacing the ECM in a 2009 Toyota Corolla?
The factory book time for removing and reinstalling the engine control module on a 2009 Corolla is about 0.7 hours, with an additional 0.6 hours for the relearn procedure.
Is a software update required after installing a new PCM in this model?
Yes, the factory procedure includes a flash reprogramming step, which is covered by service bulletin #T-SB-0064-10. Flagship One units arrive pre‑programmed, so the update is already completed.
Can the P0601 code appear if the ECM is still functional?
The P0601 code signals a communication fault, which can arise from a bad connector, wiring issue, or a failing module. Proper inspection of grounds and connectors is recommended before replacing the module.
