2009 Lincoln MKS Powertrain Control Module Replacement Guide
In the 2009 Lincoln MKS, the Powertrain Control Module (PCM) governs engine and transmission functions. A malfunction can trigger misfires, poor acceleration, or loss of powertrain communication, leading to hard stalls or an engine shutdown.
Quick Summary
- PCM replacement takes 0.5 hours for a relearn and 0.9 hours for a reset.
- Engine Control Module (ECM) also requires 0.9 hours for a reset and 0.5 hours for a relearn.
- The Passive Anti‑Theft System (PATS) must be reprogrammed after new modules are installed.
- Flagship One units arrive VIN‑programmed, so the factory relearn step is already completed.
- Proper torque and connector checks are essential to avoid future communication errors.
When your 2009 Lincoln MKS fails to start, stalls unexpectedly, or shows persistent warning lights, the issue may lie within the Powertrain Control Module or Engine Control Module. These computer systems are central to engine management, vehicle stability, and safety features. Replacing a failing PCM or ECM can restore reliable performance and clear diagnostic trouble codes. This guide explains the steps to remove, install, and program these modules, and it outlines the common symptoms that point to a module fault. With a clear understanding of what each part does, you can make an informed decision about repair versus a refurbished replacement, ensuring your Lincoln MKS stays on the road with confidence.
What the PCM Does in a 2009 Lincoln MKS
The PCM in the 2009 Lincoln MKS is the brain that coordinates fuel injection, ignition timing, and transmission shift logic. It interprets sensor inputs and sends commands to actuators, ensuring efficient power delivery and compliance with emissions standards. When the PCM fails, the vehicle may lose engine control, trigger misfire codes, or shut down to protect itself. Replacement Powertrain Control Module for the 2009 Lincoln MKS performs the same tasks as the original unit, but is engineered to meet the same performance and diagnostic requirements. By understanding the PCM’s role, you can recognize when its failure is causing your vehicle’s problems and choose the right replacement strategy.
Where the PCM Is Located and What Replacement Involves
The Powertrain Control Module is located beneath the driver’s seat, close to the firewall, and is secured by a single mounting bolt. Access requires removal of the seat cushion and a quick release of the airbag harness. After the PCM is removed, the new unit is mounted, the bolt tightened to the manufacturer’s torque specification, and the airbag harness re‑connected. The Engine Control Module sits in the engine bay, behind the rear firewall, and is accessed after removing a few bolts from the engine cover. Replacement of the ECM involves similar steps: remove the cover, disconnect the connector, install the new unit, and secure it with the mounting hardware. Book times are 0.5 hours for PCM relearn, 0.9 hours for PCM reset, 0.9 hours for ECM reset, and 0.5 hours for ECM relearn.

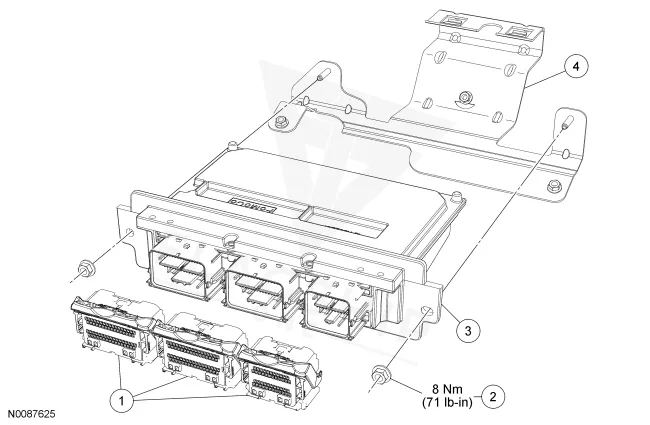

How to Reach the PCM on the 2009 Lincoln MKS
- Remove the cowl panel grille.
- Disconnect the 3 PCM electrical connectors.
- Remove the 2 nuts and the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing new PCM and ECM units, the factory requires a relearn sequence to synchronize the modules with the vehicle’s engine and transmission data. Flagship One units come VIN‑programmed, so the relearn step is already completed. The only additional action needed is to reprogram the Passive Anti‑Theft System (PATS) to recognize the new modules. This is done via the on‑board diagnostic interface and is a brief, single‑cycle procedure that restores full anti‑theft functionality without further user intervention. VIN‑programmed replacement unit ensures that your 2009 Lincoln MKS starts reliably from the moment you install it.
Symptoms of a Failing PCM
When the PCM or ECM in a 2009 Lincoln MKS fails, you may notice a range of symptoms. The engine might not start, stall during acceleration, or run rough with intermittent misfires. The check‑engine light may stay on, and the vehicle could enter a limp‑mode that reduces power and limits speed. Diagnostic trouble codes such as P0601 may appear, indicating a communication error between the modules and the engine control system. Other signs include loss of powertrain data on a scan tool, erratic transmission shifts, or an inability to shift into certain gears.
Protecting the PCM in Your 2009 Lincoln MKS
- Keep the battery’s charging system clean and within spec to avoid voltage spikes.
- Inspect and clean all connector grounds and pins regularly.
- Use a surge protector when jump‑starting the vehicle to prevent over‑voltage.
- Address any check‑engine light promptly to prevent deeper module damage.
- Replace damaged or corroded connector seals to maintain a secure electrical connection.
- Verify that all module mounting bolts are torqued to spec after each service.
Frequently Asked Questions
What does the Powertrain Control Module do in a 2009 Lincoln MKS?
The PCM controls engine timing, fuel injection, and transmission shift logic. It processes sensor data and sends commands to actuators, ensuring efficient operation and emissions compliance.
Why might my 2009 Lincoln MKS not start after a PCM replacement?
If the new PCM is not properly reset or relearned, or if the PATS is not reprogrammed, the vehicle may refuse to start to protect the engine and transmission.
Do I need a special tool to install the ECM on a 2009 Lincoln MKS?
The ECM is accessed through the engine bay cover and requires standard socket and wrench tools to remove the mounting bolts and disconnect the connector.
Will a refurbished PCM perform the same as a new unit?
A refurbished PCM that meets OEM specifications will provide identical functionality, but it may have a shorter warranty compared to a brand‑new unit.
How long does the relearn process take for the PCM?
The relearn step for the PCM is typically 0.5 hours, as indicated in the labor book times for the 2009 Lincoln MKS.
Whether you choose to repair your existing PCM and ECM or opt for a refurbished replacement, the goal is to restore your 2009 Lincoln MKS’s reliability and safety. A professional technician can handle the delicate removal and reinstall process, while a quality refurbished unit can offer comparable performance at a lower cost. Both options keep your vehicle running smoothly and safely.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Lincoln MKS with a lifetime warranty, free shipping and no core charge. The full Lincoln MKS module lineup covers other engine configurations as well.
Final Thoughts
Your 2009 Lincoln MKS deserves a dependable powertrain control system. By understanding the PCM and ECM functions and following proper replacement procedures, you can ensure that your vehicle remains responsive and safe on the road. Consider a certified refurbished unit for a cost‑effective solution that still delivers reliable performance.
