2009 GMC Yukon XL PCM/ECM: Engine Computer Replacement Guide

If your 2009 GMC Yukon XL is experiencing starting issues, stalling, or unexpected transmission behavior, the engine computer may be the culprit. The Powertrain Control Module serves as the brain for your vehicle’s powertrain, and when it fails internally, the results can range from inconvenient to stranded. This guide explains what the module does, where it lives, common failure symptoms, and your replacement options—so you can make an informed repair decision.

What the PCM Does in a 2009 GMC Yukon XL

The PCM in your 2009 GMC Yukon XL integrates engine and transmission control into a single unit, managing fuel injection timing, idle speed, emission system operation, and automatic shift points based on sensor inputs. Unlike simpler earlier systems, this module maintains extensive internal memory storing calibration data, adaptation values, and fault history. When internal memory circuits degrade, the module may lose its programming or set internal diagnostic trouble codes that cannot be cleared through normal means. This is distinct from sensor-related codes—the module itself has failed. Replacing the PCM requires addressing both the hardware and the vehicle-specific programming so the new unit can communicate with the drivetrain sensors and controllers throughout your Yukon XL.

Flagship One keeps GMC Yukon XL replacement engine computers in stock for exactly this failure pattern.

Where the PCM Is Located and What Replacement Involves

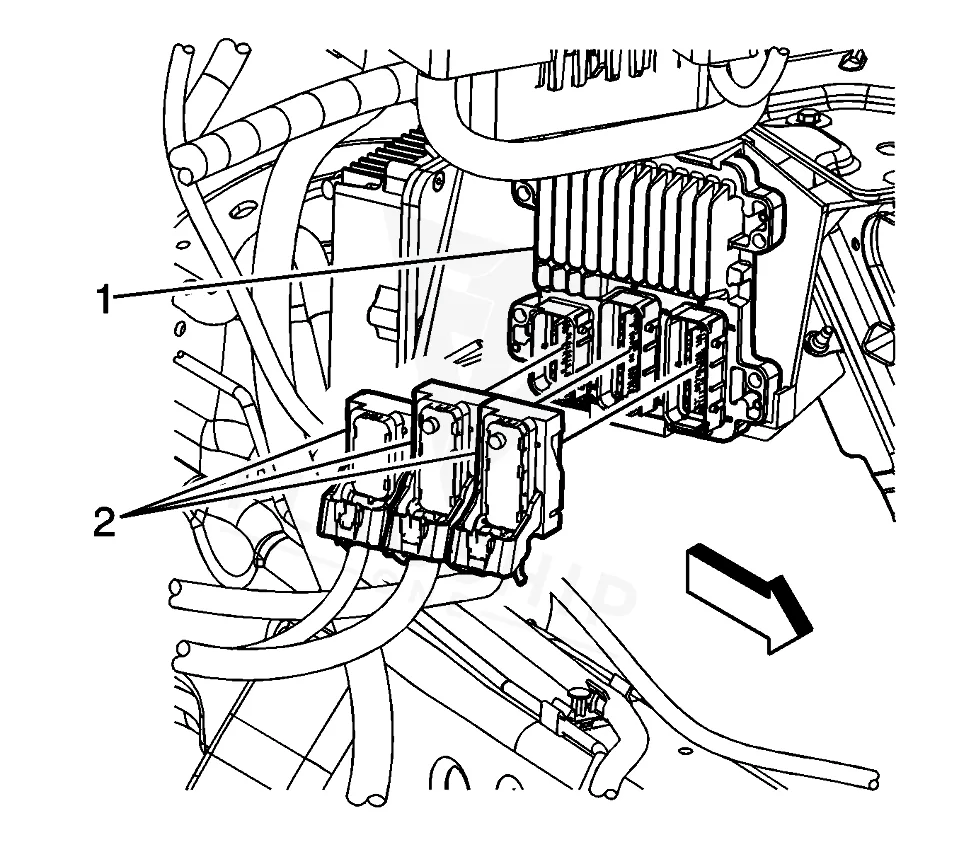

The engine control module on the 2009 GMC Yukon XL is located in the engine compartment, typically mounted to the firewall or front driver-side fender panel. Access requires removing engine cover components and disconnecting electrical connectors and vacuum lines as needed. The book time for PCM R&R on this vehicle is 1.4 hours, with an additional 0.5 hour for relearn procedures after installation. The replacement process involves removing the old module, installing the new unit, and allowing the vehicle’s systems to adapt to the new computer’s presence. Proper torque specifications for mounting bolts should be followed to ensure reliable operation.

Programming Requirements After Replacement

After replacing the ECM on your 2009 GMC Yukon XL, the factory procedure requires performing a relearn procedure using a scan tool—this allows the new module to adapt to your specific engine’s characteristics. The original procedure also specifies capturing the existing ECM data with a scan tool before removal, which preserves important vehicle-specific calibration information. Units from Flagship One arrive as a VIN-programmed replacement unit, meaning the new module is pre-loaded with your specific vehicle’s identification data, eliminating the need for manual programming at the dealership and getting you back on the road faster.

Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.

Symptoms of a Failing PCM

When the ECM fails on this vehicle, common symptoms include a no-start condition where the engine cranks but will not run, intermittent stalling during deceleration, and transmission shifting issues such as harsh shifts or failure to shift into gear. The check engine light may illuminate with module-internal codes that persist even after clearing. Diagnostic scan tools may show no communication with the PCM or display codes like P0601 indicating internal memory check sum errors. These symptoms often appear suddenly rather than gradually, as the internal processor or memory cells fail completely rather than degrading slowly.

Module Trouble Codes on the 2009 GMC Yukon XL

The codes below point to the PCM itself rather than to a sensor or circuit it monitors. Each one links through to its full diagnostic guide.

Factory Service Bulletins Worth Knowing

Service bulletin #09-08-68-001, issued November 13, 2009, addresses a condition where cruise control may turn off during operation on some 2009 GMC Yukon XL models. This issue typically occurs when the driver pulls up and releases both driver door window switches simultaneously, or when activating the heated windshield washer fluid system in cold weather conditions with battery charge below 80 percent. The factory remedy involves reprogramming the ECM to address this electrical interference issue.

Protecting the PCM in Your 2009 GMC Yukon XL

• Maintain your vehicle’s charging system—have the alternator and battery tested annually to prevent low-voltage conditions that stress the ECM
• Keep electrical connections clean and secure—corroded or loose grounds can cause voltage spikes that damage internal circuits
• Avoid jump-starting from a severely discharged battery—use a proper battery charger instead to prevent voltage surges
• Address any check engine light promptly—early diagnosis prevents cascading electrical issues
• Inspect and replace worn engine cover seals and gaskets—moisture intrusion can compromise the ECM housing

Frequently Asked Questions

Will a used PCM from a junkyard work on my 2009 GMC Yukon XL?

A used PCM will require programming to match your specific vehicle’s VIN and configuration. This typically requires dealer-level equipment and labor costs that may approach the price of a refurbished unit. Additionally, used modules may have unknown internal damage and no warranty coverage.

Can I drive my Yukon XL with a failing ECM?

Driving with a failing ECM is not recommended. The module controls critical functions including fuel delivery and transmission shifting. A failure during operation could result in a no-start condition, loss of power while driving, or being stranded. Having the vehicle towed to a repair facility is the safer choice.

What’s the difference between a PCM and ECM on this vehicle?

The 2009 GMC Yukon XL uses a combined PCM that handles both engine and transmission control functions. This integrated design means one module controls the entire powertrain, unlike older vehicles that used separate engine and transmission computers.

When your 2009 GMC Yukon XL’s engine computer fails, you have two primary paths: paying dealer prices for a new module plus programming fees, or choosing a refurbished replacement unit that arrives pre-programmed with your VIN. Refurbished units from reputable suppliers undergo testing to verify internal circuit integrity and include a warranty. Given the integrated nature of this vehicle’s powertrain control, having a reliable replacement installed by a qualified technician is essential for returning your Yukon XL to proper operation.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 GMC Yukon XL with a lifetime warranty, free shipping and no core charge. The full GMC Yukon XL module lineup covers other engine configurations as well.
