Complete 2009 GMC Yukon PCM/ECM Replacement and Programming Guide
The powertrain control module (PCM) in your 2009 GMC Yukon manages engine and transmission operations. Internal failures can cause no-start, stalling, or poor performance, often triggering module-internal trouble codes such as P0601, P0602, or P062F.
Quick Summary
- Factory book time for PCM removal and replacement on the 2009 GMC Yukon is 1.4 hours.
- A PCM relearn procedure takes an additional 0.5 hours after installation.
- Before removing the ECM, use a scan tool to capture the ECM data as per factory instructions.
- A service bulletin (#09-08-68-001) addresses cruise control turning off; reprogramming the ECM is the fix.
- Module-internal trouble codes for this vehicle include P0601, P0602, P0603, P0604, P062F, and P1621.
If your 2009 GMC Yukon is experiencing drivability issues, stalling, or a check engine light, the powertrain control module (PCM) may be at fault. This guide explains what the PCM does, how replacement is performed, and what programming steps are required. You will also learn about a relevant service bulletin and common trouble codes. Understanding these details helps you make informed decisions about repair or replacement.
What the PCM Does in a 2009 GMC Yukon
The powertrain control module (PCM) in your 2009 GMC Yukon acts as the brain of the engine and transmission management system. It controls fuel injection, ignition timing, shift points, and emissions functions. When the PCM fails, the vehicle may not start, run poorly, or set internal fault codes. For reliable operation, you may need replacement engine computers for the Yukon that match the original specifications. The PCM communicates with sensors and actuators to maintain performance and fuel economy.

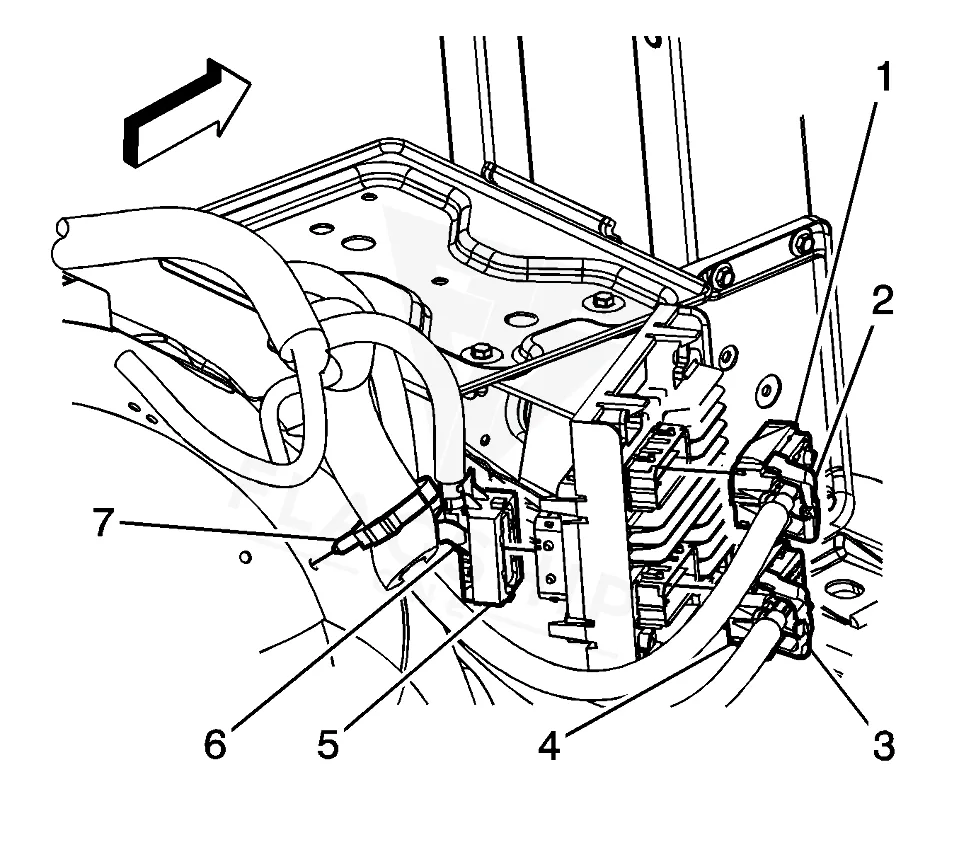

Where the PCM Is Located and What Replacement Involves
The PCM on the 2009 GMC Yukon is typically located in the engine compartment, often near the battery or firewall. Exact placement can vary by engine and options. According to factory labor times, removing and replacing the PCM takes 1.4 hours. After installation, a PCM relearn procedure is required, which adds 0.5 hours. The relearn allows the module to adapt to the vehicle’s specific settings. Before removal, the factory procedure instructs you to use a scan tool to capture the ECM data to preserve configuration.
How to Reach the PCM on the 2009 GMC Yukon
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Remove the ECM.
- Position the engine wiring harness lower electrical connector and engage the retainer.
- Position the engine wiring harness upper electrical connector and engage the retainer.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Yukon | 1.4 hr |
| Powertrain Control Module R&R | Yukon XL 1500 | 1.4 hr |
| Powertrain Control Module R&R | Yukon XL 2500 | 1.4 hr |
| Powertrain Control Module Relearn | Yukon | 0.5 hr |
| Powertrain Control Module Relearn | Yukon XL 1500 | 0.5 hr |
| Powertrain Control Module Relearn | Yukon XL 2500 | 0.5 hr |
| Engine Control Module Relearn | Yukon | 0.5 hr |
| Engine Control Module Relearn | Yukon XL 1500 | 0.5 hr |
Programming Requirements After Replacement
After installing a new or replacement PCM on the 2009 GMC Yukon, the factory procedure requires a relearn that takes 0.5 hours. This step ensures the module synchronizes with the vehicle’s security and emissions systems. However, with a VIN-programmed replacement unit from Flagship One, the programming is already completed to your vehicle’s VIN, so the relearn step is unnecessary. This saves time and ensures plug-and-play installation. The factory also advises capturing ECM data with a scan tool before removal.
Symptoms of a Failing PCM
Common symptoms of a failing PCM in the 2009 GMC Yukon include the engine cranking but not starting, intermittent stalling, rough idle, or transmission shifting problems. You may also notice the check engine light illuminated with internal module fault codes such as internal control module memory checksum error. Other signs include poor fuel economy, loss of power, or the cruise control turning off unexpectedly. A scan tool may show no communication with the module, indicating a failure.
Module Trouble Codes on the 2009 GMC Yukon
The following trouble codes are documented as module-internal faults for the 2009 GMC Yukon. These codes indicate problems within the PCM itself rather than external sensors or circuits.
Factory Service Bulletins Worth Knowing
Service bulletin #09-08-68-001 (November 13, 2009) addresses a condition where the cruise control turns off during operation. This occurs rarely, typically when pulling up and releasing both driver door window switches or activating the heated windshield washer fluid system in cold weather with a battery charge below 80%. The remedy is to reprogram the ECM. If your Yukon exhibits this symptom, reprogramming may resolve the issue without replacing the module.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-08-68-001 | Cruise Control Turns Off During Operation (Reprogram ECM) – (Nov 13, 2009) | On rare occasions, some customers may comment that the cruise control turned off. This typically occurs during operation and while pulling up and releasing… |
Protecting the PCM in Your 2009 GMC Yukon
- Maintain the charging system; keep the battery at a full charge to avoid low-voltage conditions that can stress the PCM.
- Inspect and clean ground connections and module connectors periodically to ensure good electrical contact.
- Avoid voltage spikes when jump-starting; connect cables properly and use a surge protector if possible.
- Address diagnostic trouble codes promptly to prevent further damage to the PCM or related components.
- Keep the PCM connector seals intact and free of moisture or corrosion to protect internal circuits.
Frequently Asked Questions
How long does it take to replace the PCM on a 2009 GMC Yukon?
The factory book time for PCM removal and replacement is 1.4 hours. An additional 0.5 hours is required for the PCM relearn procedure after installation.
What should I do before removing the ECM from my 2009 GMC Yukon?
The factory procedure instructs you to use a scan tool to capture the ECM data before removal. This preserves the vehicle’s configuration and may simplify programming.
Can a failing PCM cause the cruise control to turn off in my 2009 GMC Yukon?
Yes, service bulletin #09-08-68-001 describes a rare condition where the cruise control turns off, often when using window switches or the heated washer system in cold weather with a low battery. Reprogramming the ECM typically fixes it.
If your 2009 GMC Yukon needs a PCM replacement, you have options: repair the existing module or install a refurbished unit. A refurbished PCM that is pre-programmed to your VIN can save the 0.5-hour relearn step. Consider the labor time of 1.4 hours for removal and installation when planning the repair. Matching the correct module for your Yukon ensures proper fit and function.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 GMC Yukon with a lifetime warranty, free shipping and no core charge. The full GMC Yukon module lineup covers other engine configurations as well.
Final Thoughts
The 2009 GMC Yukon relies on its PCM for engine and transmission control. When failure occurs, replacement with a properly programmed unit restores performance. Use the factory labor times and service bulletin information to guide your repair. A VIN-programmed module from Flagship One simplifies the process by eliminating the post-install relearn.
