2009 Ford Expedition EL 5.4L PCM/ECM Guide – Symptoms, Replacement & TSB
The Powertrain Control Module (PCM) in your 2009 Ford Expedition EL 5.4L is the main computer that manages engine and transmission functions. It controls fuel injection, ignition timing, shift points, and emissions systems. When it fails, your vehicle may experience drivability issues, warning lights, or no-start conditions.
Quick Summary
- The PCM/ECM in the 2009 Ford Expedition EL 5.4L controls engine and transmission operation.
- Failure often triggers the MIL and diagnostic trouble codes like P0130 and P0150.
- Replacement labor is 0.8 hours for R&R plus 0.5 hours for a relearn procedure.
- A pre-programmed PCM from Flagship One eliminates the need for dealer programming.
- TSB 12-04-11 addresses oxygen sensor circuit faults related to PCM issues.
If you own a 2009 Ford Expedition EL with the 5.4L engine and you’re dealing with a check engine light, rough running, or a no-start condition, the Powertrain Control Module (PCM) may be the culprit. This computer is the brain of your vehicle’s engine and transmission management system. It receives data from dozens of sensors and adjusts fuel delivery, spark timing, and shift patterns in real time. When the PCM begins to fail, symptoms can be intermittent or constant, and they often mimic other problems like a bad sensor or a failing ignition component. This article will help you understand what the PCM does in your Expedition EL, where it’s located, what the factory labor times are for replacement, and how a pre-programmed unit from Flagship One can simplify the repair. You’ll also learn about a relevant service bulletin and common failure symptoms so you can diagnose with confidence.
What the PCM Does in a 2009 Ford Expedition EL
The PCM in your 2009 Ford Expedition EL 5.4L is a sealed electronic module that processes inputs from the oxygen sensors, throttle position sensor, mass airflow sensor, crankshaft and camshaft position sensors, and many others. It uses this data to calculate fuel injector pulse width, ignition coil dwell time, and transmission shift solenoids. The module also monitors emissions components and will illuminate the malfunction indicator lamp (MIL) when it detects a fault. In this vehicle, the PCM is a single unit that controls both the engine and the transmission, so a failure can affect everything from idle quality to shift firmness. If you need a replacement, you can find replacement PCMs for the Expedition that are pre-programmed to match your VIN, saving you the trouble of a dealer visit. The PCM is critical for meeting emissions standards and maintaining fuel economy, so a faulty unit should be addressed promptly.
Where the PCM Is Located and What Replacement Involves
The PCM in the 2009 Ford Expedition EL 5.4L is typically mounted on the passenger side of the engine compartment, near the firewall, or sometimes on the inner fender. Access requires removing the air cleaner assembly and possibly the battery tray to reach the module and its connectors. The factory book time for removing and replacing the PCM is 0.8 hours. After installation, a PCM relearn procedure is required, which the factory lists at 0.5 hours. This relearn allows the module to adapt to the vehicle’s specific sensors and driving habits. The process involves a specific drive cycle that may include idle, part-throttle, and deceleration phases. If you are performing the replacement yourself, be careful to disconnect the battery before unplugging the PCM to avoid electrical damage.

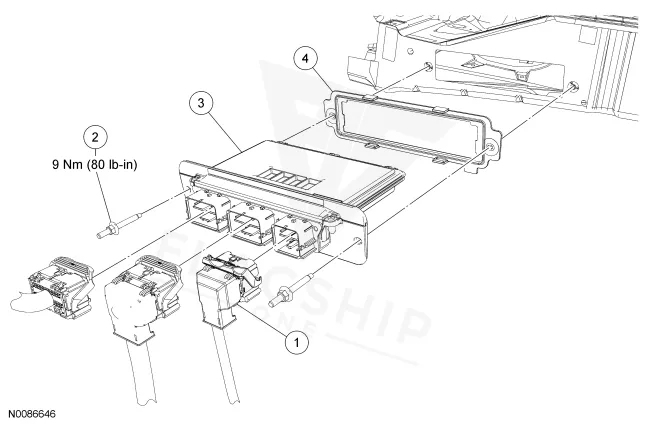

How to Reach the PCM on the 2009 Ford Expedition EL
- Disconnect the battery ground cable.
- Disconnect the 3 PCM electrical connectors.
- Remove the 2 stud bolts and the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
Programming Requirements After Replacement
After installing a new or remanufactured PCM in your 2009 Ford Expedition EL 5.4L, the factory procedure requires a PCM relearn that takes 0.5 hours. This step is necessary for the module to calibrate itself to the vehicle’s sensors and transmission. However, when you purchase a replacement unit from Flagship One, it arrives already programmed with your VIN and the correct calibration data. That means the 0.5-hour relearn procedure is already completed, and you can install the module and start the engine without needing a dealer scan tool. You simply need to perform the basic idle relearn if required. This is possible because Flagship One uses the original factory files to program a VIN-programmed replacement unit before shipping, so the module is ready to run in your Expedition EL right out of the box.
Symptoms of a Failing PCM
A failing PCM in the 2009 Ford Expedition EL 5.4L can produce a wide range of symptoms. The most common is the check engine light (MIL) coming on, often with diagnostic trouble codes such as oxygen sensor circuit fault or P0150. You may also experience intermittent stalling, rough idle, hesitation during acceleration, or a no-start condition where the engine cranks but does not fire. Transmission shifting may become erratic, with harsh or delayed shifts, or the transmission may fail to shift at all. In some cases, the vehicle may enter a limp-home mode, limiting speed and power. Other symptoms include poor fuel economy, surging at highway speeds, and the inability to communicate with a scan tool. Because the PCM controls so many systems, these symptoms can be mistaken for other failures, so proper diagnosis is essential.
Factory Service Bulletins Worth Knowing
Ford issued Technical Service Bulletin 12-04-11 for the 2009 Ford Expedition EL 5.4L. This bulletin addresses a condition where the malfunction indicator lamp (MIL) is illuminated with diagnostic trouble codes P0130 and P0150. These codes indicate a fault in the oxygen sensor circuit for bank 1 sensor 1 and bank 2 sensor 1, respectively. The TSB provides guidance for diagnosing and repairing the issue, which may involve checking the wiring, connectors, or the PCM itself. If you encounter these codes, consult the bulletin for the recommended repair steps.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 12-04-11 | 5.4L – MALFUNCTION INDICATOR LAMP (MIL) ON WITH DIAGNOSTIC TROUBLE CODES (DTCS) P0130 AND P0150 | — |
Protecting the PCM in Your 2009 Ford Expedition EL
- Keep the battery and charging system in good condition; voltage spikes from a failing alternator can damage the PCM.
- Inspect and clean the PCM ground connections and main engine grounds annually to prevent corrosion-related failures.
- Avoid jump-starting the vehicle with a running donor car; connect cables only with both vehicles off to reduce voltage surges.
- Address any check engine light or drivability code promptly before a minor sensor fault escalates into PCM damage.
- Ensure the PCM connector seals are intact and the module is protected from moisture and road splash.
- When performing electrical work on the vehicle, disconnect the battery negative terminal to prevent accidental shorts.
Frequently Asked Questions
Can a bad PCM cause a no-start in my 2009 Ford Expedition EL 5.4L?
Yes, a failed PCM can prevent the engine from starting. The PCM controls fuel injector pulse and ignition timing; if it is not functioning, the engine may crank but not fire. However, other causes like a faulty crank sensor or fuel pump should be ruled out first.
What is the labor time to replace the PCM on a 2009 Ford Expedition EL?
The factory book time for removing and replacing the PCM is 0.8 hours. An additional 0.5 hours is required for the PCM relearn procedure after installation. These times are estimates and may vary depending on your mechanic’s experience and access.
Do I need to program a new PCM for my 2009 Ford Expedition EL?
Yes, a new PCM must be programmed with the vehicle’s VIN and calibration data. The factory procedure includes a 0.5-hour relearn. However, if you purchase a pre-programmed unit from Flagship One, the programming is already done, so you can install it and drive.
What does TSB 12-04-11 cover for the 2009 Ford Expedition EL 5.4L?
TSB 12-04-11 addresses a check engine light with codes P0130 and P0150, which indicate oxygen sensor circuit faults. The bulletin provides diagnostic steps to check wiring and the PCM. It is a useful reference if you see those codes.
Can a failing PCM cause transmission shifting problems in my Expedition EL?
Yes, because the PCM controls the transmission shift solenoids. A faulty PCM can cause harsh, delayed, or erratic shifts, or the transmission may fail to shift out of first gear. This is a common symptom of PCM failure in this vehicle.
If your 2009 Ford Expedition EL 5.4L is showing signs of PCM trouble, you have options. Repairing the original module is sometimes possible, but replacement with a pre-programmed unit is often more reliable. Flagship One offers PCMs that are programmed to your VIN, so you can install them yourself or have a shop do the 0.8-hour R&R without needing a dealer visit. This saves time and money while restoring your Expedition’s performance.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Ford Expedition EL with a lifetime warranty, free shipping and no core charge. The full Ford Expedition EL module lineup covers other engine configurations as well.
Final Thoughts
The PCM in your 2009 Ford Expedition EL 5.4L is a vital component that manages engine and transmission operation. Recognizing symptoms like MIL illumination, stalling, or shifting issues can help you diagnose early. With a pre-programmed replacement from Flagship One, you can avoid the 0.5-hour relearn procedure and get back on the road quickly. Trust a quality replacement to keep your Expedition running smoothly.
