2009 Ford Escape Hybrid PCM and ECM Replacement Guide
In the 2009 Ford Escape Hybrid, the Powertrain Control Module and Engine Control Module manage engine and transmission functions, interpreting sensor data to control fuel, spark, and shift timing. Failure of either module can trigger multiple diagnostic codes, cause harsh or erratic shifting, and illuminate the malfunction indicator lamp, disrupting vehicle operation.
Quick Summary
- PCM and ECM each require about half an hour for removal and installation.
- Both modules need a relearn procedure after replacement.
- Factory programming includes a PATS reprogram step.
- Specific TSBs address shift harshness and MIL illumination.
- Flagship One units arrive VIN‑programmed, eliminating the need for manual coding.
When the check engine light comes on in your 2009 Ford Escape Hybrid and you notice rough shifting or harsh engagements, the electronic brain of the vehicle may be at fault. The Powertrain Control Module (PCM) and Engine Control Module (ECM) are responsible for interpreting sensor information and commanding the engine and transmission. Replacing these modules involves a defined set of steps, including removal, installation, relearn procedures, and a final programming sequence. This guide walks you through what each module does, how to access them, the labor times involved, and the post‑install programming that ensures the new unit works seamlessly with your vehicle’s hybrid system. By the end, you will understand the process and be prepared to decide between a new or refurbished replacement.
What the PCM Does in a 2009 Ford Escape Hybrid
The PCM in the 2009 Ford Escape Hybrid serves as the central command unit for both engine and transmission operations, processing inputs from dozens of sensors to adjust fuel delivery, ignition timing, and shift strategy. The ECM focuses specifically on engine management, handling combustion control, emissions monitoring, and idle stability. Together, they ensure the hybrid powertrain runs efficiently and meets emissions standards. Because the Escape Hybrid relies on precise coordination between the gasoline engine and electric motor, any discrepancy in PCM or ECM operation can lead to performance issues such as harsh shifting, unexpected limp mode, or MIL illumination. Understanding the role of these modules helps you appreciate why proper installation and programming are critical. replacement powertrain control modules for the 2009 Ford Escape Hybrid are typically sourced to match the vehicle’s VIN and software version.
Where the PCM Is Located and What Replacement Involves
The PCM and ECM are mounted within the engine compartment of the 2009 Ford Escape Hybrid, accessible after removing the engine cover and disconnecting the battery. Removal of each unit is listed at 0.5 hours in the labor guide, reflecting the time needed to detach wiring harnesses and mounting bolts. Installation follows the same steps in reverse, securing the new module with the original fasteners and reconnecting the electrical connectors. No additional torque specifications are provided, so standard manufacturer torque values should be observed. After the hardware is in place, each module requires a relearn process, also noted at 0.5 hours, to allow the vehicle’s control strategies to adapt to the new unit.
How to Reach the PCM on the 2009 Ford Escape Hybrid

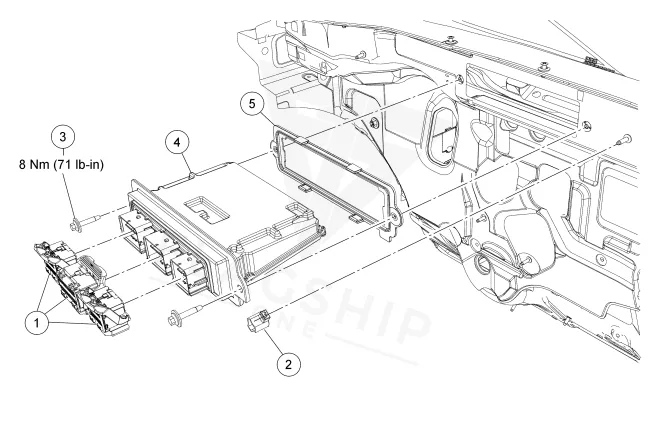

- Detach the wiring harness retainer from the cowl stud bolt.
- Disconnect the 3 PCM electrical connectors.
- Remove the 2 bolts and the PCM.
- Remove and inspect the PCM cowl seal.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
Programming Requirements After Replacement
Once the PCM or ECM is installed in your 2009 Ford Escape Hybrid, the factory procedure calls for a Powertrain Control Module relearn, an Engine Control Module relearn, and a reprogramming of the Passive Anti‑Theft System (PATS). Each relearn step is allocated 0.5 hours in the labor guide. Flagship One supplies units that arrive VIN‑programmed, meaning the necessary calibration data and PATS keys are already embedded. This eliminates the need for on‑site coding, allowing the technician to focus on the relearn cycles and final verification. a VIN‑programmed replacement unit simplifies the post‑install workflow and reduces the risk of programming errors.
Symptoms of a Failing PCM
A failing PCM or ECM in the 2009 Ford Escape Hybrid may produce a range of observable issues. Common symptoms include a non‑starting condition, intermittent stalling, rough idle, and loss of power during acceleration. You might also see multiple diagnostic trouble codes related to fuel trim, sensor failures, or hybrid system faults. In some cases, the vehicle may experience harsh or erratic shifting, especially if the transmission control logic is compromised. The MIL may illuminate with codes such as P0770 or P0774, indicating shift solenoid problems, or hybrid‑specific codes like P013A, reflecting sensor anomalies. When these codes appear, the vehicle may also exhibit reduced fuel efficiency. A typical indicator of a module fault is the presence of shift solenoid malfunction in a scan tool readout.
Factory Service Bulletins Worth Knowing
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-19-05 | 6F35 TRANSMISSION, DTC- P0770, P0772, P0773, P0774 – BUILT 9/8/2008 TO 9/26/2008 – ERRATIC SHIF | — |
| 10-18-03 | HYBRID – MIL ON DTCS P013A, P0030, P0130 AND/OR P0400 | — |
Protecting the PCM in Your 2009 Ford Escape Hybrid
- Maintain a healthy charging system to avoid voltage spikes that can damage electronic modules.
- Ensure all ground connections are clean and secure to provide reliable reference voltages.
- Avoid jump‑starting the vehicle unless absolutely necessary, as high surge currents can affect module circuitry.
- Promptly address any diagnostic codes to prevent prolonged stress on the PCM or ECM.
- Inspect connector seals regularly to keep moisture and contaminants out of the module housing.
- Keep the battery terminals clean and tight to support stable power delivery to control units.
Frequently Asked Questions
What are the labor times for replacing the PCM in a 2009 Ford Escape Hybrid?
The labor guide lists 0.5 hours for removing the Powertrain Control Module and another 0.5 hours for the relearn procedure after installation.
Does the 2009 Ford Escape Hybrid require a special programming step after ECM replacement?
Yes, the factory procedure includes an Engine Control Module relearn and a reprogramming of the Passive Anti‑Theft System, each allocated 0.5 hours.
Which TSB addresses harsh shifting in the 2009 Escape Hybrid?
Technical Service Bulletin 09‑19‑05 covers transmission codes P0770‑P0774 and describes erratic shift and harsh engagement symptoms.
Can a VIN‑programmed replacement unit eliminate the need for on‑site coding?
Flagship One units arrive pre‑programmed with the vehicle’s VIN, so the technician does not need to perform additional coding steps.
What hybrid‑specific codes might appear if the ECM is failing?
Codes such as P013A, P0030, P0130, and P0400 are listed in TSB 10‑18‑03 and can indicate sensor or emissions issues related to the hybrid system.
When the PCM or ECM in your 2009 Ford Escape Hybrid needs service, you can choose a brand‑new factory unit or a refurbished replacement that meets OEM specifications. Both options require the same removal, relearn, and programming steps, but a refurbished unit from Flagship One arrives VIN‑programmed, streamlining the final verification. Evaluate your budget and warranty preferences to select the solution that best fits your vehicle’s needs.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Ford Escape Hybrid with a lifetime warranty, free shipping and no core charge. The full Ford Escape Hybrid module lineup covers other engine configurations as well.
Final Thoughts
The Powertrain Control Module and Engine Control Module are vital to the operation of your 2009 Ford Escape Hybrid. Whether you opt for a new or refurbished replacement, proper installation, relearn, and programming are essential to restore reliable performance. Contact a qualified technician to assess the best path forward for your vehicle.
