2008 Jeep Cherokee ECM and PCM Replacement and Programming Overview
In the 2008 Jeep Cherokee, the Engine Control Module and Powertrain Control Module manage engine timing, fuel delivery, and transmission shifting. Failure of either unit can interrupt sensor communication, trigger fault codes, and prevent the vehicle from operating correctly.
Quick Summary
- ECM sits left of the battery under the engine cover; PCM attaches to the right‑front inner fender.
- Factory‑specified removal and installation time is about 0.4‑0.5 hours per module.
- After replacement, each module requires a relearn or R&R procedure to sync with the vehicle.
When a 2008 Jeep Cherokee experiences engine‑control issues, the underlying cause often traces back to the electronic control modules. This guide explains where the ECM and PCM reside, what steps are involved in swapping them, and why the programming process matters. By the end, you’ll understand the labor effort, required diagnostics, and how a properly programmed replacement can get your Cherokee back on the road.
What the PCM Does in a 2008 Jeep Cherokee
The Engine Control Module and Powertrain Control Module in a 2008 Jeep Cherokee act as the vehicle’s brain, processing sensor inputs to regulate fuel injection, ignition timing, and transmission shift points. They also store diagnostic information that helps pinpoint failures. Proper operation is essential for smooth power delivery and emissions compliance, and a malfunction can trigger a range of performance symptoms. The modules communicate with numerous subsystems, making them a critical link in overall vehicle control. replacement engine computers for the 2008 Jeep Cherokee ensure the vehicle runs as designed.
Where the PCM Is Located and What Replacement Involves

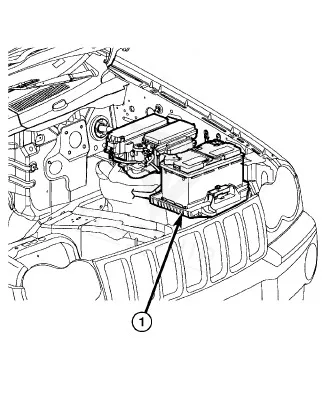

The ECM is located on the left side of the engine compartment beneath the battery, while the PCM is mounted to the right‑front inner fender in the same compartment. Removal typically follows the book times of 0.4 hours for each R&R (remove and replace) and 0.5 hours for the relearn procedures. Access involves disconnecting the battery, removing the mounting bolts, and unplugging the connector harnesses before the new unit can be positioned and secured.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.4 hr |
Programming Requirements After Replacement
After installing a new ECM or PCM, the factory procedure calls for a specific relearn or R&R step to synchronize the module with the vehicle’s control network. Flagship One units arrive pre‑programmed for the vehicle’s VIN, so the required programming is already completed. a VIN-programmed replacement unit eliminates the need for additional on‑site coding.
Symptoms of a Failing PCM
Typical signs of a failing ECM or PCM in a 2008 Jeep Cherokee include intermittent no‑start conditions, rough idle, unexpected stalling, and loss of transmission shift control. Diagnostic trouble codes may appear, such as code P0601 fault, indicating internal processor errors. You might also notice a dead scan‑tool connection or erratic sensor readings, all of which point to module malfunction.
Module Trouble Codes on the 2008 Jeep Cherokee
The following internal fault codes have been documented for the 2008 Jeep Cherokee’s control modules:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Bulletin 24-002-09 Rev. A addresses an excessive temperature rise when the HVAC temperature knob is moved off the cold setting, requiring ATC control replacement and an actuator calibration. Bulletins 18-026-11 and 18-027-11 cover MIL illumination, with the latter also noting P0730/P0731 codes and a fuel‑economy improvement procedure.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 24-002-09 Rev. A | 24-002-09 Rev. A Flash – Too Large Of A Temperature Increase When the TEMP Knob Is Moved One or | ing > Controls > Control, A/C and Heater > replace the ATC control. After performing control replacement, initiate the Actuator Calibration function using the… |
| 18-026-11 | 18-026-11 Flash: MIL Illumination | — |
| 18-027-11 | 18-027-11 Flash: MIL Illumination P0730 and/or P0731 and Fuel Economy Improvement | — |
Protecting the PCM in Your 2008 Jeep Cherokee
- Maintain a healthy charging system to avoid voltage fluctuations.
- Keep ground straps and connector pins clean and corrosion‑free.
- Avoid high‑voltage spikes from improper jump‑starts.
- Address any diagnostic codes promptly to prevent module stress.
- Inspect and replace worn connector seals as needed.
Frequently Asked Questions
What are the typical labor times for replacing the ECM in a 2008 Jeep Cherokee?
The factory book lists about 0.4 hours for removal and replacement, followed by a 0.5‑hour relearn procedure.
Can I use a used ECM in my 2008 Jeep Cherokee without programming?
A used unit would need to be re‑programmed to match your VIN and calibration data; Flagship One units arrive already programmed.
What fault codes indicate a problem with the PCM in this model?
Codes such as P0730, P0731, and the internal processor code P0601 may appear when the PCM is not functioning correctly.
When the ECM or PCM fails, you can choose a repair that restores the original hardware or opt for a refurbished replacement that meets factory specifications. Both approaches require the same installation steps, but a pre‑programmed unit can simplify the post‑install process for your 2008 Jeep Cherokee.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2008 Jeep Cherokee with a lifetime warranty, free shipping and no core charge. The full Jeep Cherokee module lineup covers other engine configurations as well.
Final Thoughts
Replacing the ECM or PCM in a 2008 Jeep Cherokee can resolve a range of drivability issues. Consider a VIN‑programmed replacement to streamline the final steps and get your vehicle back on the road with confidence.
