2008 Dodge Nitro PCM Replacement and Relearn
The Powertrain Control Module in the 2008 Dodge Nitro directs engine timing, fuel delivery, and A/C operation. Failure often manifests as engine misfires, loss of power, or system errors.
Quick Summary
- Replacement requires 0.5 hours for Powertrain Control Module removal and reinstall.
- Relearn of Engine Control Module also takes 0.5 hours.
- A new ECM must be VIN‑programmed to avoid DTCs.
- Service bulletins address cooling and A/C performance, MIL illumination, and low‑speed hesitation.
You’re likely seeing warning lights or engine performance issues on your 2008 Dodge Nitro. The Powertrain Control Module (PCM) sits at the heart of your vehicle’s electronic control system, coordinating engine, transmission, and climate functions. Replacing or repairing the PCM can restore reliable operation, but the process involves careful removal, relearn, and programming steps. This guide explains the scope of the work, the key service bulletins that may apply, and how to keep your new module running smoothly.
What the PCM Does in a 2008 Dodge Nitro
The PCM in the 2008 Dodge Nitro is responsible for interpreting sensor data and sending commands to the engine, transmission, and A/C system. It manages ignition timing, fuel injection rates, and the operation of the A/C compressor and heater core. Dodge Nitro PCM Replacement When the PCM fails, the vehicle may experience stalling, loss of power, or erratic climate control. Because the PCM also interfaces with the Engine Control Module, a malfunction can trigger internal codes such as P0601 and P0606, indicating communication or module integrity problems. Understanding the PCM’s role helps you recognize when a replacement is necessary and ensures that the new unit is integrated correctly.
Where the PCM Is Located and What Replacement Involves
The PCM is mounted under the dash, near the steering column. Removing it involves disconnecting the battery, removing the harness connector, and loosening the mounting bolts. The process takes roughly 0.5 hours for removal and 0.5 hours for reinstall. After reinstalling, the Engine Control Module must also undergo a relearn procedure that consumes an additional 0.5 hours. No special torque tools or additional hardware are required beyond the standard service manual instructions.
How to Reach the PCM on the 2008 Dodge Nitro
- Disconnect and isolate the.
- Remove the glow plug relay.
- Disconnect the positive battery.
- Disconnect the two electrical.
- Remove the two nuts or screws.
- Remove the engine control.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the PCM is installed, the factory requires the module to be reprogrammed with the vehicle’s original VIN and mileage to prevent a DTC from being set. Flagship One units arrive already VIN‑programmed, so the reprogramming step is unnecessary and can be skipped, saving time and eliminating the risk of a stray code. The new PCM will automatically calibrate the door lock and climate controls once the key is detected.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
Typical signs of a faulty PCM in the 2008 Dodge Nitro include a sudden loss of engine power, stalling at idle, or erratic A/C behavior. If the PCM cannot communicate with the Engine Control Module, the diagnostic tool may display a dead‑scan‑tool error. Internal codes such as PCM Communication Failure indicate that the module is not responding correctly to sensor inputs. These symptoms can also trigger MIL illumination or trigger codes like P050d or P2181.
Module Trouble Codes on the 2008 Dodge Nitro
The 2008 Dodge Nitro’s PCM can generate internal trouble codes that point to communication or integrity issues within the module itself.
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Service Bulletin #24-007-08 Rev. A addresses A/C performance and cooling concerns that may be resolved by flashing the PCM. Bulletin #18-015-11 Rev. B targets MIL illumination linked to codes P050d or P2181. Bulletin #18-012-10 focuses on a drone sound or hesitation between 38–45 MPH. All three flash procedures are applicable to vehicles built before May 30, 2008.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 24-007-08 Rev. A | 24-007-08 Rev. A Flash: ATC/MTC Poor Performance / Vehicle Not Cooling Enough and/or A/C System | ing > Controls > Control, A/C and Heater > Removal/Installation. Door calibration will be performed automatically once the new control module detects key on.… |
| 18-015-11 Rev. B | 18-015-11 Rev. B Flash: MIL Illumination P050d or P2181 Is Set | — |
| 18-012-10 | 18-012-10 Flash: Drone Sound or Hesitation Feel Between 38 to 45 MPH (61 to 72 Km/H) | — |
Protecting the PCM in Your 2008 Dodge Nitro
- Keep the battery charging system within manufacturer limits to avoid voltage spikes.
- Ensure all connector pins are clean and free of corrosion.
- Avoid using high‑current jump‑starts that can stress the PCM.
- Address any diagnostic trouble codes promptly to prevent further degradation.
- Check connector seals and gaskets to prevent moisture ingress.
- Verify that the PCM is properly secured to avoid vibration damage.
Frequently Asked Questions
Will a new PCM for my 2008 Dodge Nitro still need a relearn of the engine control module?
Yes. Even though the new PCM is fully functional, the Engine Control Module must perform a relearn to re‑synchronize with the updated PCM settings.
What happens if the PCM is not reprogrammed with the VIN after installation?
The vehicle may set a diagnostic trouble code and the Engine Control Module could refuse to communicate, leading to reduced performance or warning lights.
Do I need to perform the A/C system flash after installing the new PCM?
If your Nitro was built before May 30, 2008, the flash is recommended to ensure proper A/C and cooling operation.
Can I skip the Engine Control Module relearn if the PCM is already programmed?
Skipping the relearn risks misalignment between modules, potentially causing engine timing or fuel delivery issues.
How long will the replacement PCM last if installed correctly?
A properly installed and programmed PCM typically lasts for the life of the vehicle, provided the charging system and electrical connections remain healthy.
When your 2008 Dodge Nitro shows PCM symptoms, you have the option to repair the existing unit or replace it with a refurbished, VIN‑programmed module from Flagship One. A refurbished PCM can deliver the same reliability at a lower cost, while repair may be quicker if the fault is isolated.

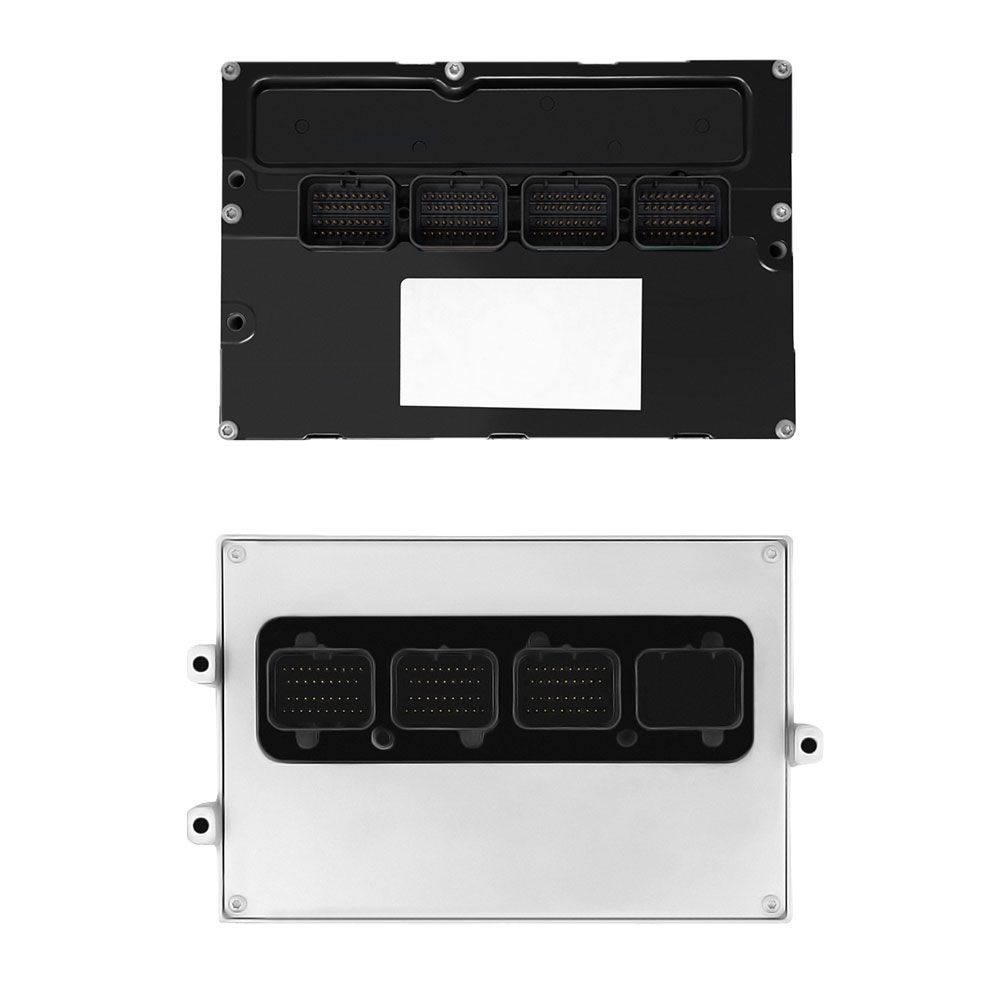

Flagship One stocks a refurbished, VIN-programmed PCM for the 2008 Dodge Nitro with a lifetime warranty, free shipping and no core charge. The full Dodge Nitro module lineup covers other engine configurations as well.
Final Thoughts
For a 2008 Dodge Nitro, a PCM replacement or repair restores engine and A/C control, eliminating common codes like P0601. By following the proper installation and programming steps, you can keep your vehicle running reliably for years.
