2007 Mercury Mariner Hybrid PCM and ECM Service Guide
In the 2007 Mercury Mariner Hybrid, the Powertrain Control Module (PCM) and Engine Control Module (ECM) manage engine timing, fuel delivery, and hybrid system coordination. Failure of these computers can trigger the malfunction indicator lamp, cause loss of power, and generate diagnostic codes such as U2062.
Quick Summary
- PCM/ECM replacement typically requires 0.6 hours for removal and 0.5 hours for relearn.
- Powertrain Control Module removal averages 0.3 hours, with an additional 0.5 hours for relearn.
- Factory programming includes passive anti‑theft system and key reprogramming.
- TSB 08‑03‑01 addresses a MIL that lights with code U2062.
When the check‑engine light appears on a 2007 Mercury Mariner Hybrid, the cause often traces back to the vehicle’s electronic control modules. Understanding how the PCM and ECM function, where they reside, and what factory procedures follow a replacement can help you decide between a new or refurbished unit. This guide walks you through the basics of the modules, typical labor times, programming requirements, known service bulletins, and practical steps to keep the system healthy, giving you the confidence to address the issue effectively.
What the PCM Does in a 2007 Mercury Mariner Hybrid
The Powertrain Control Module in the 2007 Mercury Mariner Hybrid acts as the central brain for both the gasoline engine and the hybrid electric components. It interprets sensor data, commands fuel injectors, controls ignition timing, and coordinates the interaction between the electric motor and the internal combustion engine. By regulating these functions, the PCM ensures smooth acceleration, optimal fuel efficiency, and compliance with emissions standards. A malfunction can lead to poor performance, stalling, or a persistent MIL. The Engine Control Module works closely with the PCM, focusing on engine‑specific tasks such as spark timing and emission control. Both modules share data over the vehicle bus, and any disruption can affect hybrid operation. Understanding their role helps you appreciate why a proper replacement engine control module for the 2007 Mercury Mariner Hybrid is essential for reliable performance.
Where the PCM Is Located and What Replacement Involves
The PCM and ECM are mounted within the engine compartment, typically secured to the firewall or near the battery box for easy access. Removal involves disconnecting the primary power connector, unfastening the mounting bolts, and withdrawing the unit. According to the labor guide, extracting the Engine Control Module requires about 0.5 hours, while reinstalling and securing it takes another 0.6 hours. The Powertrain Control Module removal is listed at 0.3 hours, with an additional 0.5 hours needed to complete the relearn procedure after the new unit is installed. No torque specifications are provided, so standard fastener tightening practices apply.

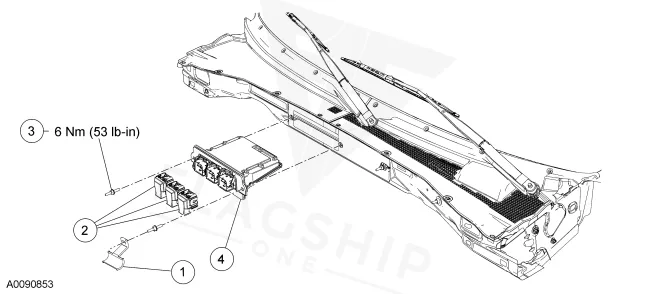

How to Reach the PCM on the 2007 Mercury Mariner Hybrid
- Remove the powertrain control module (PCM) stud bolt nut and position the wiring harness aside.
- Disconnect the 3 PCM electrical connectors.
- Remove the 2 stud bolts and the PCM.
- Remove the PCM cowl seal.
- Position the wiring harness and install the PCM stud bolt nut.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module R&R | All configurations | 0.3 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new PCM or ECM in the 2007 Mercury Mariner Hybrid, the factory process calls for a passive anti‑theft system (PATS) reprogram and a customer key reprogram. Flagship One supplies each unit already VIN‑programmed, so those steps are effectively completed before the part reaches you. When the replacement arrives, you typically only need to verify the passive anti‑theft system and ensure the keys are recognized, which can be done with a standard scan tool. This a VIN-programmed replacement unit eliminates the need for on‑site coding, reducing shop time and potential errors.
Symptoms of a Failing PCM
A failing PCM or ECM in the 2007 Mercury Mariner Hybrid may present with a steady or flashing malfunction indicator lamp, often accompanied by the diagnostic code communication error between modules. Drivers might notice rough idle, hesitation during acceleration, or unexpected shifts in hybrid mode. In some cases, the vehicle may refuse to start, or the engine could stall shortly after ignition. Scan‑tool communication can become intermittent, and you may see related codes that point to sensor mismatches or loss of hybrid system coordination. Addressing these symptoms promptly helps avoid further drivetrain stress.
Factory Service Bulletins Worth Knowing
Service Bulletin 08‑03‑01 documents a condition where the malfunction indicator lamp illuminates with diagnostic trouble code U2062. The bulletin outlines diagnostic steps and recommended repair actions to resolve the issue.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 08-03-01 | MALFUNCTION INDICATOR LAMP (MIL) ON WITH DIAGNOSTIC TROUBLE CODE (DTC) U2062 | — |
Protecting the PCM in Your 2007 Mercury Mariner Hybrid
- Maintain a healthy charging system to avoid voltage fluctuations that can affect module operation.
- Keep ground connections and wiring harnesses clean and securely fastened.
- Use a proper jump‑start method to prevent voltage spikes from reaching the PCM and ECM.
- Address any diagnostic codes promptly to prevent prolonged exposure to faulty signals.
- Inspect connector seals regularly to keep moisture out of the module housing.
- Avoid extended periods of deep discharge in the hybrid battery, which can stress the control modules.
Frequently Asked Questions
What are the typical labor times for replacing the PCM in a 2007 Mercury Mariner Hybrid?
The labor guide lists about 0.6 hours for removing the Powertrain Control Module and an additional 0.5 hours for the relearn procedure after installation.
Do I need special equipment to reprogram the keys after a PCM swap on my 2007 Mercury Mariner Hybrid?
Factory procedures require reprogramming the passive anti‑theft system and the customer keys, which can be performed with a standard OEM scan tool.
What does diagnostic code U2062 indicate on this vehicle?
U2062 points to a communication error between the vehicle’s control modules, often triggering the malfunction indicator lamp.
Can a refurbished PCM be used as a direct replacement in the 2007 Mercury Mariner Hybrid?
A refurbished unit that is VIN‑programmed can be installed, provided it meets the factory specifications and the post‑install relearn steps are completed.
Is there a service bulletin that addresses MIL illumination on this model?
Yes, Service Bulletin 08‑03‑01 specifically covers a MIL that lights with code U2062 and outlines the recommended diagnostic approach.
When the control module fails, you have the option of installing a brand‑new unit or a professionally refurbished replacement. Both approaches restore the 2007 Mercury Mariner Hybrid’s electronic management, but a refurbished part from Flagship One arrives pre‑programmed, reducing shop time and ensuring compatibility with the vehicle’s VIN.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2007 Mercury Mariner Hybrid with a lifetime warranty, free shipping and no core charge. The full Mercury Mariner Hybrid module lineup covers other engine configurations as well.
Final Thoughts
If your 2007 Mercury Mariner Hybrid shows PCM or ECM issues, evaluating the repair versus a refurbished replacement can help you choose the most efficient solution. Contact a qualified technician to confirm the diagnosis and discuss the best path forward.
