2007 Lincoln Town Car PCM & ECM: Replacement & Programming Guide

If your 2007 Lincoln Town Car has developed a no-start condition, is stalling unexpectedly, or has illuminated the check engine light with multiple diagnostic trouble codes present, the Powertrain Control Module (PCM) or Engine Control Module (ECM) may be the root cause. These two terms are often used interchangeably in automotive service literature, though technically the PCM encompasses both the engine control and transmission control functions in this vehicle. This guide explains what these modules do, where they are located, what the replacement procedure involves, and how the programming process works. Whether you are diagnosing a current failure or evaluating your options before proceeding with repairs, the information here will help you understand the scope of work and make informed decisions about service options for your Town Car.

What the PCM Does in a 2007 Lincoln Town Car

The Engine Control Module in your 2007 Lincoln Town Car functions as the primary digital brain of the vehicle’s powertrain. This processor manages the 4.6L V8 engine’s fuel injection timing, idle air control, emission control systems, and in conjunction with the transmission control portion of the PCM, also governs gear shifting for the automatic transmission. The module receives input from dozens of sensors throughout the engine compartment and uses this data to make real-time adjustments to optimize performance, fuel economy and emissions compliance. Why does this matter to you? When the internal circuitry of this module degrades or suffers voltage damage, the vehicle loses its ability to properly meter fuel, control idle speed, or manage transmission shift points. The result is a car that may crank but not start, stall at idle, run roughly with misfire codes setting, or simply illuminate the malfunction indicator light without obvious drivability symptoms. Many shops handling replacement engine computers for the Town Car find that the vehicle becomes completely inoperable when this module fails, because modern security interlocks and sensor feedback loops create a cascade of failures that disable starting and running functions.

Flagship One keeps Lincoln Town Car replacement engine computers in stock for exactly this failure pattern.

Where the PCM Is Located and What Replacement Involves

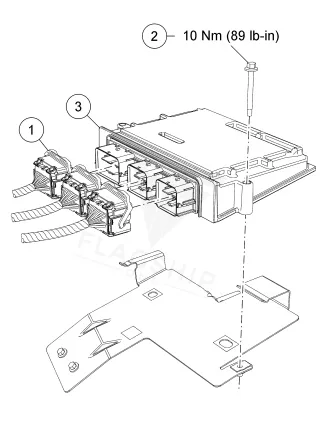

The control module on your 2007 Lincoln Town Car is located inside the passenger compartment, specifically on the right side of the vehicle near the front passenger footwell area. Access typically requires removing interior trim panels to reach the unit, which is mounted in a protected location away from engine bay heat sources but still accessible for replacement. The replacement procedure involves disconnecting the battery negative terminal first, then removing the module from its mounting bracket, disconnecting the wiring harness connectors, and reversing the procedure with the new or remanufactured unit. Book time for the Powertrain Control Module remove and replace operation is 1.1 hours according to labor guide standards, while the Engine Control Module remove and replace carries the same 1.1 hour book time. After the physical replacement is complete, additional labor time accounts for relearn procedures that must be performed to allow the new module to adapt to your vehicle’s specific sensors and calibration.

Programming Requirements After Replacement

Following module replacement on your 2007 Lincoln Town Car, the factory procedure requires reprogramming the Passive Anti-Theft System (PATS) so that the security system recognizes the new control module as a valid component. This PATS reprogramming is essential — without it, the vehicle will not start even though the engine mechanicals are functioning normally. The process typically involves using dealer-level diagnostic equipment to parameter reset the anti-theft immobilizer function and synchronize the new module with your vehicle’s unique VIN and key transponder data. Flagship One addresses this requirement by shipping a VIN-programmed replacement unit that arrives pre-configured to your specific vehicle identification number, meaning the PATS programming steps that would normally require dealer equipment are already completed before the module ever arrives at your shop or driveway.

Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.

Symptoms of a Failing PCM

When the PCM or ECM fails on a 2007 Lincoln Town Car, the most common presentation is a vehicle that cranks normally but will not start, or one that starts and then immediately stalls. Many owners report that the car ran fine one day and simply would not start the next, with no warning symptoms in between. Others describe intermittent stalling episodes, particularly at idle or during low-speed maneuvers, often accompanied by a rough-running engine that feels like it is misfiring. The check engine light typically illuminates, and diagnostic scanning may reveal multiple trouble codes including those related to fuel trim, oxygen sensor heater circuits, and transmission range sensor issues. In cases where the module has suffered an internal processor failure, a P0606 code indicating processor or memory faults within the control module itself may be present, which confirms that the module requires replacement rather than repair.

Module Trouble Codes on the 2007 Lincoln Town Car

The module-internal trouble code documented for this vehicle is P0606, which indicates a failure within the control module’s internal processor or memory system. This code is not related to external sensors or wiring — it signals that the microprocessor itself has detected an internal fault that compromises its ability to function properly.

Factory Service Bulletins Worth Knowing

Factory Service Bulletin TSB 06-26-04 addresses situations where the malfunction indicator light is illuminated on 2007 Lincoln Town Car vehicles, with multiple diagnostic trouble codes present. This bulletin provides guidance to dealers and technicians on diagnosing and addressing scenarios where the check engine light activates along with various stored codes that may appear to have unrelated root causes. The bulletin acknowledges that certain electrical faults or module issues can trigger multiple codes simultaneously, and it directs technicians to consider the control module itself as a potential root cause when conventional sensor or wiring repairs do not resolve the code-setting condition.

Protecting the PCM in Your 2007 Lincoln Town Car

• Maintain healthy charging system by ensuring the battery is in good condition and the alternator is charging at proper voltage
• Keep all ground connections clean and secure, particularly those attached to the engine and body wiring points
• Avoid jump-starting from another vehicle when possible, as voltage spikes can damage sensitive module circuitry
• Address diagnostic trouble codes promptly rather than ignoring them, as underlying issues can cascade into module damage
• Inspect and maintain intact all connector seals and wiring loom protection to prevent moisture intrusion
• Use voltage surge protectors on the vehicle’s electrical system when performing welding or other high-draw procedures

Frequently Asked Questions

How do I know if my 2007 Lincoln Town Car needs a PCM replacement versus repair?

Diagnosis typically begins with scanning for diagnostic trouble codes. If codes like P0606 are present indicating internal module failure, or if the vehicle exhibits no-start behavior with all other potential causes ruled out, replacement is usually the recommended path. Repair is rarely viable for modern control modules due to the complexity of internal circuitry.

Can I replace the PCM on my Town Car myself, or do I need a professional?

The physical replacement is straightforward for someone with moderate automotive DIY experience, involving removal of interior trim panels and connector disconnections. The challenge lies in post-installation programming — the PATS system requires dealer-level equipment or a pre-programmed unit from a supplier like Flagship One to function without additional programming costs.

What is the difference between a PCM and an ECM on this vehicle?

In the 2007 Lincoln Town Car, the terms are often used interchangeably because the powertrain control module integrates the engine control and transmission control functions into a single unit. The ECM portion handles engine management while the PCM encompasses both engine and transmission control responsibilities.

Will a used PCM from a junkyard work in my Town Car?

A used or salvage yard PCM will require programming to match your specific vehicle’s VIN and PATS configuration before it will allow the engine to start. This programming typically requires dealer equipment and may cost as much or more than obtaining a remanufactured unit that arrives pre-programmed.

What symptoms indicate the PCM is failing rather than another component?

Symptoms pointing to PCM failure include multiple seemingly unrelated trouble codes setting simultaneously, a no-start condition with all other starting system components verified good, stalling that persists after fuel system and sensor inspections, and scan tool communication issues where the diagnostic tool cannot establish a stable data link with the control module.

When your 2007 Lincoln Town Car requires a replacement control module, you have two primary paths forward: pursuing repair through a dealer or independent shop using OEM new parts, or opting for a remanufactured unit from a specialist supplier like Flagship One. Remanufactured units undergo rigorous testing and come VIN-programmed to your specific vehicle, eliminating the PATS reprogramming steps that add time and expense to dealer repairs. The choice depends on your budget, timeline, and preference for new versus remanufactured components, but either path will restore your vehicle’s ability to start, run and drive properly.

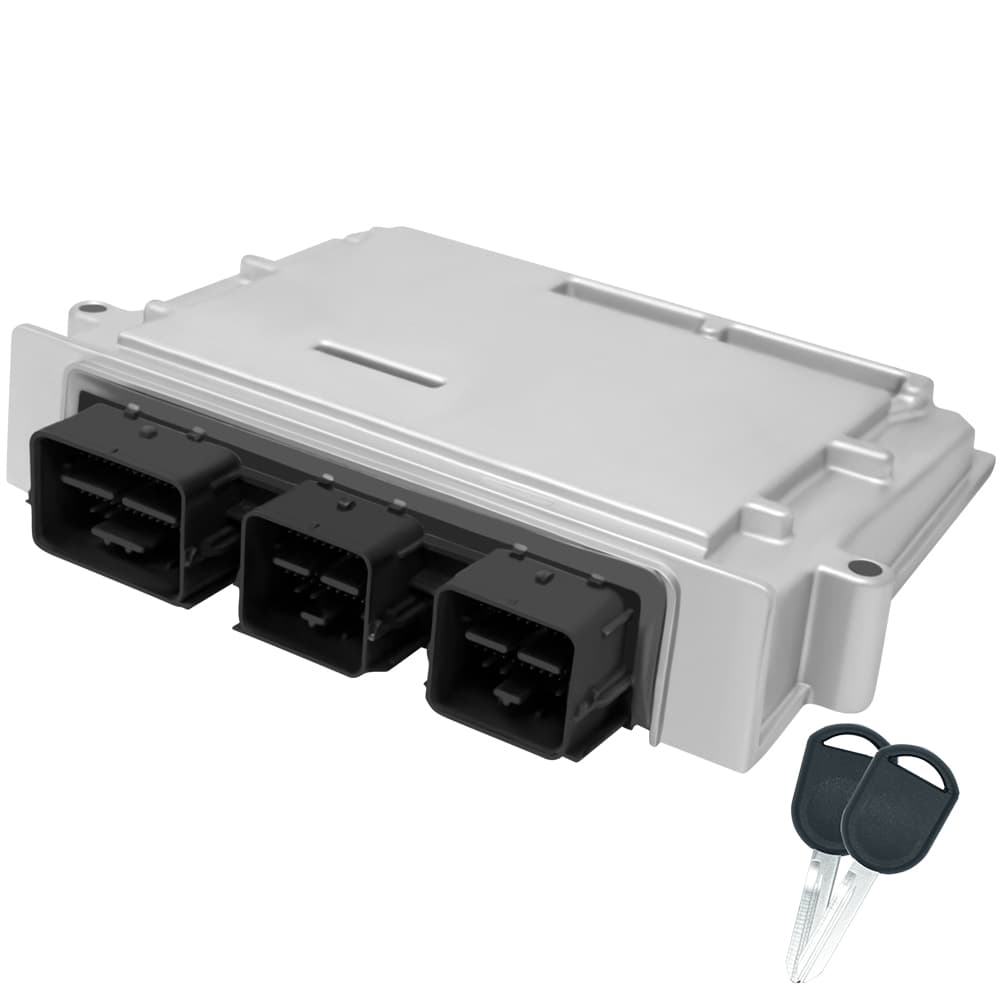

Flagship One stocks a refurbished, VIN-programmed PCM for the 2007 Lincoln Town Car with a lifetime warranty, free shipping and no core charge.

Final Thoughts

The 2007 Lincoln Town Car relies on its PCM and ECM to manage the 4.6L engine’s performance and the vehicle’s overall drivability. When this module fails, the result is often a vehicle that will not start or runs poorly with multiple trouble codes set. Understanding the replacement process, programming requirements, and your repair options helps you make informed decisions about getting your Town Car back on the road. Whether you choose dealer service or a pre-programmed remanufactured unit from Flagship One, addressing a failing control module promptly prevents further damage and gets you back behind the wheel.
